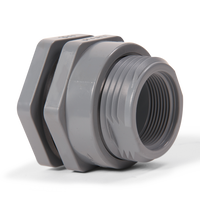

BFA2015SES | 1-1/2" CPVC Bulkhead Fitting w/EPDM standard flange gasket; socket x socket end connections | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BFA2015SES

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward BFA2015SES Documents

Datasheet More Info

Overview

Details for BFA2015SES

1-1/2" CPVC Bulkhead Fitting w/EPDM standard flange gasket; socket x socket end connections

BFA Series bulkhead fittings offer short pattern as well as longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC, PP and GFPP. Gaskets are FPM or EPDM. Large flange models available.

• Available in PVC, CPVC and PP in Long Pattern, PVC, CPVC, PP and GFPP in Short Pattern
• Extra Long Design for Thick Tank Walls
• Left-Hand Threads
• Rated at 150 PSI
• FPM or EPDM Gasket Seal
• Hex Body for One-Person Installation
• Full Buttress Threads
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	BFA2015SES
Brand	Hayward
A - Across Flats	3.25 in
B	4.00 in
Body Material	CPVC
C - Installation Hole Size	2.65 in
Category	Bulkhead Fittings
Class	BFA Series Bulkhead Fittings
D - Across Flats	3.25 in
E - Gasket Thickness	0.19 in
End Connection Type	Socket/Socket
End Connection	Socket x Socket
Material	CPVC
Model	Long Pattern - Standard Flange
Pipe Size	1-1/2 in
Pressure Rating	150 PSI
Sealing Material	EPDM
Seals	EPDM
Series	BFA Series Bulkhead Fittings
Size	1-1/2"
Sub Category	Bulkhead Fittings
SubCategory	BFA Series Bulkhead Fittings - Long Length with Standard Flange
Subtype	Bulkhead Fittings
Type	Bulkhead Fittings & Tank Accessories
