Overview
Details for RIBD01BDC-DOB

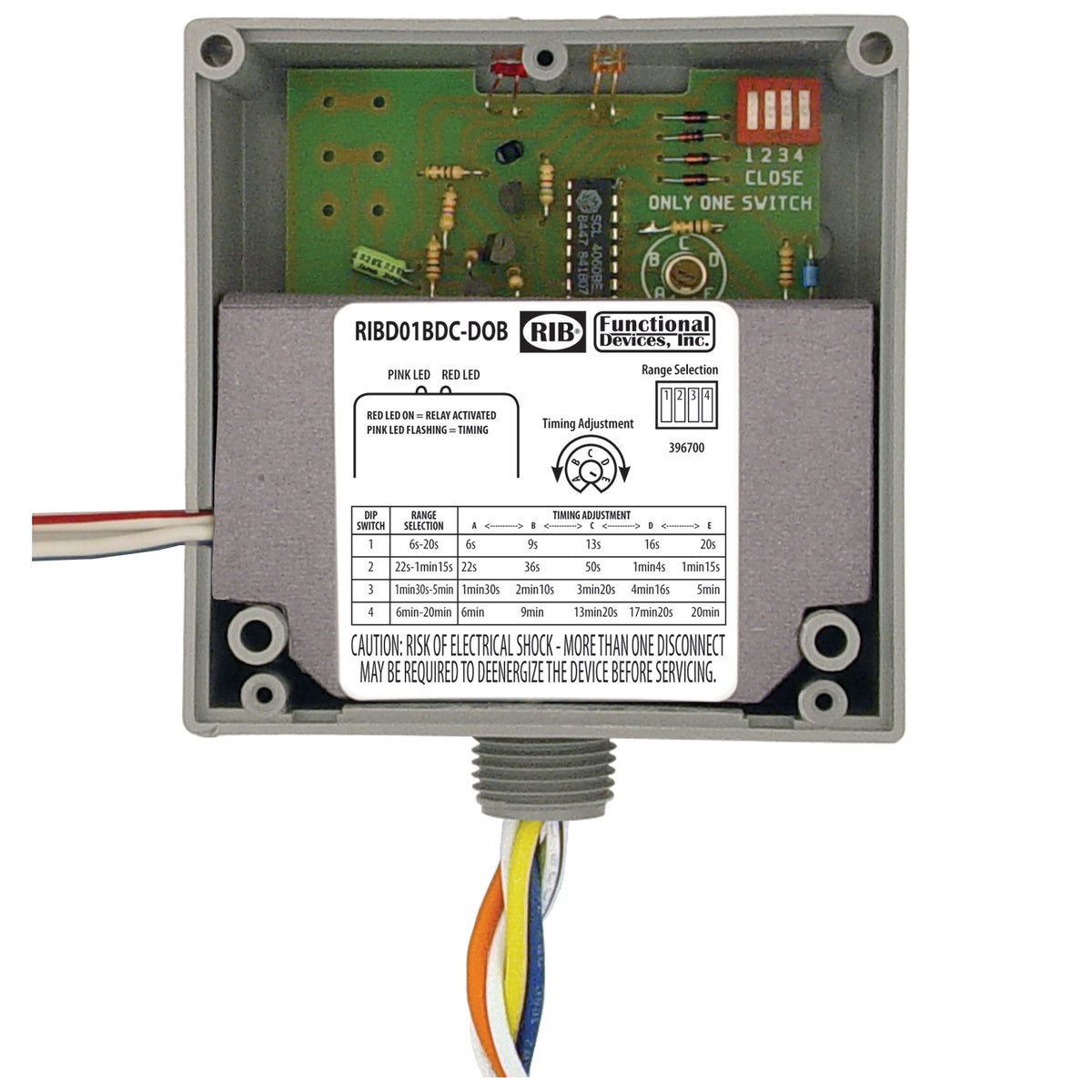

Enclosed Time Delay on Break Relay, CL 2 Dry Contact,120Vac, 20A SPDT
Specifications
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms after time delay
Relay Status: Red LED On = Activated
Time Delay Status: Pink LED FLASHING = Timing / Relay Deactivated
Timing Mode: Delay On Break
Timing Range: 6 seconds - 20 minutes
Timing Adjustment: 4 position DIP switch for range selection and single turn potentiometer for timing adjustment within range
Timing Tolerance: Switches 1& 2 = +10%
Timing Repeatability: Switches 3 & 4 = +5% +1%
Temperature Timing Variance: +1%
Voltage Timing Variance: +1%
Recycle Time: 750ms Maximum
Dimensions: 4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, C-UL, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: No
Specifications
Item Number | RIBD01BDC-DOB |
Brand | Functional Devices |
Coil | Dry |
Enclosed | Yes |
Track Mounted | No |
Type | Dry Contact |
