WPTN-A-C-05-100 | Multi-Jet plastic water meter with NSF Approval | 1-1/2" pipe size with 100 gallon pulse output | Dwyer
Multi-Jet plastic water meter with NSF Approval, 1-1/2" pipe size with 100 gallon pulse output

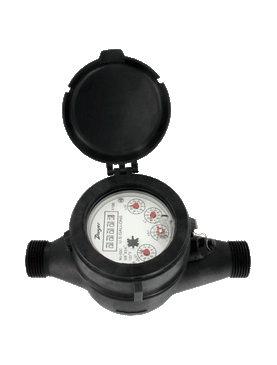

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WPTN-A-C-05-100
Documents and manuals
Dwyer WPTN-A-C-05-100 Documents
Overview
Details for WPTN-A-C-05-100
See catalog product page for full listing
Multi-Jet plastic water meter with NSF Approval | 1-1/2" pipe size with 100 gallon pulse output
SERIES WPTN MULTI-JET NSF CERTIFIED PLASTIC WATER METER
Lead Free, Economical Plastic Body, Pulse Output
The Series WPTN Multi-Jet NSF Certified Plastic Water Meter is a series of plasticmechanical water totalizing meters with NSF certification. The meters display the totalwater usage in gallons. They are available in a range of body sizes and include NPToptional couplings. The plastic body water meters can be used where standard brassis not compatible, in potable water applications, some corrosive environments, orwhere an economical water totalizer is desired.
Product Applications
- Potable water
- Commercial water usage
- Chiller water usage
- Low cost residential water measurement
- Agriculture (fertilizers, pesticides, and herbicides)
- Irrigation
- Remote water monitoring
- Plastic, NSF certified body is ideal for potable water applications
- Multi-jet design allows for accuracy in various flow ranges, even in low flowapplications
- Magnetically driven, hermetically sealed register does not leak or fog and iscompletely separated from the water
- Designed for long service life and maintenance-free operation
- Integral strainer protects meter from particulate damage
- Included coupling adapters simplify installation
- Pulsed output proportional to flow allows for remote flow totalization
Specifications
- Series
- WPTN MULTI-JET NSF CERTIFIED PLASTIC WATER METER
- Category/Type
- Flow
- Type
- Water Meters
- Series
- WPTN MULTI-JET NSF CERTIFIED PLASTIC WATER METER
- Service
- Water.
- Wetted Materials
- Body: PA; Couplings: PA; Measuring chamber: ABS plastic.
- Flow Range
- See model chart.
- Accuracy
- WPTN-A-X-XX: Minimum flow: ±3%; Nominal flow: ±1.5%.
- Temperature Limit
- 112°F (50°C).
- Pressure Limit
- 150 psi (10 bar).
- Pressure Drop
- See pressure drop curve.
- Totalizing Display Maximum
- See model chart on catalog page.
- Output Signal
- Pulse output with frequency proportional to flow rate.
- Pulse Options
- 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L; 1000 L per pulse*). See model chart on catalog page.
- Electrical Rating
- 0.01 A @ 24 VAC/DC.
- Electrical Connections
- 3.5mm² stranded lead wires; 4.5' (1.5 m) long.
- Mounting Orientations
- Horizontal with meter face facing up.
- Weight
- See dimension chart on catalog page.
- Approvals
- NSF/ANSI 61.
- *Consult Factory.
