WPTN-A-C-04-1 | Multi-Jet plastic water meter with NSF Approval | 1" pipe size with 1 gallon pulse output | Dwyer

Multi-Jet plastic water meter with NSF Approval, 1" pipe size with 1 gallon pulse output

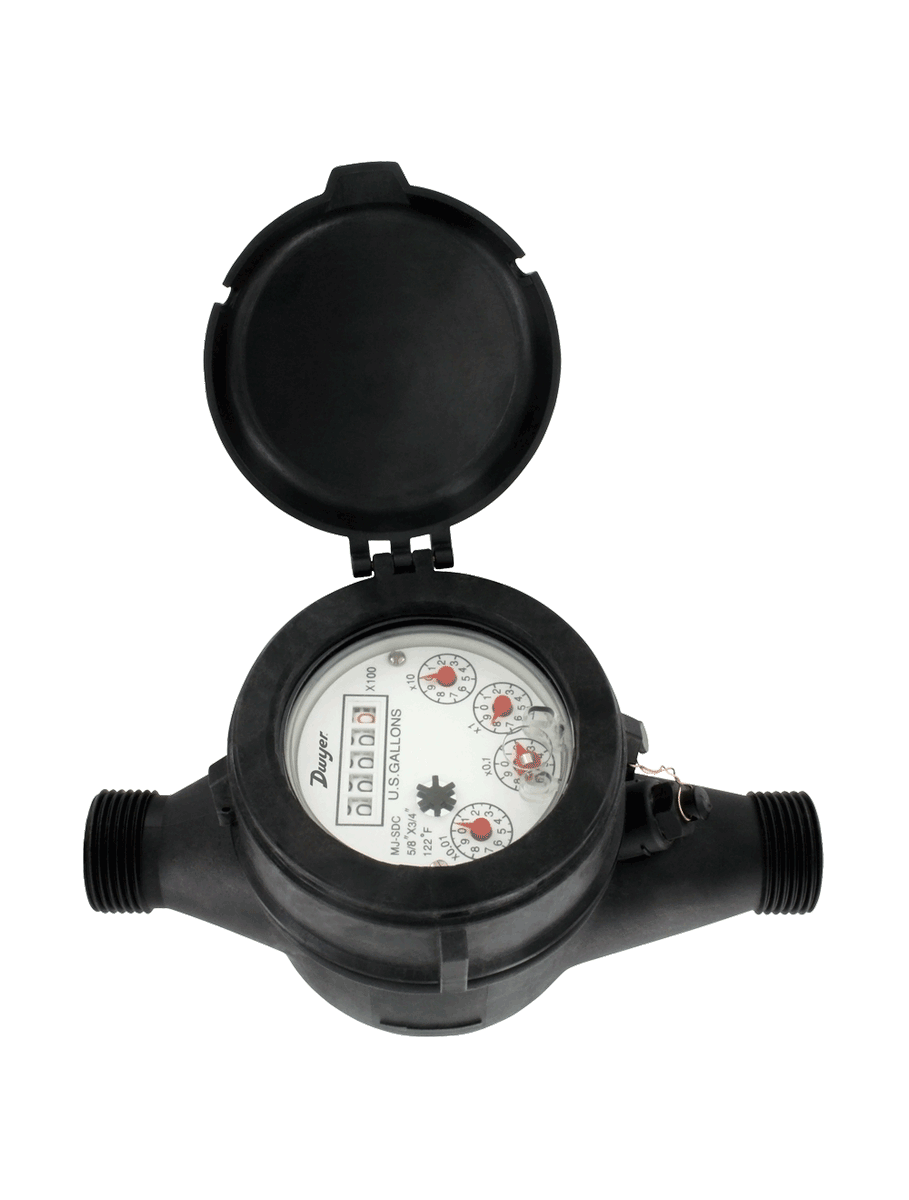

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WPTN-A-C-04-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer WPTN-A-C-04-1 Documents

Instruction Manual Series WPTN Catalog Page WPTN More Info

Overview

Details for WPTN-A-C-04-1

See catalog product page for full listing

Multi-Jet plastic water meter with NSF Approval | 1" pipe size with 1 gallon pulse output

SERIES WPTN MULTI-JET NSF CERTIFIED PLASTIC WATER METER

Lead Free, Economical Plastic Body, Pulse Output

The Series WPTN Multi-Jet NSF Certified Plastic Water Meter is a series of plasticmechanical water totalizing meters with NSF certification. The meters display the totalwater usage in gallons. They are available in a range of body sizes and include NPToptional couplings. The plastic body water meters can be used where standard brassis not compatible, in potable water applications, some corrosive environments, orwhere an economical water totalizer is desired.

Product Applications

Potable water
Commercial water usage
Chiller water usage
Low cost residential water measurement
Agriculture (fertilizers, pesticides, and herbicides)
Irrigation
Remote water monitoring

Plastic, NSF certified body is ideal for potable water applications
Multi-jet design allows for accuracy in various flow ranges, even in low flowapplications
Magnetically driven, hermetically sealed register does not leak or fog and iscompletely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer protects meter from particulate damage
Included coupling adapters simplify installation
Pulsed output proportional to flow allows for remote flow totalization

Specifications

Series: WPTN MULTI-JET NSF CERTIFIED PLASTIC WATER METER
Category/Type: Flow
Type: Water Meters
Series: WPTN MULTI-JET NSF CERTIFIED PLASTIC WATER METER
Service: Water.
Wetted Materials: Body: PA; Couplings: PA; Measuring chamber: ABS plastic.
Flow Range: See model chart.
Accuracy: WPTN-A-X-XX: Minimum flow: ±3%; Nominal flow: ±1.5%.
Temperature Limit: 112°F (50°C).
Pressure Limit: 150 psi (10 bar).
Pressure Drop: See pressure drop curve.
Totalizing Display Maximum: See model chart on catalog page.
Output Signal: Pulse output with frequency proportional to flow rate.
Pulse Options: 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L; 1000 L per pulse*). See model chart on catalog page.
Electrical Rating: 0.01 A @ 24 VAC/DC.
Electrical Connections: 3.5mm² stranded lead wires; 4.5' (1.5 m) long.
Mounting Orientations: Horizontal with meter face facing up.
Weight: See dimension chart on catalog page.
Approvals: NSF/ANSI 61.
: *Consult Factory.
