WNT-A-C-02 | Multi-Jet water meter | 5/8" x 3/4" pipe size | NSF Certified | brass body with 0.1 gal pulse output. | Dwyer

Multi-Jet water meter, 5/8" x 3/4" pipe size, NSF Certified, brass body with 0.1 gal pulse output.

Brand: DwyerSKU: WNT-A-C-02

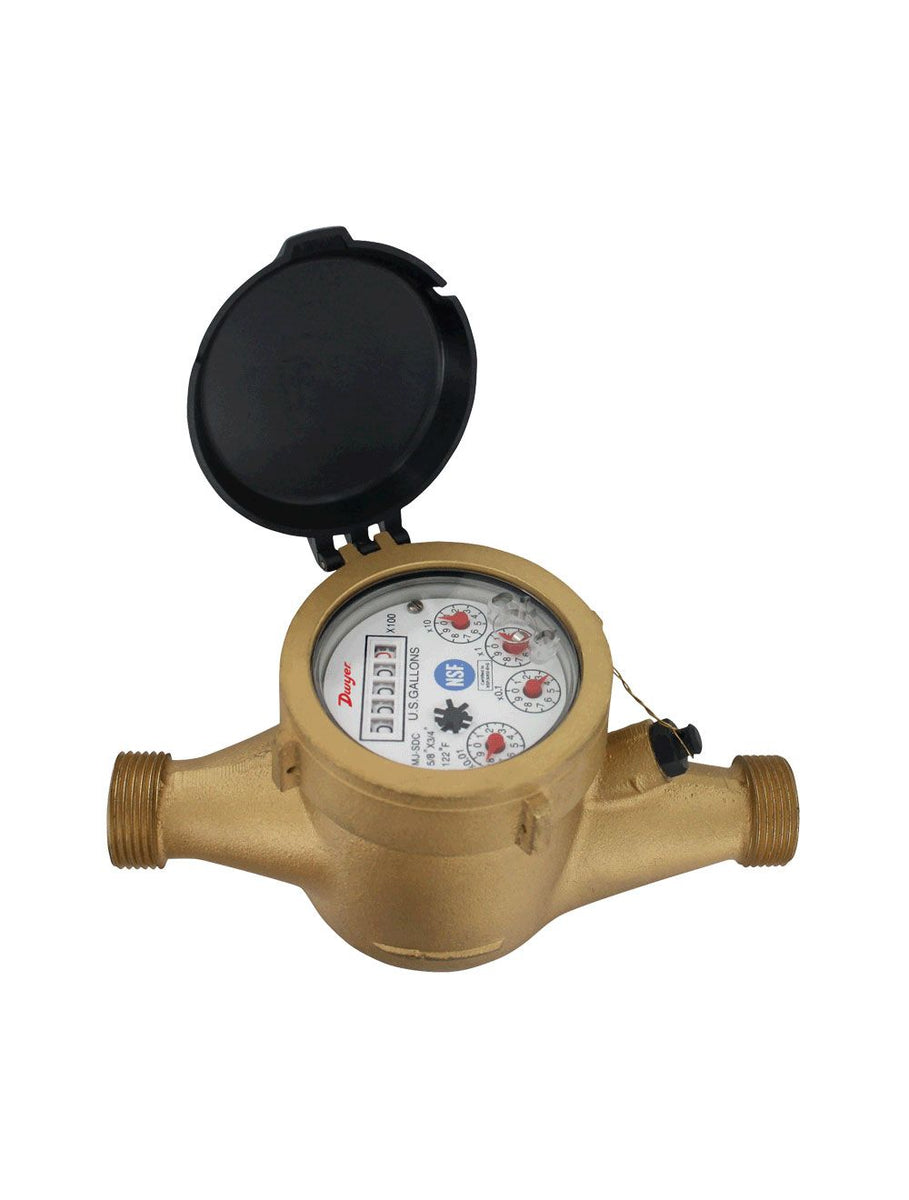

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WNT-A-C-02

Jump to: Overview & Specifications Reviews

Overview Details for WNT-A-C-02

See catalog product page for full listing

Multi-Jet water meter | 5/8" x 3/4" pipe size | NSF Certified | brass body with 0.1 gal pulse output.

SERIES WNT MULTI-JET NSF CERTIFIED BRASS BODY WATER METER

NSF Approved, Lead Free, Economical

The Series WNT Multi-Jet Brass Body Water Meter is a series of mechanical, watertotalizing meters that display the total water usage in gallons or cubic meter. They areavailable in a range of body sizes and include NPT or BSPT couplings. Its lead free,NSF certified body is ideal for potable water applications.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Potable water applications
Residential water measurement
Remote water monitoring

NSF/ANSI 61 approval makes it ideal for no lead requirements
Multi-jet design allows for simplicity and accuracy with side flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters
Pulsed output proportional to flow allows for remote flow totalization

Specifications

Series: WNT MULTI-JET NSF CERTIFIED BRASS BODY WATER METER
Category/Type: Flow
Type: Water Meters
Series: WNT MULTI-JET NSF CERTIFIED BRASS BODY WATER METER
Service: Water.
Wetted Materials: Body: ECO BRASS®; Couplings: ECO BRASS®; Measuring Chamber: ABS Plastic.
Flow Range: See model chart.
Accuracy: Transitional Flow: ±3%; Nominal Flow: ±1.5%.
Temperature Limit: 122°F (50° C).
Pressure Limit: 150 psi (10 bar).
Pressure Drop: See service manual.
Totalizing Display Maximum: See model chart.
Output Signal: Pulse output with frequency proportional to flow rate.
Pulse Options: 0.1 gal; 1 gal; 10 gal; 100 gal per pulse.
Electrical Rating: 0.01 A @ 24 VAC/DC.
Electrical Connections: Color-coded lead wires; 4.5' (1.5 m) long.
Mounting Orientation: Horizontal with register facing up.
Weight: See dimension chart.
Agency Approvals: NSF.
