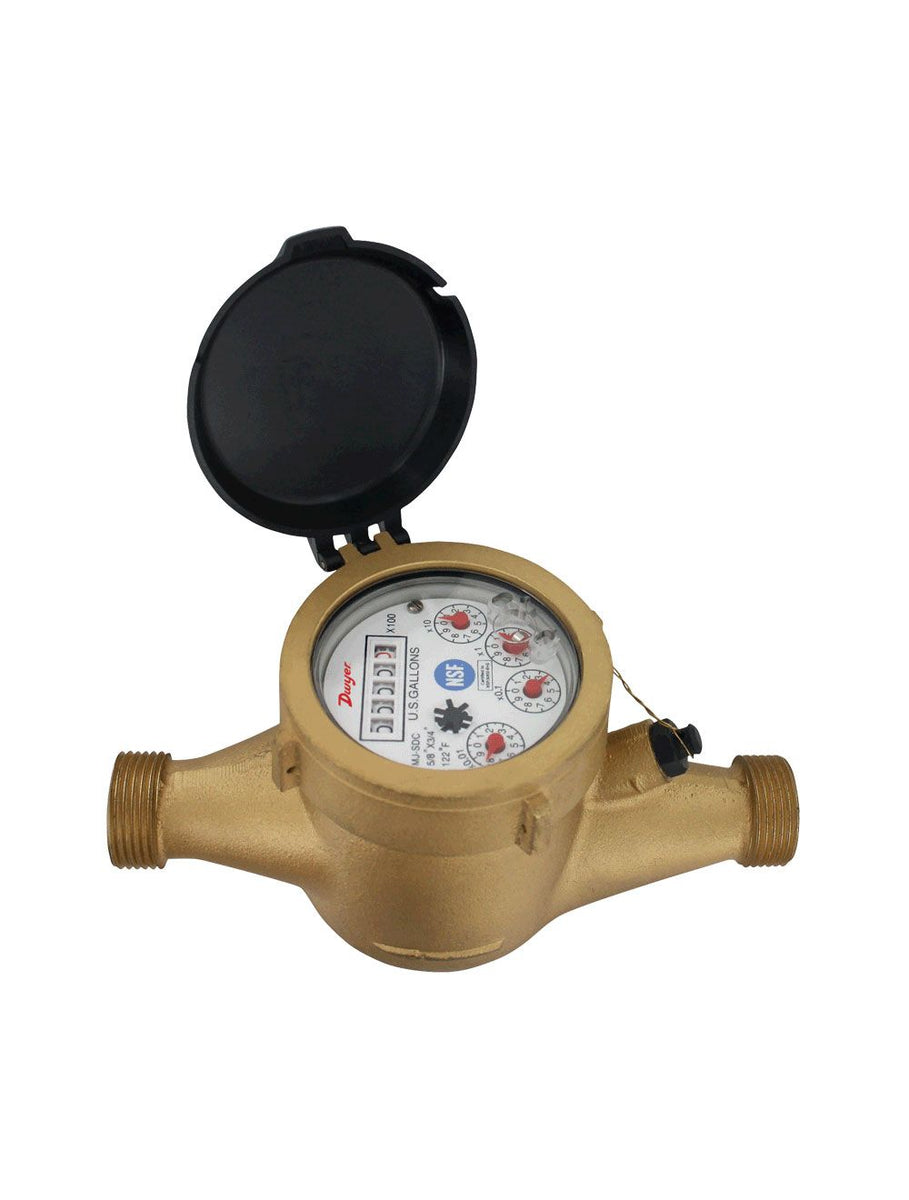

WNT-A-C-01-1 | Multi-Jet water meter | 5/8" x 1/2" pipe size | NSF Certified | brass body with 1 gal pulse output. | Dwyer
Multi-Jet water meter, 5/8" x 1/2" pipe size, NSF Certified, brass body with 1 gal pulse output.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WNT-A-C-01-1
Documents and manuals
Dwyer WNT-A-C-01-1 Documents
Overview
Details for WNT-A-C-01-1
See catalog product page for full listing
Multi-Jet water meter | 5/8" x 1/2" pipe size | NSF Certified | brass body with 1 gal pulse output.
SERIES WNT MULTI-JET NSF CERTIFIED BRASS BODY WATER METER
NSF Approved, Lead Free, Economical
The Series WNT Multi-Jet Brass Body Water Meter is a series of mechanical, watertotalizing meters that display the total water usage in gallons or cubic meter. They areavailable in a range of body sizes and include NPT or BSPT couplings. Its lead free,NSF certified body is ideal for potable water applications.
Product Applications
- Potable water applications
- Residential water measurement
- Remote water monitoring
- NSF/ANSI 61 approval makes it ideal for no lead requirements
- Multi-jet design allows for simplicity and accuracy with side flow ranges, even in low flow applications
- Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
- Designed for long service life and maintenance-free operation
- Integral strainer that protects meter from particulate damage
- Easy installation with included coupling adapters
- Pulsed output proportional to flow allows for remote flow totalization
Specifications
- Series
- WNT MULTI-JET NSF CERTIFIED BRASS BODY WATER METER
- Service
- Water.
- Wetted Materials
- Body: ECO BRASS®; Couplings: ECO BRASS®; Measuring Chamber: ABS Plastic.
- Flow Range
- See model chart.
- Accuracy
- Transitional Flow: ±3%; Nominal Flow: ±1.5%.
- Temperature Limit
- 122°F (50° C).
- Pressure Limit
- 150 psi (10 bar).
- Pressure Drop
- See service manual.
- Totalizing Display Maximum
- See model chart.
- Output Signal
- Pulse output with frequency proportional to flow rate.
- Pulse Options
- 0.1 gal; 1 gal; 10 gal; 100 gal per pulse.
- Electrical Rating
- 0.01 A @ 24 VAC/DC.
- Electrical Connections
- Color-coded lead wires; 4.5' (1.5 m) long.
- Mounting Orientation
- Horizontal with register facing up.
- Weight
- See dimension chart.
- Agency Approvals
- NSF.
