Documents: WMT2-A-C-04

WM2 Instruction Manual WMT2 Instruction Manual Series WM2 & WMT2 Catalog Page More Info

WMT2-A-C-04 | 1" brass multi-jet water meter (GPM) | with pulse output | 0.1 Gal/pulse. | Dwyer

1" brass multi-jet water meter (GPM), with pulse output, 0.1 Gal/pulse.

Brand: DwyerSKU: WMT2-A-C-04

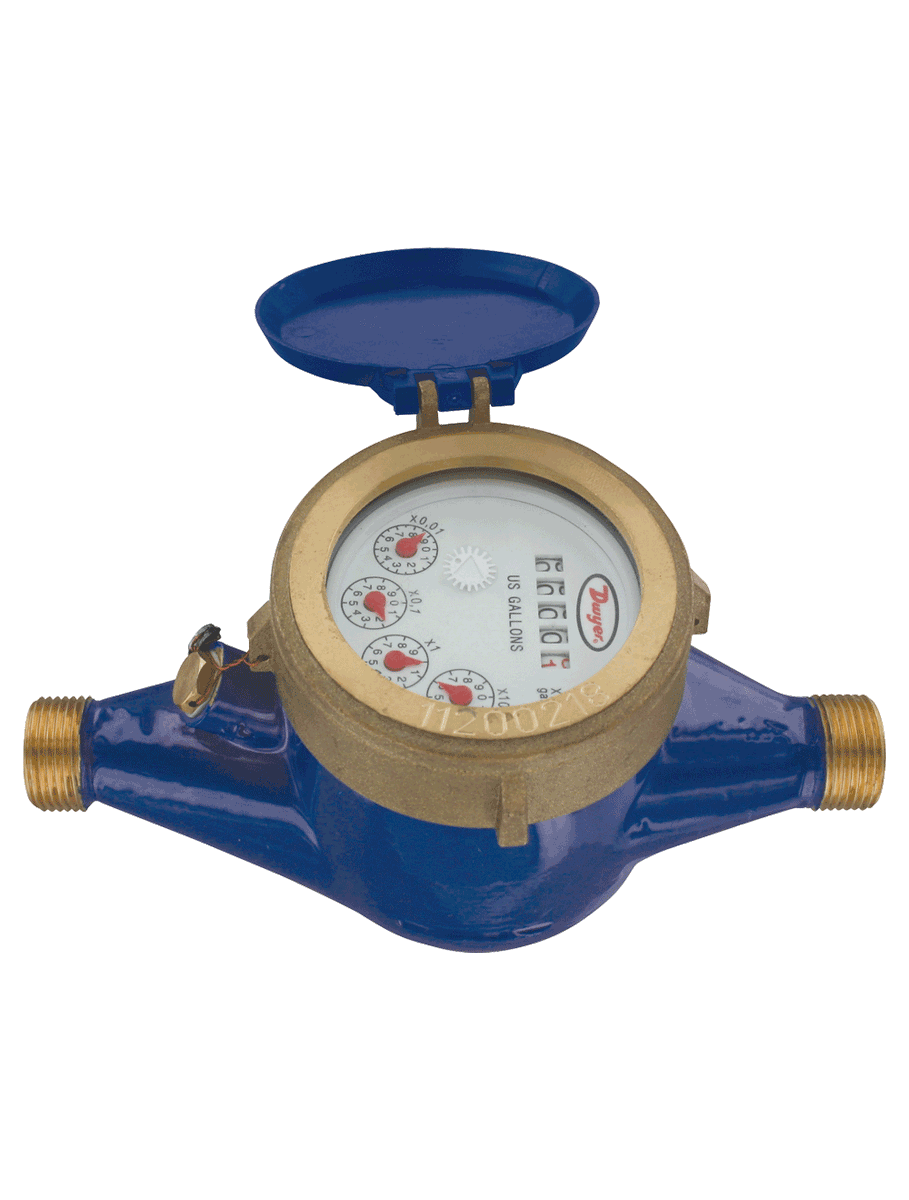

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WMT2-A-C-04

Jump to: Overview & Specifications Reviews

Overview Details for WMT2-A-C-04

See catalog product page for full listing

1" brass multi-jet water meter (GPM) | with pulse output | 0.1 Gal/pulse.

SERIES WM2 & WMT2 MULTI-JET WATER METER

Economical, Brass Body, Dry Dial

The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.

The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.

Not for potable water use, brass contains lead in excess of low lead limits.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Irrigation
Cooling systems
Filtration systems
Water monitoring

Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service live and maintenance-free operation, even under harsh conditions
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters

Specifications

Series: WM2 & WMT2 MULTI-JET WATER METER
Category/Type: Flow
Type: Water Meters
Series: WM2 & WMT2 MULTI-JET WATER METER
Service: Water.
Wetted Materials: Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
Flow Range: See model chart on catalog page.
Accuracy: Transitional flow: ±5%; Nominal flow: ±2%.
Temperature Limit: 104°F (40°C).
Pressure Limit: 232 psi (16 bar).
Totalizing Display Maximum: See model chart on catalog page.
Output Signal: Pulse output with frequency proportional to flow rate (WMT2 only).
Pulse Options: 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
Electrical Rating: 0.01 A @ 24 VAC/DC (WMT2 only).
Electrical Connections: Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
Mounting Orientation: Horizontal with the register face pointing up.
Weight: See dimension chart on catalog page.
