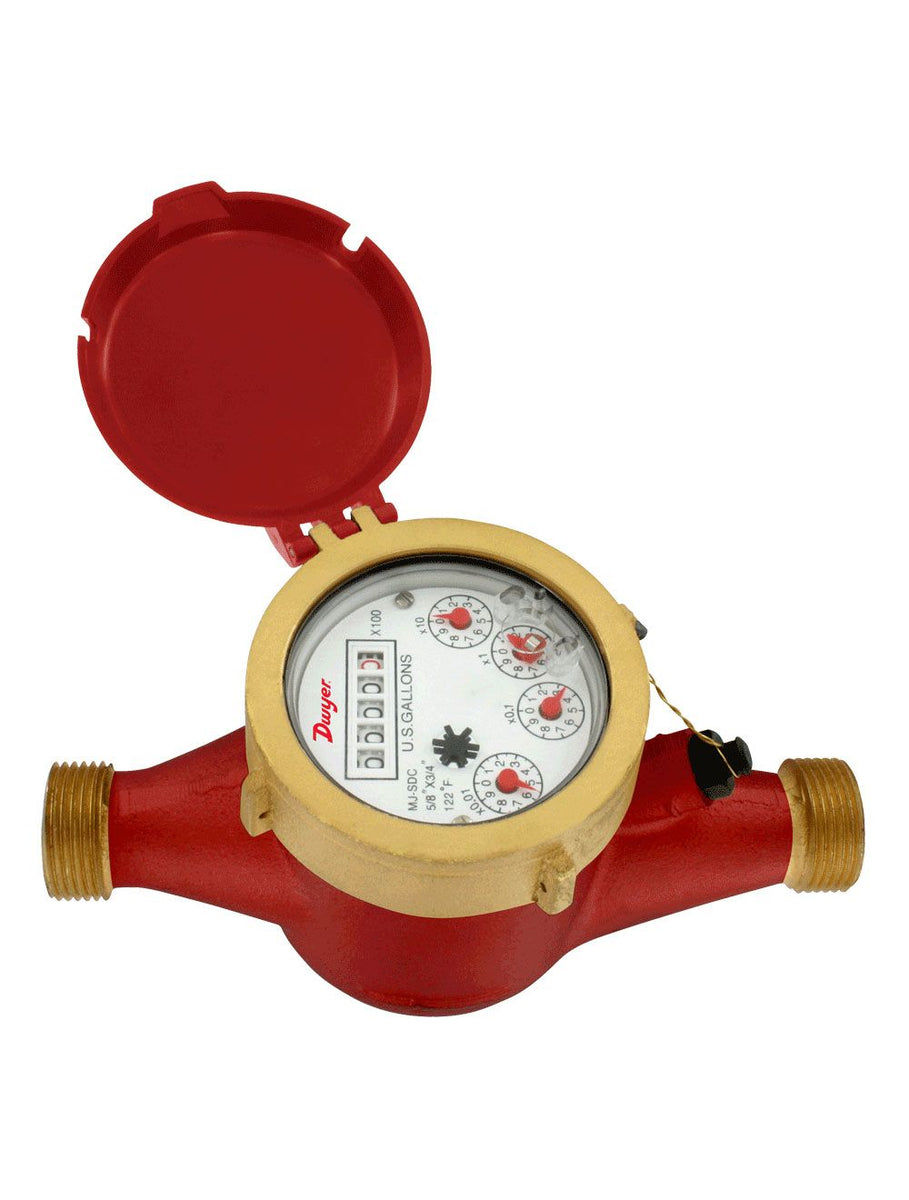

WMH-A-C-03 | Multi-Jet hot water meter | 3/4" short length pipe size | 0.1 gal pulse output. | Dwyer

Multi-Jet hot water meter, 3/4" short length pipe size, 0.1 gal pulse output.

Brand: DwyerSKU: WMH-A-C-03

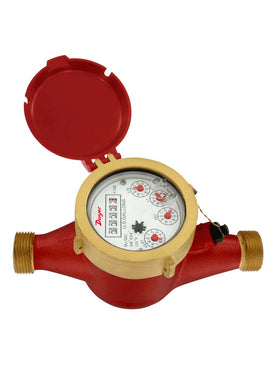

Dwyer | WMH-A-C-03
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WMH-A-C-03

Overview Details for WMH-A-C-03

See catalog product page for full listing

Multi-Jet hot water meter | 3/4" short length pipe size | 0.1 gal pulse output.

SERIES WMH MULTI-JET HOT WATER METER

High Temperature Threshold, Pulsed Output

The Series WMH High Temperature Multi-Jet Water Meters are a series of mechanical, water totalizing meters that display the total water usage in gallons with m3 options. They are available in a range of body sizes and include NPT or BSPT optional couplings. The high temperature resistant brass body is compatible in applications with high temperature water no suitable with standard brass water meters and maintains its accuracy.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • HVAC applications
  • Measuring total condenser water flow in residential, commercial and industrial applications
  • Remote hot water monitoring
  • High temperature threshold of 190°F (88°C) ideal for high temperature applications
  • Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
  • Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
  • Designed for long service life and maintenance-free operation
  • Integral strainer that protects meter from particulate damage
  • Easy installation with included coupling adapters
  • Pulsed output proportional to flow allows for remote flow totalization

Specifications

Series
WMH MULTI-JET HOT WATER METER
Category/Type
Flow
Type
Water Meters
Series
WMH MULTI-JET HOT WATER METER
Service
Water.
Wetted Materials
Body: Brass; Couplings: Brass; Measuring Chamber: Brass.
Flow Range
See model chart on catalog page.
Accuracy
WMH-A-X-XX: Transitional Flow: ±3%; Nominal Flow: ±1.5%.
Temperature Limit
190°F (88°C).
Pressure Limit
150 psi (10 bar).
Totalizing Display Maximum
See model chart on catalog page.
Output Signal
Pulse output with frequency proportional to flow rate.
Pulse Options
0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L; 1000 per pulse) See model chart on catalog page. (Consult factory for m3; BSPT units or additional pulse output options)
Electrical Rating
0.01A @ 24VAC/DC.
Electrical Connections
Color-coded lead wires; 4.5' (1.5 m) long.
Mounting Orientation
Horizontal with register facing up.
Weight
See dimension chart.
