WD3-LP-D2-30 | Line powered water leak detector with DPDT relay | 11 to 27 VAC/DC | no audible alarm | 30' prewired cable. | Dwyer

Line powered water leak detector with DPDT relay, 11 to 27 VAC/DC, no audible alarm, 30' prewired cable.

Brand: DwyerSKU: WD3-LP-D2-30

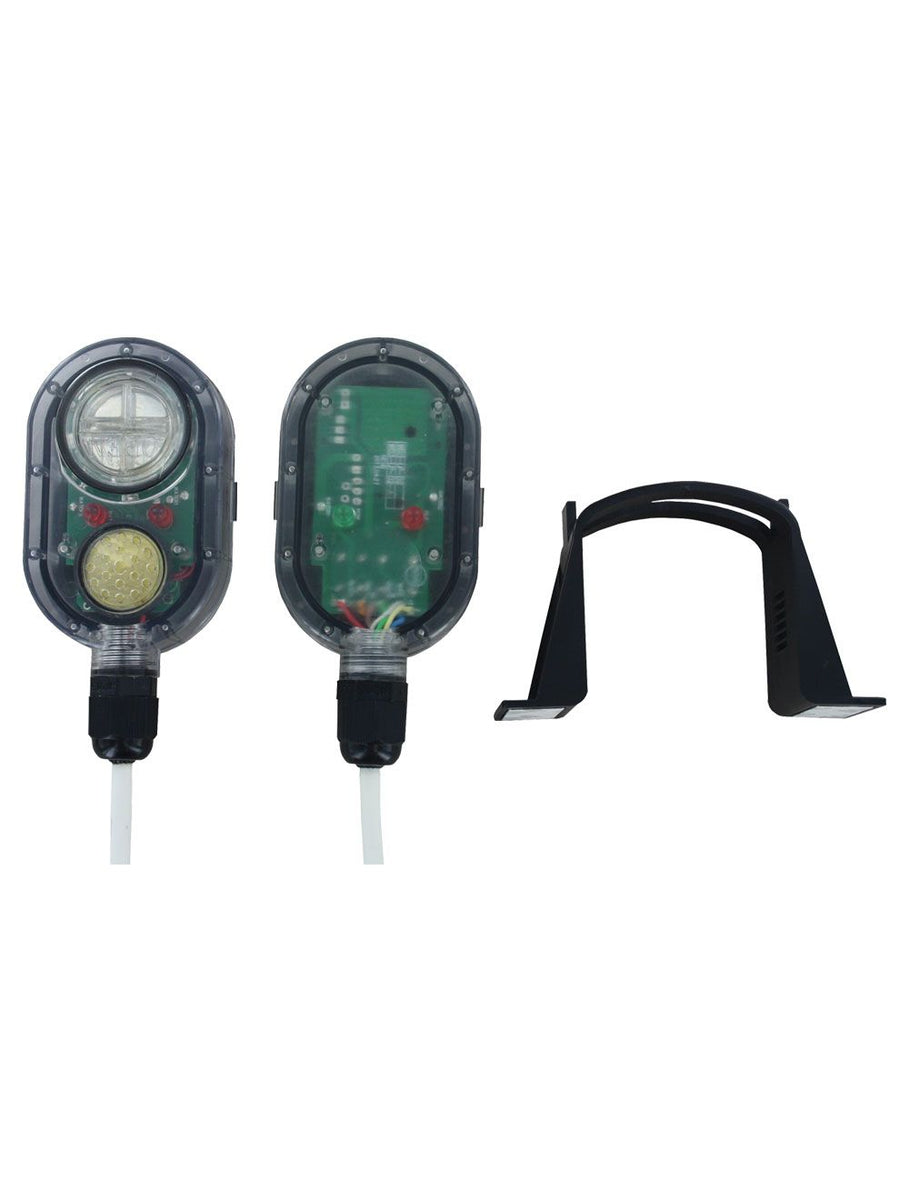

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WD3-LP-D2-30

Jump to: Overview & Specifications Reviews

Overview Details for WD3-LP-D2-30

See catalog product page for full listing

Line powered water leak detector with DPDT relay | 11 to 27 VAC/DC | no audible alarm | 30' prewired cable.

Series WD3 Water Leak Detector

Battery or External Powered, SPST or DPDT Relays

The Series WD3 Water Leak Detectors protect equipment from water damage by detecting the presence of water in drip pans in air handler units, under raised floors in data centers, or on floors around sump pumps and drains. Water is detected once it reaches a level that bridges the two conductive strips on the bottom of the housing. Depending on the model ordered, audible and visual alerts provide local indication of the alarm condition and an internal switch will give remote indication or control to prevent further build up of water.

For applications where power is not available, the Model WD3-BP-D1-A is battery powered. Otherwise, either AC or DC supply voltages can be used to power the water detector. The sensing height can be adjusted to as low as 1/32" using the included adjustable mounting bracket. The mounting bracket can attach to any flat surface by either using the attached adhesive strips or mounting screws.

Product Applications

AHU drip pans
Radiant floors
Data centers
Sump pumps
Drains

Audible and visual alerts provide local indication of the alarm condition and internal switch will give remote indication or control to prevent further buildup of water
Sensing height can be adjusted as low as 1/32" (0.79 mm) using the included adjustable mounting bracket
Mounting bracket can attach to any flat surface by either using the attached adhesive strips or mounting screws for easy installation

Specifications

Series: WD3 Water Leak Detector
Category/Type: Level
Type: Water Leak Detectors
Series: WD3 Water Leak Detector
Service: Water or conductive fluids.
Minimum Sensing Gap: 1/32".
Switch Type: Battery powered models: SPST NO SSR; External poweredmodels: DPDT relay.
Electrical Ratings: Battery powered model: Pilot duty rating 250 mA @ 24 VDC;External powered models: 1 A @ 24 VAC/DC.
Audible Alarm: At least 85 dB @ 1' distance (depends on model).
Visual Alarm: Red LED for water level; Yellow LED for low battery (batterypowered models only); Green LED for power condition (external powered modelsonly).
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements:: Battery powered model: 3V CR2450 lithium metal battery;installed functional; user replaceable; External powered models: 24 VAC (±10%) or11 to 27 VDC.
Power Consumption: Battery powered model: 0.9 mA steady state / 3.0 mA during alarm condition; External powered models: 30 mA steady state / 85 mA during alarm condition.
Battery Life: 5 years steady state / 48 hours during alarm condition.
Electrical Connections: 4.9' (1.5 m); 22 AWG; PVC; UL plenum rated cable.
Enclosure Material: ABS and polycarbonate with flammability classification UL 94 V-0.
Enclosure Rating: Audible alarm models: Watertight up to 3/4 of the body height;Non-audible alarm models: NEMA 6P (IP68) submersible.
Weight: 4.85 oz (137.5 g).
Agency Approvals: CE; RoHS.
