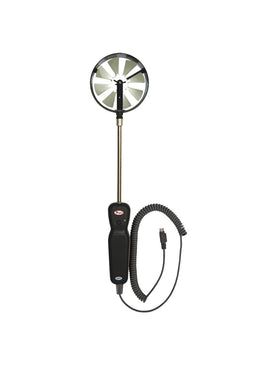

VP1 | 100 mm vane thermo-anemometer air velocity | temperature and humidity probe with coiled cable. | Dwyer

100 mm vane thermo-anemometer air velocity, temperature and humidity probe with coiled cable.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VP1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer VP1 Documents

Instruction Manual Model VP1 Catalog Page More Info

Overview

Details for VP1

See catalog product page for full listing

100 mm vane thermo-anemometer air velocity | temperature and humidity probe with coiled cable.

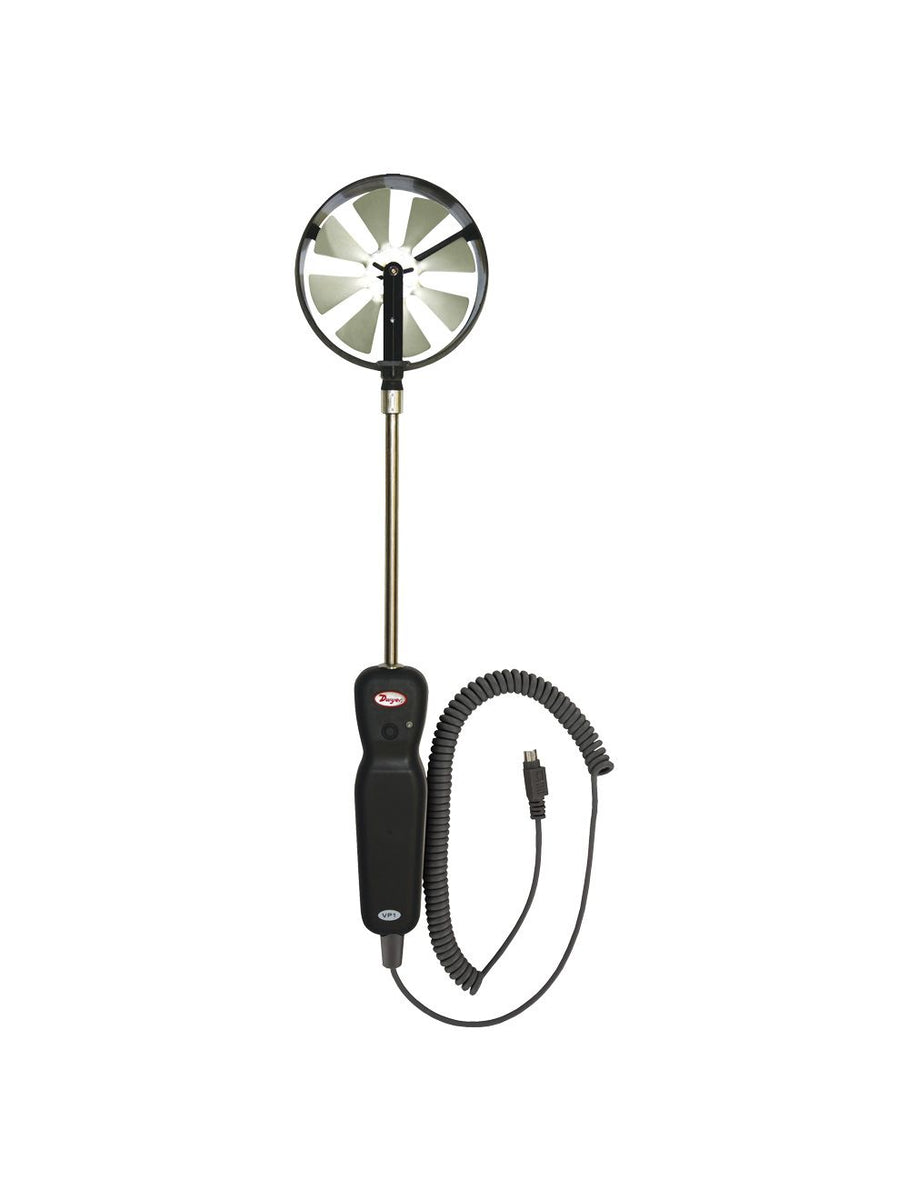

MODEL VP1 100 MM VANE THERMO-ANEMOMETER PROBE

Wired, Measures Velocity, Flow, Humidity, & Temperature

The Model VP1 100 mm Vane Thermo-Anemometer Probe measures air velocity, air flow, humidity, and temperature when combined with the Model 473B. By having a larger diameter, the rotating vane is able to measure velocities down to 50 fpm or 0.25 m/s. An arrow is molded into the vane housing to depict the flow direction.

Specifications

Service: Dry; clean air.
Temperature Limits: Process: -20 to 212°F (-29 to 100°C);Ambient: 5 to 125°F (-15 to 51°C).
Range: Air Velocity: 40 to 5000 fpm (0.2 to 25 m/s);Volumetric Air: 999;999 in selected flow units;Temperature: -20 to 212°F (-29 to 100°C);Relative Humidity: 0 to 100% RH.
Accuracy: Air Velocity: 0.25 to 10 m/s: ±1.5% of reading ±20 fpm (±0.1 m/s); 10 to 20 m/s:1.5% of reading ±40 fpm (±0.2 m/s); 20 to 25 m/s: ±1.5% of reading ±60 fpm(±0.3 m/s);Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C);Relative Humidity: ±2% @ 77°F (25°C) (10 to 90% RH); ±4% (0 to 10% RH and90 to 100%).
Response Time: Air Velocity and Air Volume: 1 s;Temperature and Relative Humidity: 1.5 s.
Probe Length: 8" (203 mm) insertion.
Vane Material: Anondized aluminum.
Weight: 15.2 oz (431 g).
Agency Approvals: CE; RoHS.
