VFCII-121 | Flowmeter | range 4-25 SCFM air. | Dwyer

Flowmeter, range 4-25 SCFM air.

Brand: DwyerSKU: VFCII-121

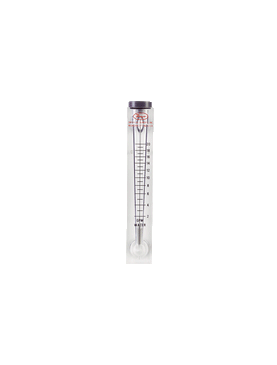

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFCII-121

Jump to: Overview & Specifications Reviews

Overview Details for VFCII-121

See catalog product page for full listing

Flowmeter | range 4-25 SCFM air.

Series VFC & VFCII Visi-Float® Acrylic Flowmeter

Used to Indicate Air or Water Flow, End Connections

The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging
Remediation
Osmosis skids

Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options

Specifications

Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C);
Accuracy: 2% of FS.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
