VFC-151-EC | Flowmeter | range 2-20 LPM water. | Dwyer
Flowmeter, range 2-20 LPM water.

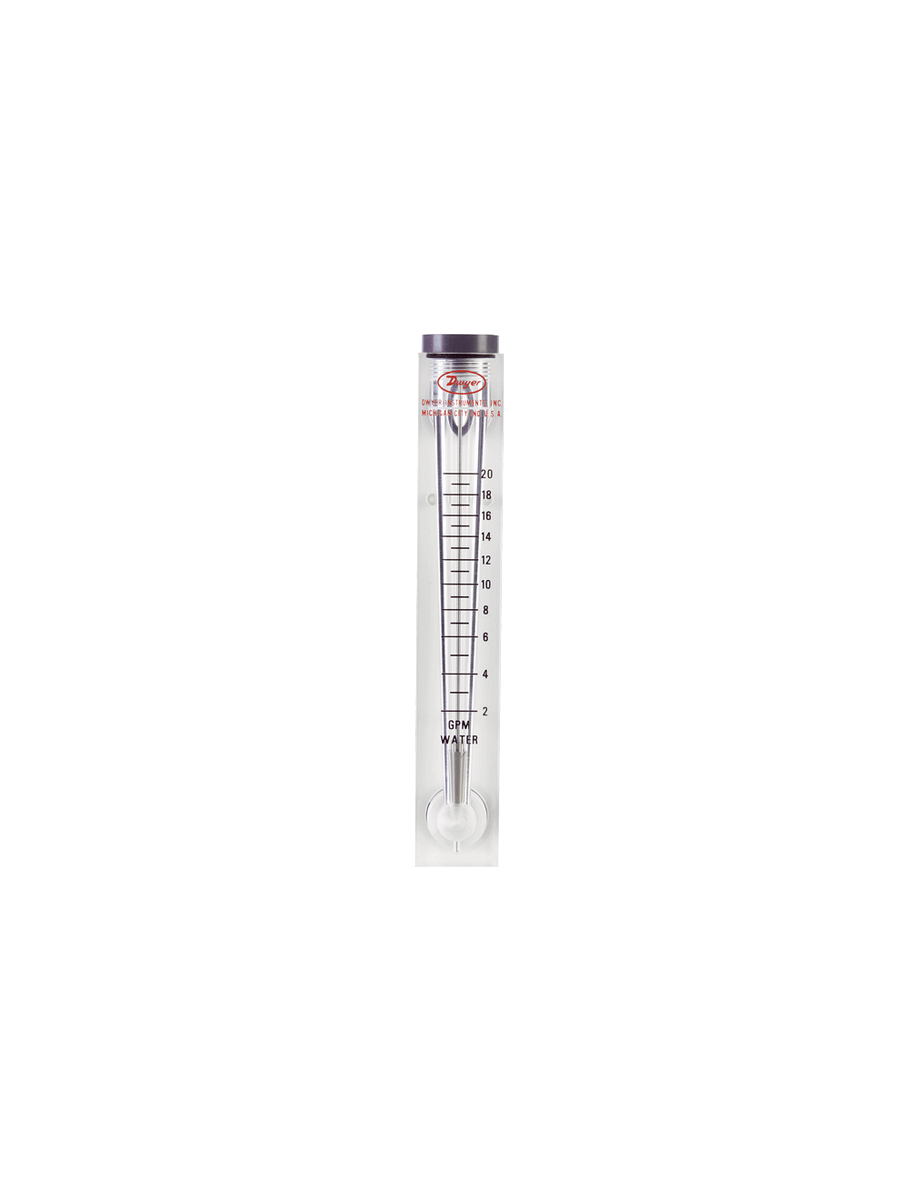

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VFC-151-EC
Documents and manuals
Dwyer VFC-151-EC Documents
Overview
Details for VFC-151-EC
See catalog product page for full listing
Flowmeter | range 2-20 LPM water.
Series VFC & VFCII Visi-Float® Acrylic Flowmeter
Used to Indicate Air or Water Flow, End Connections
The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Medical equipment
- Laboratory equipment
- Air samplers
- Gas analyzers
- Pollution monitors
- Chemical injectors
- Cabinet purging
- Remediation
- Osmosis skids
- Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
- White background allows for better visibility of the float increasing reading accuracy
- Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
- Precision machined tapered bore enables high repeatability
- Low installation costs with back or end connection options
Specifications
- Series
- VFC & VFCII Visi-Float® Acrylic Flowmeter
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- VFC & VFCII Visi-Float® Acrylic Flowmeter
- Service
- Compatible gases and liquids.
- Wetted Materials
- Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
- Temperature & Pressure Limits
- 100 psig (6.9 bar) @ 120°F (48°C);
- Accuracy
- 2% of FS.
- Process Connection
- VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
- Scale Length
- 5" typical length.
- Mounting Orientation
- Mount in vertical position.
- Weight
- 24 to 25 oz (.68 to .71 kg).
- Agency Approvals
- Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
