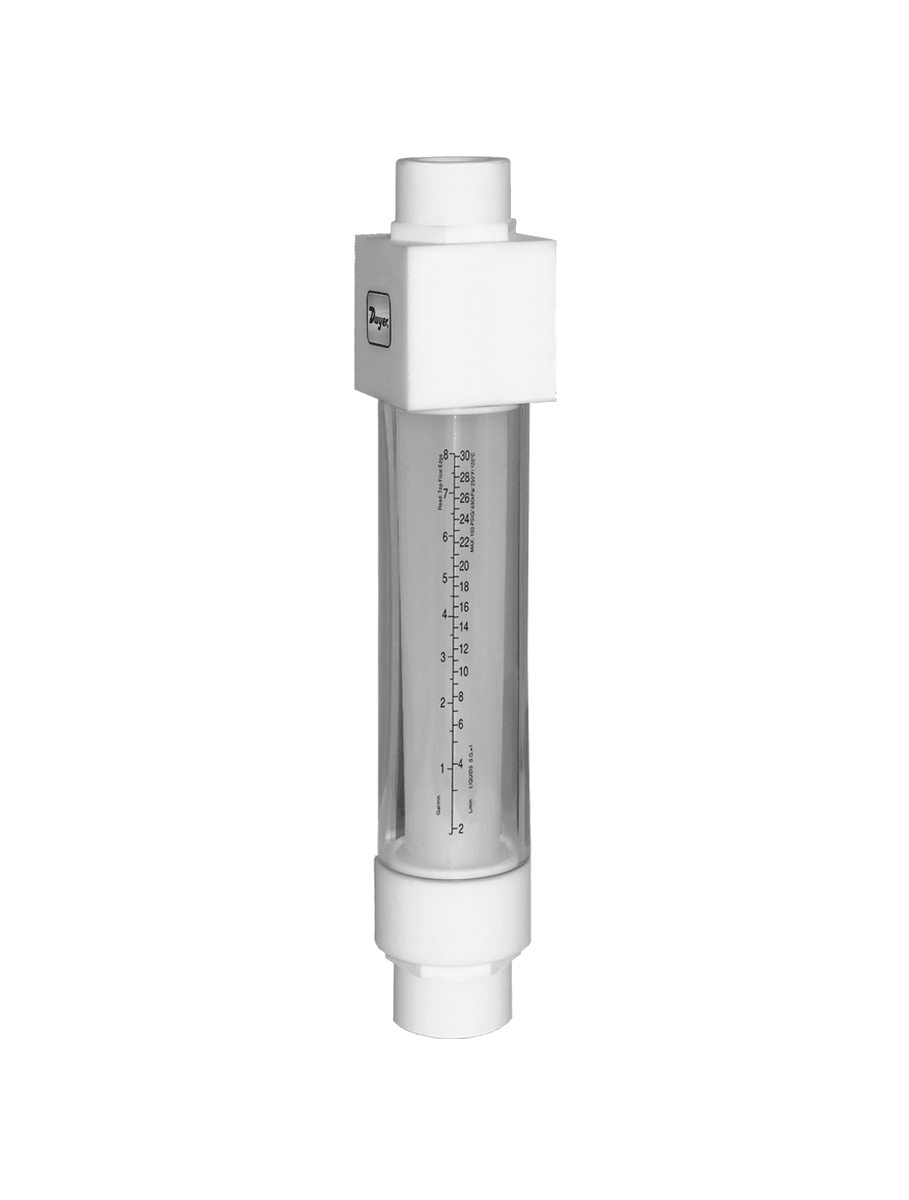

VAT-312 | Variable area flowmeter | 1/4" female NPT | flow rate 250 ml/min (3.91 GPH). | Dwyer
Variable area flowmeter, 1/4" female NPT, flow rate 250 ml/min (3.91 GPH).
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VAT-312
Documents and manuals
Dwyer VAT-312 Documents
Overview
Details for VAT-312
See catalog product page for full listing
Variable area flowmeter | 1/4" female NPT | flow rate 250 ml/min (3.91 GPH).
Series VAT Variable Area Fluoropolymer Flowmeters
In-Line, Chemically Inert
The Series VAT Variable Area Fluoropolymer Flowmeter is ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale for flow indication. Each unit is individually leak tested to a leak integrity rating of 1 x 10-7 sccs Helium or better.
Calibration Option is available in the Accessory tab.
Product Applications
- Chemical injectors
- Deionized water systems
- Chemically inert wetted components yield long life even in corrosive liquid applications
- All units are individually leak tested for no additional cost
Specifications
- Series
- VAT Variable Area Fluoropolymer Flowmeters
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- VAT Variable Area Fluoropolymer Flowmeters
- Service
- Compatible liquids.
- Wetted Materials
- Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.
- Temperature Limits
- 250°F (121°C).
- Pressure Limit
- 100 psig (6.9 bar).
- Accuracy
- ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
- Process Connections
- See model chart on catalog page.
- Leak Integrity
- 1 x 10-7 sccs of Helium.
- Scale
- Direct reading.
- Mounting
- Vertical; in-line.
