VAT-308 | Variable area flowmeter | 3/8" female NPT | flow rate 3000 ml/min (47.54 GPH). | Dwyer

Variable area flowmeter, 3/8" female NPT, flow rate 3000 ml/min (47.54 GPH).

Brand: DwyerSKU: VAT-308

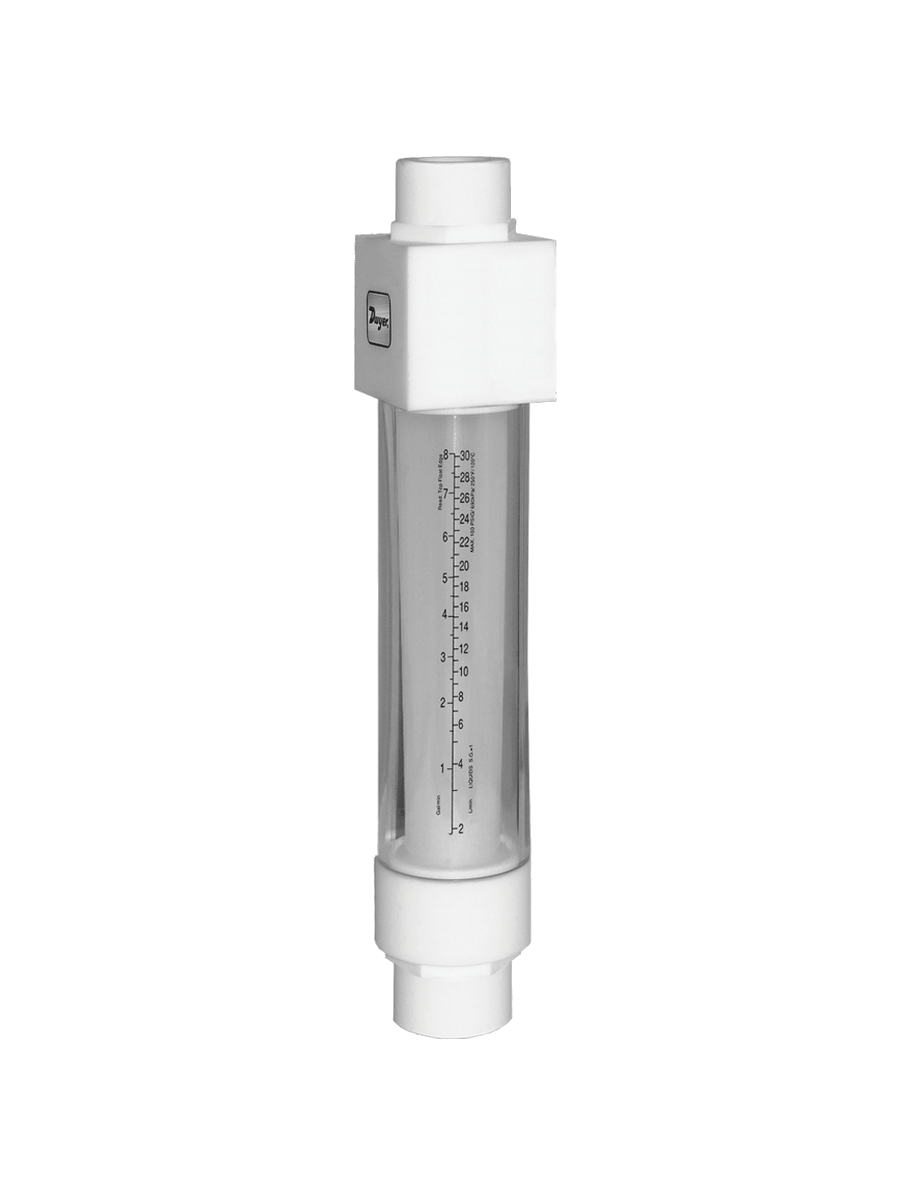

Dwyer | VAT-308
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VAT-308

Overview Details for VAT-308

See catalog product page for full listing

Variable area flowmeter | 3/8" female NPT | flow rate 3000 ml/min (47.54 GPH).

Series VAT Variable Area Fluoropolymer Flowmeters

In-Line, Chemically Inert

The Series VAT Variable Area Fluoropolymer Flowmeter is ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale for flow indication. Each unit is individually leak tested to a leak integrity rating of 1 x 10-7 sccs Helium or better.

Calibration Option is available in the Accessory tab.

Product Applications

  • Chemical injectors
  • Deionized water systems
  • Chemically inert wetted components yield long life even in corrosive liquid applications
  • All units are individually leak tested for no additional cost

Specifications

Series
VAT Variable Area Fluoropolymer Flowmeters
Category/Type
Flow
Type
Flowmeters
Series
VAT Variable Area Fluoropolymer Flowmeters
Service
Compatible liquids.
Wetted Materials
Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.
Temperature Limits
250°F (121°C).
Pressure Limit
100 psig (6.9 bar).
Accuracy
±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
Process Connections
See model chart on catalog page.
Leak Integrity
1 x 10-7 sccs of Helium.
Scale
Direct reading.
Mounting
Vertical; in-line.
