VA-K2 | 316 SS flowmeter kit. | Dwyer
316 SS flowmeter kit.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-K2
Documents and manuals
Dwyer VA-K2 Documents
Overview
Details for VA-K2
See catalog product page for full listing
316 SS flowmeter kit.
Series VA-K Variable Area Flowmeter Kit
Interchangeable Flow Tubes and Floats, 150 mm Universal Scales

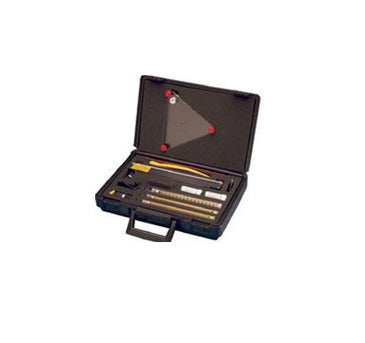

The Series VA-K Flowmeter Kits offer an economical means of acquiring diverse flow measurement capability. The kit includes a completely assembled flowmeter (available with aluminum or 316 SS end fittings) and three interchangeable 150 mm flow tubes. All flow tubes are supplied with a glass float installed. Spare 316 SS and Tantalum floats are included to extend flow capacities. Series VA-K kits also include a high flow valve cartridge, tripod base, tweezers, pushrod and locking tool for changing floats and flow tubes, correlation charts and plastic carrying case.
Product Applications
- Air and water analysis
- Film processing
- Chemical processing
- Gas chromatography
- Pharmaceutical
- Alcohol and tobacco production
- Pulp and paper
- Semiconductor industry
Specifications
- Series
- VA-K Variable Area Flowmeter Kit
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- VA-K Variable Area Flowmeter Kit
- Scales
- Universal 150 mm scales with correlation chart.
- Accuracy
- ±2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
- Repeatability
- ±0.25% of scale reading.
- Turn-down Ratio
- 10:1; 20:1 with combinations of two floats installed in meter.
- Maximum Operating Pressure
- 200 psig (13.8 bar).
- Maximum Operating Temperature
- 250°F (121°C).
- Mounting
- Vertical.
- Connection
- 1/8" female NPT.
- Flowtube
- Borosilicate glass.
- Float
- Glass; 316 stainless steel or tantalum.
- Float Stops
- PTFE.
- End Fittings
- Anodized Aluminum or 316 stainless steel.
- Front Shield
- Polycarbonate.
- Side Panels
- Black; anodized aluminum.
- O-rings
- Buna-N on aluminum models and fluoroelastomer on stainless steel models.
- Valve Orifice
- Acetal on aluminum models and PCTFE on stainless steel models.
