VA-K1 | Aluminum flowmeter kit. | Dwyer

Aluminum flowmeter kit.

Brand: DwyerSKU: VA-K1

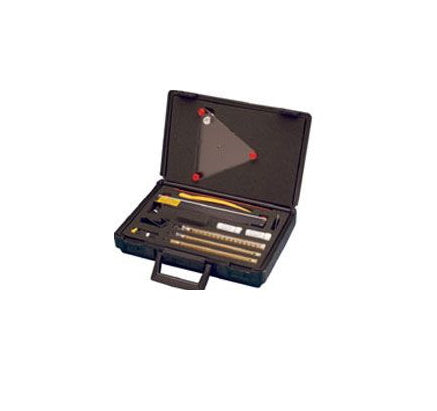

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VA-K1

Jump to: Overview & Specifications Reviews

Overview Details for VA-K1

See catalog product page for full listing

Aluminum flowmeter kit.

Series VA-K Variable Area Flowmeter Kit

Interchangeable Flow Tubes and Floats, 150 mm Universal Scales

The Series VA-K Flowmeter Kits offer an economical means of acquiring diverse flow measurement capability. The kit includes a completely assembled flowmeter (available with aluminum or 316 SS end fittings) and three interchangeable 150 mm flow tubes. All flow tubes are supplied with a glass float installed. Spare 316 SS and Tantalum floats are included to extend flow capacities. Series VA-K kits also include a high flow valve cartridge, tripod base, tweezers, pushrod and locking tool for changing floats and flow tubes, correlation charts and plastic carrying case.

Product Applications

Air and water analysis
Film processing
Chemical processing
Gas chromatography
Pharmaceutical
Alcohol and tobacco production
Pulp and paper
Semiconductor industry

Specifications

Series: VA-K Variable Area Flowmeter Kit
Category/Type: Flow
Type: Flowmeters
Series: VA-K Variable Area Flowmeter Kit
Scales: Universal 150 mm scales with correlation chart.
Accuracy: ±2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
Repeatability: ±0.25% of scale reading.
Turn-down Ratio: 10:1; 20:1 with combinations of two floats installed in meter.
Maximum Operating Pressure: 200 psig (13.8 bar).
Maximum Operating Temperature: 250°F (121°C).
Mounting: Vertical.
Connection: 1/8" female NPT.
Flowtube: Borosilicate glass.
Float: Glass; 316 stainless steel or tantalum.
Float Stops: PTFE.
End Fittings: Anodized Aluminum or 316 stainless steel.
Front Shield: Polycarbonate.
Side Panels: Black; anodized aluminum.
O-rings: Buna-N on aluminum models and fluoroelastomer on stainless steel models.
Valve Orifice: Acetal on aluminum models and PCTFE on stainless steel models.
