UTG | Ultrasonic Thickness Gage | Dwyer

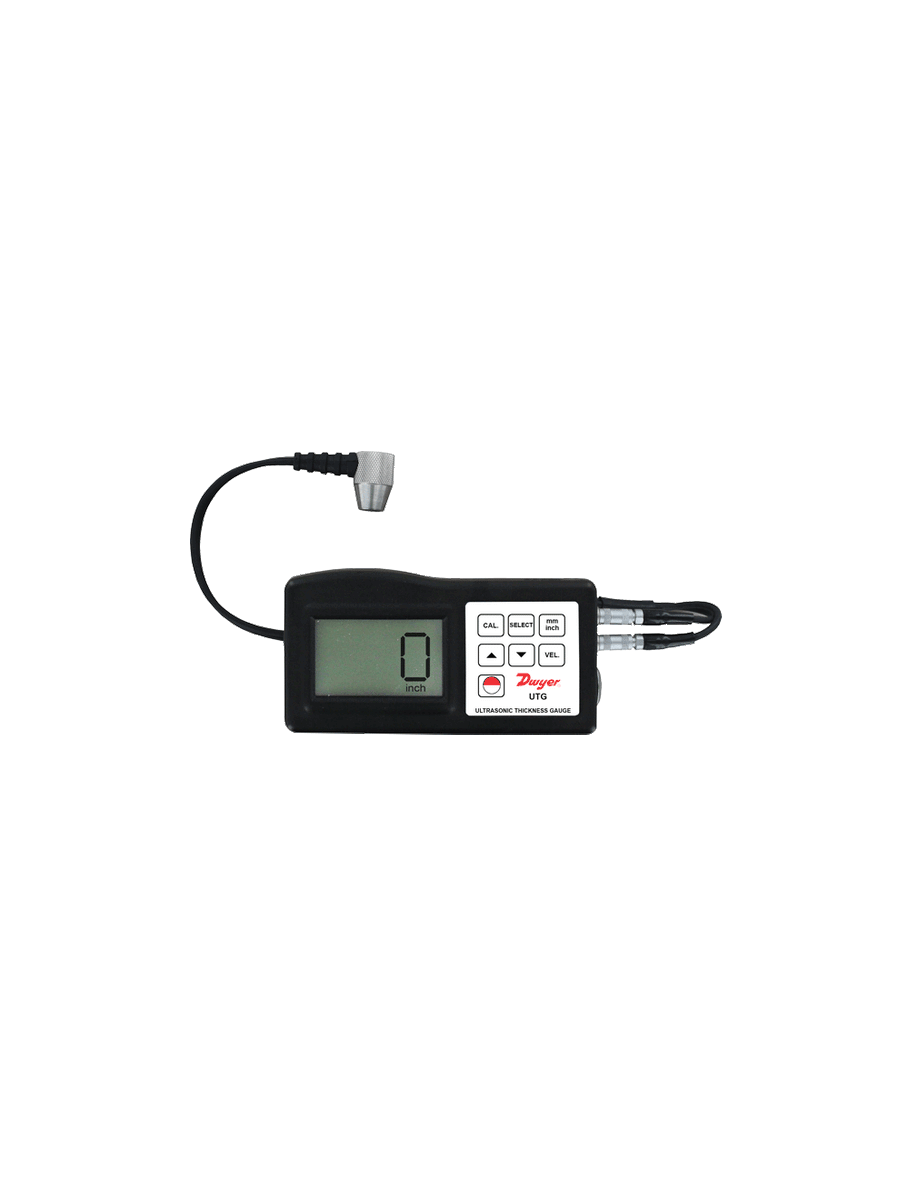

Ultrasonic Thickness Gage
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to UTG
Documents and manuals
Dwyer UTG Documents
Overview
Details for UTG
See catalog product page for full listing
Ultrasonic Thickness Gage
MODEL UTG ULTRASONIC THICKNESS GAGE
Ideal For Use with Ultrasonic Flow Transmitters, Adjustable Sound Velocity
The Model UTG Ultrasonic Thickness Gage measures the thickness of a variety ofmaterials. The UTG works on a variety of parallel surface material ranging from 0.05to 7.9" (1.2 to 200 mm).
Product Applications
- Pipe Thickness Measurement
- Finding Wall Thickness
- Monitoring Corrosion in Closed Vessels
- Industrial Applications
- Automotive
- HVAC
- Plumbing
- Non-invasive thickness measurement
- Reads in inches or millimeters and features an adjustable sound velocity to allow foran array of materials to be measured
- Allows the user to find the wall thickness of the pipe when programming an ultrasonictransmitter without cutting or removing a section of the pipe to measure it
- Ideal for monitoring corrosion in closed vessels such as boilers and chemical tanksand with any ultrasonic flow transmitter
Specifications
- Service
- Steel; cast iron; aluminum; red copper; brass; zinc; quartz glass; polyethylene; PVC; gray cast iron; nodular cast iron; other. Selectable option for special materials with known sound propagation rate.*
- Range
- 0.047 to 7.874" (1.2 to 200 mm).
- Accuracy
- ±0.5%.
- Resolution
- 0.001" / 0.1 mm.
- Sound Velocity
- 1118 to 20132 mph (500 to 9000 m/s).
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Humidity Limit
- < 80%.
- Display
- 4 digits; 0.394" (10 mm) LCD.
- Power Requirement
- (4) 1.5 V AAA alkaline batteries; not included; user replaceable.
- Weight
- 5.78 oz (164 g).
- Agency Approvals
- CE.
