ULSS-10 | 4.1' (1.25 m) measuring range | non-contact transmitter | SPST programmable relays | 1" NPT thread.(USB adapter necessary for calibration. One adapter can program multiple units.) | Dwyer

4.1' (1.25 m) measuring range, non-contact transmitter, SPST programmable relays, 1" NPT thread.(USB adapter necessary for calibration. One adapter can program multiple units.)

Brand: DwyerSKU: ULSS-10

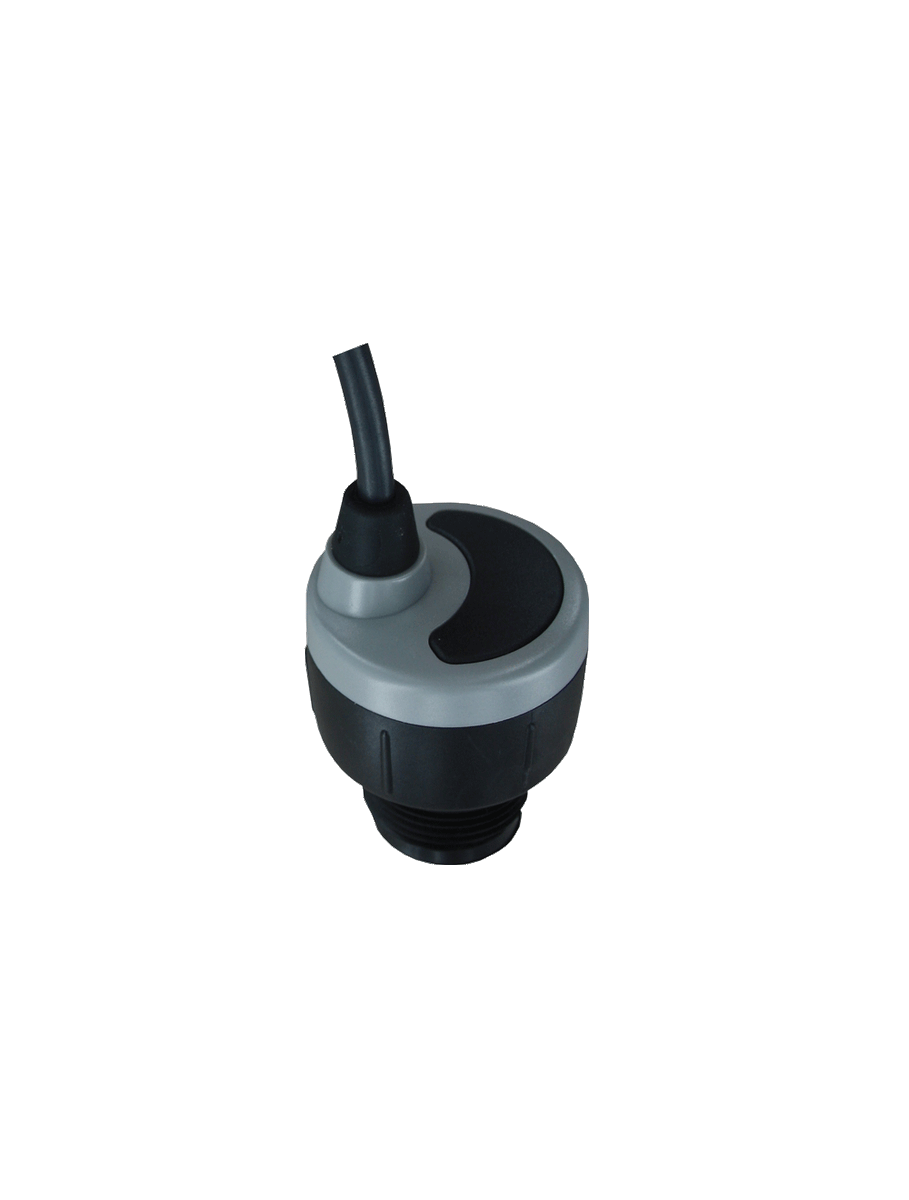

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ULSS-10

Jump to: Overview & Specifications Reviews

Overview Details for ULSS-10

See catalog product page for full listing

4.1' (1.25 m) measuring range | non-contact transmitter | SPST programmable relays | 1" NPT thread.(USB adapter necessary for calibration. One adapter can program multiple units.)

MODEL ULSS ULTRASONIC LEVEL SENSOR

4.1' (1.25 m) Measuring Range, Non-Contact Transmitter, SPST Programmable Relays

The Model ULSS Ultrasonic Level Sensor provides non-contact, continuous ultrasoniclevel measurement of fluids for short range applications. Ultrasonic technology paired withautomatic temperature compensation provides accurate and reliable measurements inalmost all conditions. The Model ULSS has failsafe logic that is easily configured to customapplications via free software removing the need for target calibration. Using the freesoftware, the Model ULSS can be programmed to transmit an output signal as well as setthe four relays for control applications. This rugged design comes with a NEMA 6Psubmersible enclosure rating to ensure a long lasting unit.

Product Applications

Water and wastewater
Pulp and paper processing
Sump and process tanks
Chemical processing
Food and beverage

Has a 4.1´ (1.2 m) measuring range with a 0.125" (3 mm) accuracy
Via free software, units can be programmed to transmit an output signal and operatefour relays for control applications
Provides reliable, accurate, and non-contact level measurement of compatibleliquids
Non-contact technology offers no moving parts to wear, jam, corrode, or get coatedlike contact technologies
Mapping software makes effective measuring surface only a 3" (76.2 mm) diametercolumn with no concerns of ladders, pipes, or other tank intrusions in the remainingsound cone
Ultrasonic technology paired with automatic temperature compensation providesaccurate and reliable measurements in almost all conditions
Fail-safe logic is easily configured to custom applications via free software removingthe need for target calibration
Full NEMA 6P submersible enclosure rating to ensure excellent product durability

Specifications

Service: Compatible fluids.
Wetted Materials: Sensor: PVDF; O-ring: FKM.
Ranges: 4.1' (1.25 m).
Accuracy: 0.125" (3 mm).
Resolution: 0.019" (0.5 mm).
Blind Zone: 2" (5 cm).
Beam Width: 2" (5 cm).
Temperature Limits: Process: 20 to 140°F (-7 to 60°C);Ambient: -31 to 140°F (-35 to 60°C).
Temperature Compensation: Automatic.
Pressure Limit: 30 psi (2 bar).
Power Requirement: 12 to 28 VDC.
Output Signal: 4 to 20 mA; 2-wire;Invert: 4 to 20 mA or 20 to 4 mA;Fail-safe: 4 mA; 20 mA; 21 mA; 22 mA; or hold last.
Loop Resistance: 400 Ω max.
Electrical Connections: 4' (1.2 m) 9 conductor shielded cable.
Contact Type: 4 SPST relays.
Contact Rating: 1 A max @ 28 VDC max.
Deadband: Selectable (no hysteresis; 1/4"; 1/2"; 1"; 1/2 cm; 1 cm; 2 cm; 5 cm ornot available).
Process Connection: 1" NPT; 1" BSPP (optional).
Enclosure Rating: NEMA 6P (IP68).
Enclosure Material: Polycarbonate; Gland: TPE.
Mounting Orientation: Vertical.
Memory: Non-volatile.
Failsafe: Contact: Power loss: Holds Last contact;Power on: Open; close; or last contact.
Programming: Free PC software download (USB adapter required).
Weight: 1 lb (0.45 kg).
Agency Approvals: CE.
