UBT-14 | 3/4-4" Ultrasonic heat meter with pulse output. | Dwyer

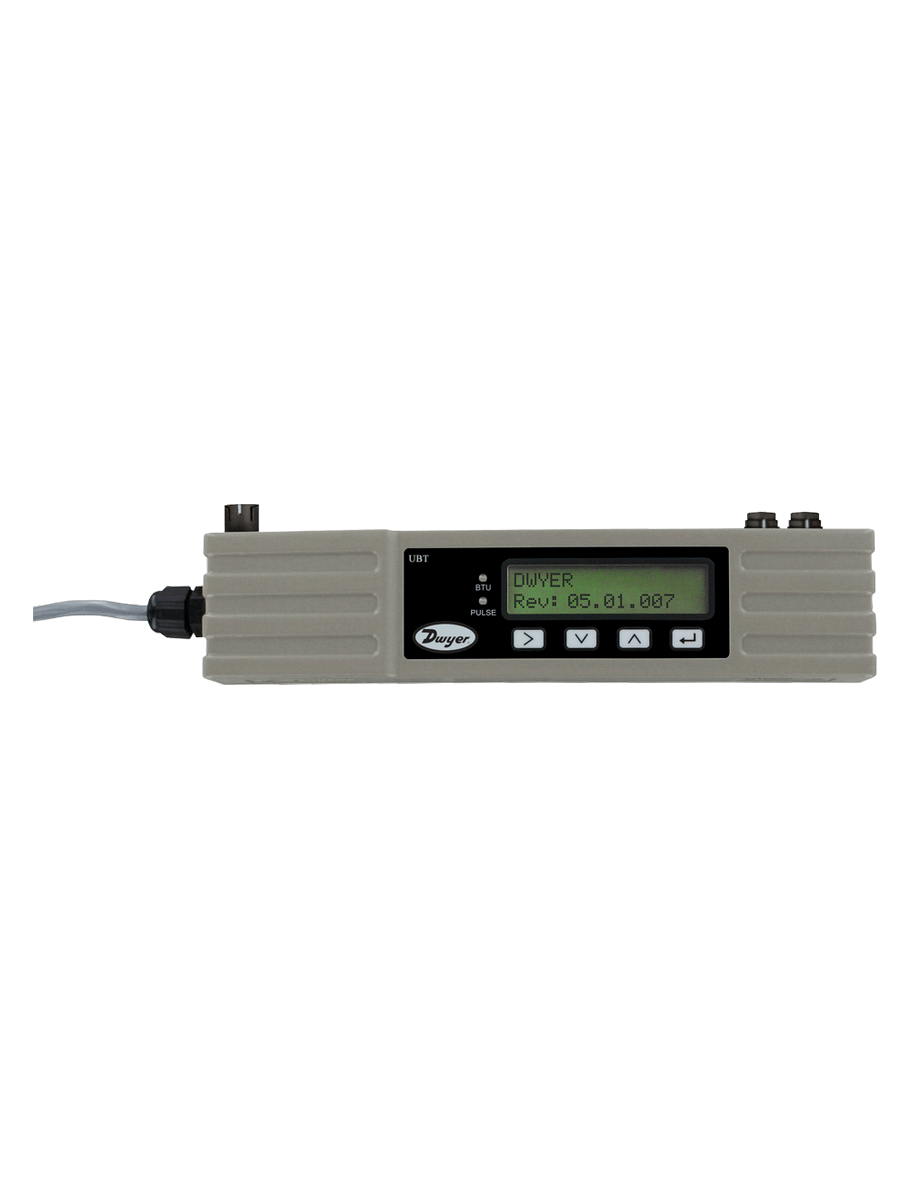

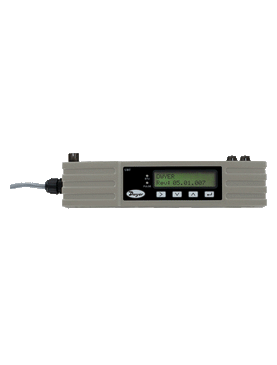

3/4-4" Ultrasonic heat meter with pulse output.

Brand: DwyerSKU: UBT-14

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to UBT-14

Jump to: Overview & Specifications Reviews

Overview Details for UBT-14

See catalog product page for full listing

3/4-4" Ultrasonic heat meter with pulse output.

Series UBT Clamp-On Ultrasonic Thermal Energy Meter

NEMA 4 Enclosure with Integral Mounting Bracket

The Series UBT Clamp-On Ultrasonic Thermal Energy Meter is an economicalclamp-on ultrasonic heat meter. It is an ultrasonic alternative to the traditional inlinethermal energy meters. The series uses temperature sensors for energy measurementand ultrasonic waves with time differentials for flow measurement.

Product Applications

Building services
Energy management
Heat/energy metering for energy management or building services utilizing chilledwater circuits

Save on installation costs with non-invasive pipe measurement
Simplified installation with all necessary components included, such as converter, sensor, cables and mounting accessories
Fit application requirements with compact and lightweight design, that can be easily installed, all in one clamp-on unit intended for homogeneous liquids that contain no air
Cut down evaluation time with easy-to-read text displaying both energy rate and totalized energy with pulse output and communication options with a convenient backlight for visual comfort

Specifications

Series: UBT Clamp-On Ultrasonic Thermal Energy Meter
Category/Type: Flow
Type: Flow Transmitters
Series: UBT Clamp-On Ultrasonic Thermal Energy Meter
Service: Clean water with <3% by volume of particulate content; or up to 30% ethylene glycol.
Range: 0.3 ft/s to 32 ft/s (0.1 m/s to 10 m/s).
Display: Backlit: 2.28" x 0.43" (58 mm x 11 mm); 2 line x 16 characters.
Accuracy: ±3% of flow reading for velocity rate >1 ft/s (0.3 m/s).
Power Requirements: 12 V to 24 V ±10% AC/DC at 7 watts per unit. Optional plug-in 12 V power supply.
Power Consumption: 7 W (DC) or 7 VA (AC) max.
Temperature Limits: Process: 32 to 185°F (0 to 85°C); Ambient: 32 to 122°F (0 to 50°C).
Outputs: Pulse: 1 opto-isolated MOSFET relay; 500 mA max; 166 pps max; 200 Hz max.
Humidity Limit: 90% RH at 122°F (50°C) max.
Communication: Pulse; optional Modbus® communication.
Enclosure Rating: IP54.
Enclosure Material: Plastic polycarbonate.
Repeatability: ±0.15% of measured value.
Electrical Connections: 16.4' (5 m) cable.
Flow Direction: Any.
Mounting Orientations: Any.
Weight: 1.10 lb (0.5 kg).
Agency Approvals: CE.
: ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Steel; SS; copper; or plastic.
Pipe Outside Diameter: 3/4 to 4" (25 to 115 mm); 5 to 7" (125 to 180 mm). Pipe size is dependent on pipe material and internal diameter.
Applicable Pipe Lining: None.
Pipe Wall Thickness: 0.02 to 0.36" (0.5 to 10 mm).
