TVA24012 | All fluoropolymer flowmeter | 125 mm scale | 3/4" female NPT | flow rate 7.93 GPM (30 L/min) water. | Dwyer

All fluoropolymer flowmeter, 125 mm scale, 3/4" female NPT, flow rate 7.93 GPM (30 L/min) water.

Brand: DwyerSKU: TVA24012

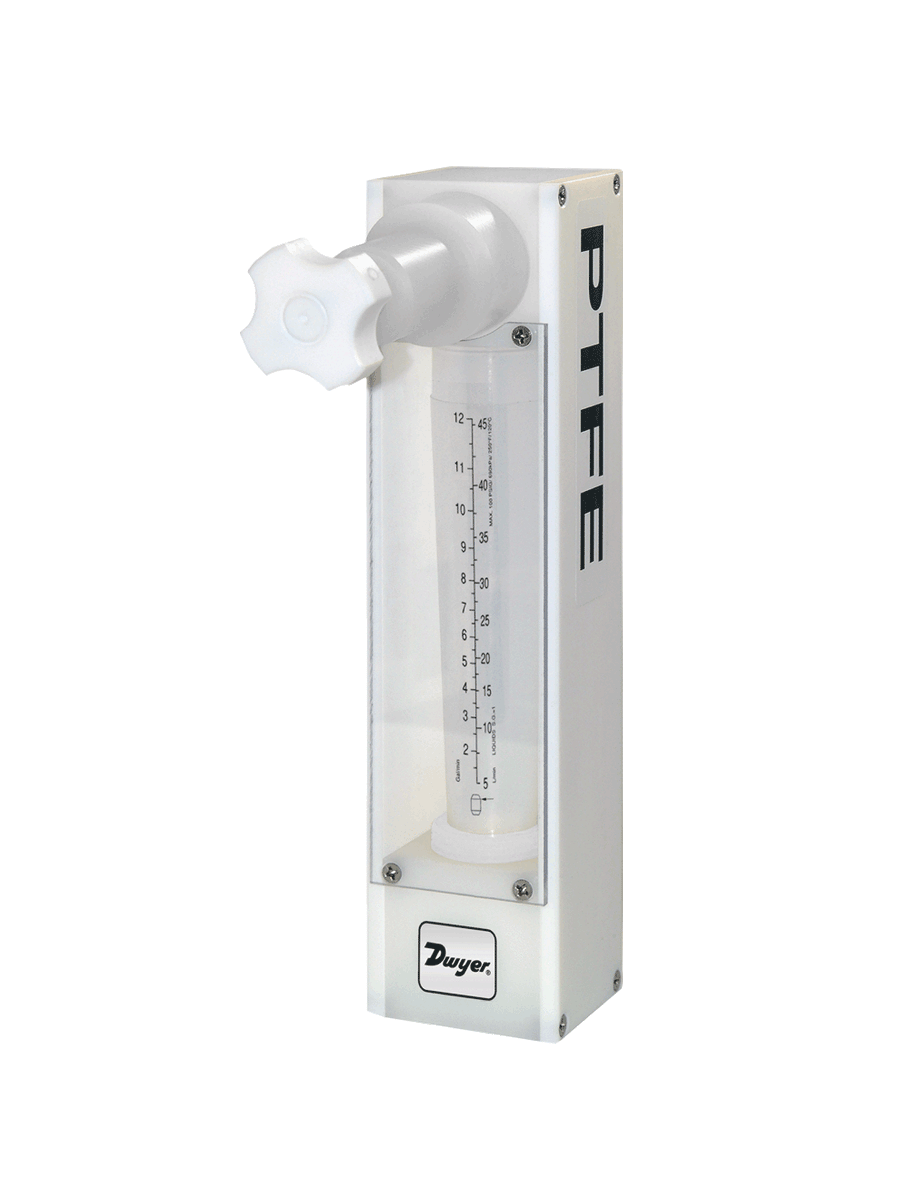

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TVA24012

Jump to: Overview & Specifications Reviews

Overview Details for TVA24012

See catalog product page for full listing

All fluoropolymer flowmeter | 125 mm scale | 3/4" female NPT | flow rate 7.93 GPM (30 L/min) water.

Series TVA All Fluoropolymer Flowmeters

75 mm and 125 mm, 10:1 Turndown, Back Connect, Corrosive Resistant

The Series TVA All Fluoropolymer Flowmeters are ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale graduations denoting a discrete flow rate.

Calibration Option available under Accessories.

Product Applications

Chemical injectors
Deionized water systems

Chemically inert wetted components yield long life even in corrosive liquid applications
Low installation costs with standard back process connections for easy panel mounting

Specifications

Series: TVA All Fluoropolymer Flowmeters
Category/Type: Flow
Type: Flowmeters
Series: TVA All Fluoropolymer Flowmeters
Service: Compatible liquids.
Wetted Materials: Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.
Temperature Limits: 250°F (121°C).
Pressure Limits: 100 psig (6.9 bar).
Accuracy: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
Repeatability: ±0.25%.
Leak Integrity: 1 x 10-7 sccs of Helium.
Scales: Direct reading; 75 mm or 125 mm lengths.
Turn-down Ratio: 10:1.
Mounting: Vertical.
