TVA1113 | All fluoropolymer flowmeter | 75 mm scale | 1/4" female NPT | flow rate 6.34 GPH (400 ml/min) water. | Dwyer
All fluoropolymer flowmeter, 75 mm scale, 1/4" female NPT, flow rate 6.34 GPH (400 ml/min) water.

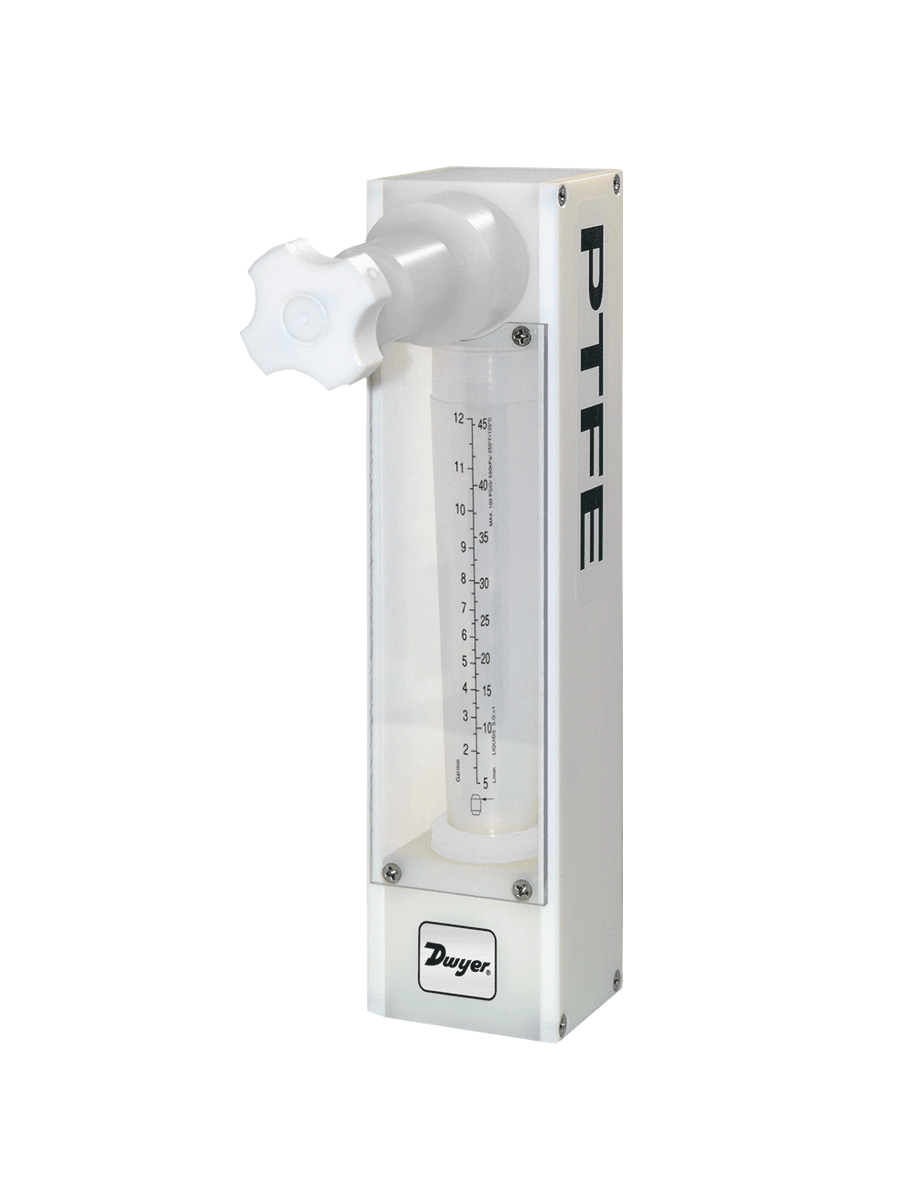

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TVA1113
Documents and manuals
Dwyer TVA1113 Documents
Overview
Details for TVA1113
See catalog product page for full listing
All fluoropolymer flowmeter | 75 mm scale | 1/4" female NPT | flow rate 6.34 GPH (400 ml/min) water.
Series TVA All Fluoropolymer Flowmeters
75 mm and 125 mm, 10:1 Turndown, Back Connect, Corrosive Resistant
The Series TVA All Fluoropolymer Flowmeters are ideal for high purity or corrosive liquid applications. This series of flowmeters features a 0 to 10 scale graduations denoting a discrete flow rate.
Calibration Option available under Accessories.
Product Applications
- Chemical injectors
- Deionized water systems
- Chemically inert wetted components yield long life even in corrosive liquid applications
- Low installation costs with standard back process connections for easy panel mounting
Specifications
- Series
- TVA All Fluoropolymer Flowmeters
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- TVA All Fluoropolymer Flowmeters
- Service
- Compatible liquids.
- Wetted Materials
- Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE.
- Temperature Limits
- 250°F (121°C).
- Pressure Limits
- 100 psig (6.9 bar).
- Accuracy
- ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
- Repeatability
- ±0.25%.
- Leak Integrity
- 1 x 10-7 sccs of Helium.
- Scales
- Direct reading; 75 mm or 125 mm lengths.
- Turn-down Ratio
- 10:1.
- Mounting
- Vertical.
