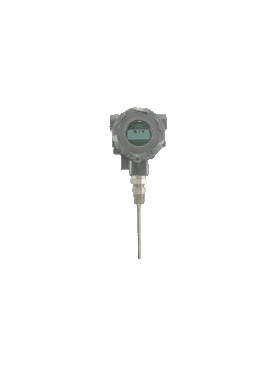

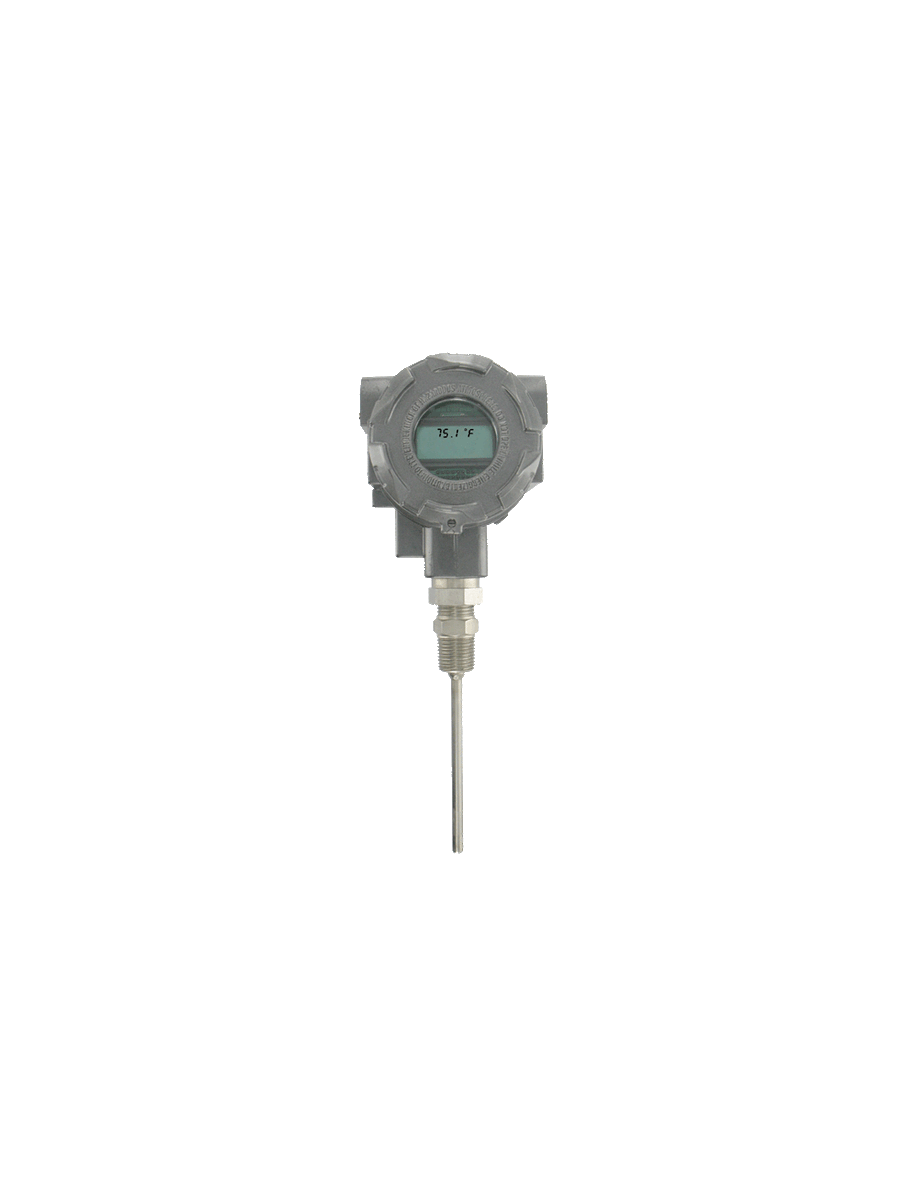

Series TTE Explosion-Proof RTD Temperature Transmitter
The Series TTE Explosion-Proof RTD Temperature Transmitter is the ideal product for hazardous temperature measurement applications. The TTE series has seven preprogrammed temperature ranges that are selectable via an internal dip switch. For those applications that need a custom range, the transmitter can be easily configured for any range between -30 to 250°F with a minimum span of 40°F. The span and zero can be quickly adjusted with a simple push button design. This unit has optional listings of FM for use in Class I, Division 1, Groups B, C and D, Class II, Division 1, Groups E, F and G and Class III atmospheres or ATEX (Directive 2014/34/EU) for 2813 II 2 G Ex db IIC T6...T4 Gb (-20°C ≤ Ta ≤ + 70°C), 2813 II 1 D Ex ta IIIC T111°C Da (-20°C ≤ Ta = + 70°C) and IECEx for Ex db IIC T6...T4 Gb (-20°C ≤ Ta ≤ + 70°C), Ex ta IIIC T111°C Da (-20°C ≤ Ta ≤ + 70°C). The compact housing allows for the transmitter to be mounted in virtually any application.
Product Applications
- Explosive process environments
- Offshore HVAC monitoring
- FM approved for Class I, Groups B, C, D; Class II, Groups E, F, G classified explosive environments
- Optional LCD
- Output span selected from seven common ranges or user determined
Specifications
- Series
- TTE Explosion-Proof RTD Temperature Transmitter
- Category/Type
- Temperature
- Type
- Transmitters
- Series
- TTE Explosion-Proof RTD Temperature Transmitter
- Temperature Sensor
- Pt1000; 0.00385 DIN.
- Output Temperature Ranges
- User selectable - any range between -30 to 250°F with a minimum span of 40°F.
- Temperature Limits
- Ambient: -4 to 158°F (-20 to 70°C); Process: -30 to 250°F (-34.4 to 120°C).
- Accuracy
- Transmitter: ±0.1% FS; Probe: ±0.3% FS.
- Thermal Drift Effects
- ±0.02%/°C max.
- Response Time
- 250 ms.
- Wetted Materials
- 316 SS.
- Process Connection
- 1/2" male NPT or 1/2 male BSPT.
- Conduit Connection
- 1/2" female NPT or M20.
- Probe Length
- 2" to 18" (depending on model).
- Pressure Limits
- 2000 psi (137.9 bar).
- Power Requirements
- 10 to 35 VDC.
- Output Signal
- 4 to 20 mA (two wire loop powered).
- Optional Display
- 2 lines X 8 character LCD.
- Enclosure Rating
- Weatherproof NEMA 4X (IP66) and Explosion-proof. Listed with FM for ClassI; Division 1; Groups B; C and D; and dust ignition-proof for Class II; Division 1;Groups E; F and G and Class III atmospheres. ATEX Certified: CE 2813 (Ex) II 2 G Ex db IIC T6...T4; Gb CE (Ex) 2813 II 1 D Ex ta IIIC T111°C Da;T6 Process Temp =80°C; Temperature Class T5 Process Temp =95°C; TemperatureClass T4 Process Temp =120°C as defined on nameplate. EU-type Cerificate No.:EMT17ATEX0021 X. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2015; EN 60079-31:2014. IECEx Certified: For Ex db IIC T6 Gb; Ex ta IIIC T111°C Da; Process Temp =80°C;Temperature Class T5 Process Temp =95°C; Temperature Class T4 Process Temp=120°C as defined on nameplate. IECEx Certificate of Conformity: Element IECEx EMT 17.0007X; IECExStandards: IEC 60079-0:2011 (Edition 6); IEC 60079-2014 (Edition 7);IEC 60079-31:2013 (Edition 2).
- Weight
- 2 lb 8 oz (1134 g).
- Agency Approvals
- FM; CE; ATEX/IECEx.
