TRI2-200-50L | 0 to 200 psi (0 to 1400 kPa) | 1/2" bottom mount | Dwyer

0 to 200 psi (0 to 1400 kPa), 1/2" bottom mount

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TRI2-200-50L

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TRI2-200-50L Documents

Series TRI2 Catalog Page More Info

Overview

Details for TRI2-200-50L

See catalog product page for full listing

0 to 200 psi (0 to 1400 kPa) | 1/2" bottom mount

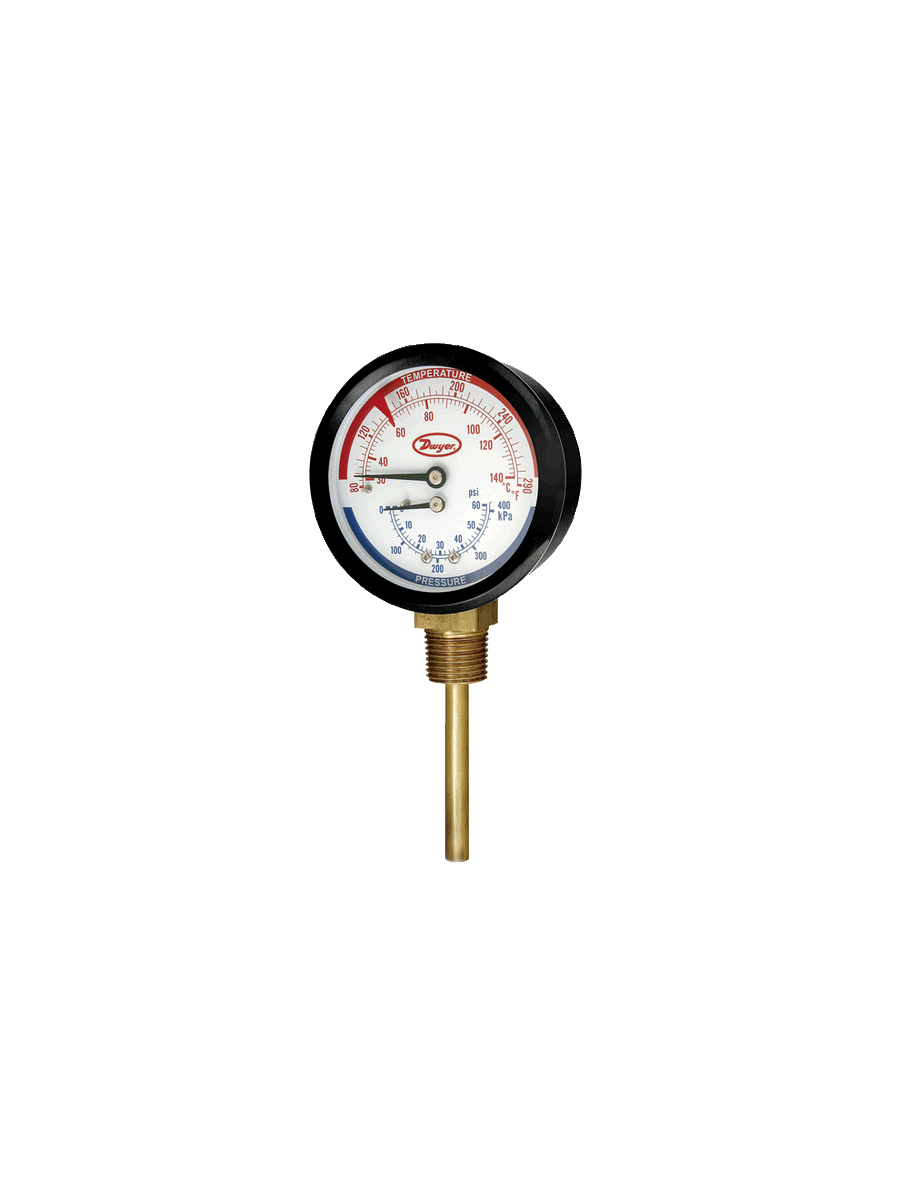

SERIES TRI2 TRIDICATOR GAGE

Combination Pressure/Temperature Gage

The Series TRI2 Tridicator Gage combines the value of an individual pressure gage and thermometer inone instrument. These tridicators simplify installation which reduces time and savesmoney. The moveable dial with blue pressure markings and red temperature markingsmake the instrument easy to read. Pressure is indicated in both psi and kPa, whiletemperature is measured in both Fahrenheit and Celsius. Series TRI2 comes in threedifferent connection options including lower mount, center back mount, and center backmount with extension shank.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: TRI2 TRIDICATOR GAGE
Category/Type: Pressure
Type: Single Pressure
Series: TRI2 TRIDICATOR GAGE
Service: Compatible gases and liquids.
Wetted Materials: Brass connection and phosphor bronze Bourdon tube.
Housing: Drawn steel; black finish.
Accuracy: Pressure ±3-2-3%; Temperature ±1 scale division.
Temperature Range: All models: 80 to 290°F (30 to 140°C).
Temperature Limits: Ambient: -40 to 250°F (-40 to 120°C);Process: 80 to 290°F (30 to 140°C).
Pressure Limits: FS range.
Size: 3" (76 mm).
Process Connections: 1/2" male NPT back or bottom; 1/4" male NPT back connection.
Weight: 12.35 oz (350 g) center back mount and lower mount;14.11 oz (400 g) center back mount with extension shank.
