TPT-R02 | Industrial pressure transmitter | 0-250 psi | ratiometric. | Dwyer

Industrial pressure transmitter, 0-250 psi, ratiometric.

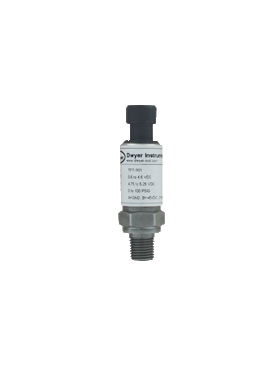

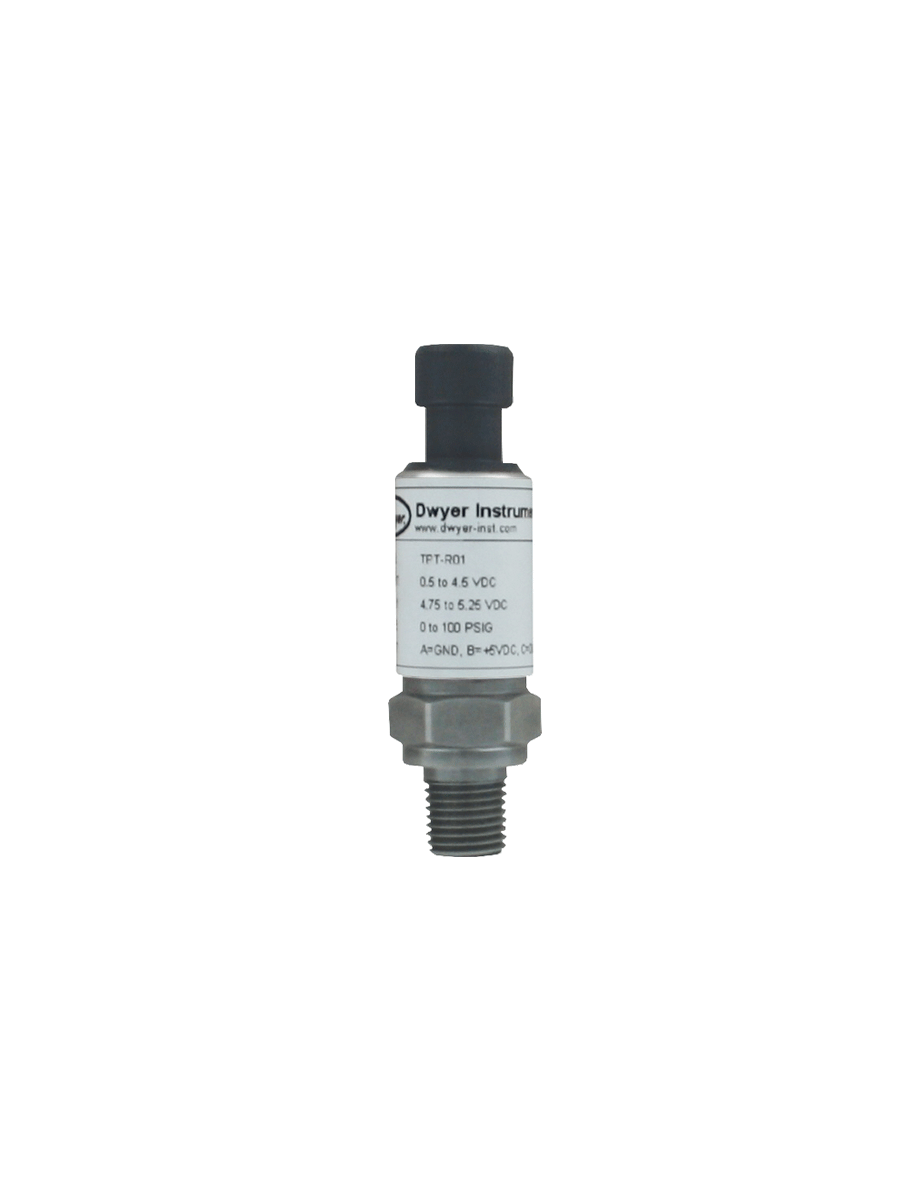

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TPT-R02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TPT-R02 Documents

Instruction Manual Series TPT Catalog Page More Info

Overview

Details for TPT-R02

See catalog product page for full listing

Industrial pressure transmitter | 0-250 psi | ratiometric.

SERIES TPT INDUSTRIAL PRESSURE TRANSMITTER

17-4PH SS Wetted Parts, Packard Electrical Connection

The Series TPT Pressure Transmitter is the ideal choice for all types of industrialpressure applications. Machined from a solid piece of 17-4PH SS, the TPT provides a leakproof, all metal system without O-rings, welds, or organics exposed to the pressure media.Its design allows for stable operation when subject to shock and vibration. Utilizingpiezo-resistive technology with digital compensation and temperature correction, the TPTgives high accuracy and stability under harsh environmental conditions. Available inratiometric and 4 to 20 mA outputs.

Calibration Option available under Accessories.

Product Applications

OEM
Hydraulic systems
HVAC equipment
Industrial engines
Compressors

High-shock and vibration resistant insures stability in controlling pressure for process applications

Specifications

Series: TPT INDUSTRIAL PRESSURE TRANSMITTER
Category/Type: Pressure
Type: Single Pressure
Series: TPT INDUSTRIAL PRESSURE TRANSMITTER
Service: Compatible liquids and gases.
Wetted Materials: 17-4PH SS.
Accuracy: ±1% FS (RMS).
Stability: < ±0.25% FS per year.
Temperature Limits: -13° to 185°F (-20° to 85°C).
Compensated Temperature Range: -13° to 185°F (-20 to 85°C).
Pressure Limits: Proof pressure: 2 x FS; Burst pressure: 3 x FS.
Enclosure Rating: IP65.
Thermal Effect: Zero shift: ±0.01% FS per 1°C; Span error: ±0.02% FS per1°C.
Power Requirements: See table on catalog page.
Output Signal: See table on catalog page.
Loop Resistance: < 100 Ω.
Electrical Connection: Packard connector.
Process Connections: 1/4"-18 male NPT.
Shock: ±20 g.
Vibration: 50 g @ 20 to 2000 Hz.
Weight: 0.20 lb (0.09 kg).
