TFP-LI05 | Liquid turbine flow meter | range .79 to 7.9 GPH (0.05 to 0.5 LPM) | 1/4" OD connection. | Dwyer
Liquid turbine flow meter, range .79 to 7.9 GPH (0.05 to 0.5 LPM), 1/4" OD connection.

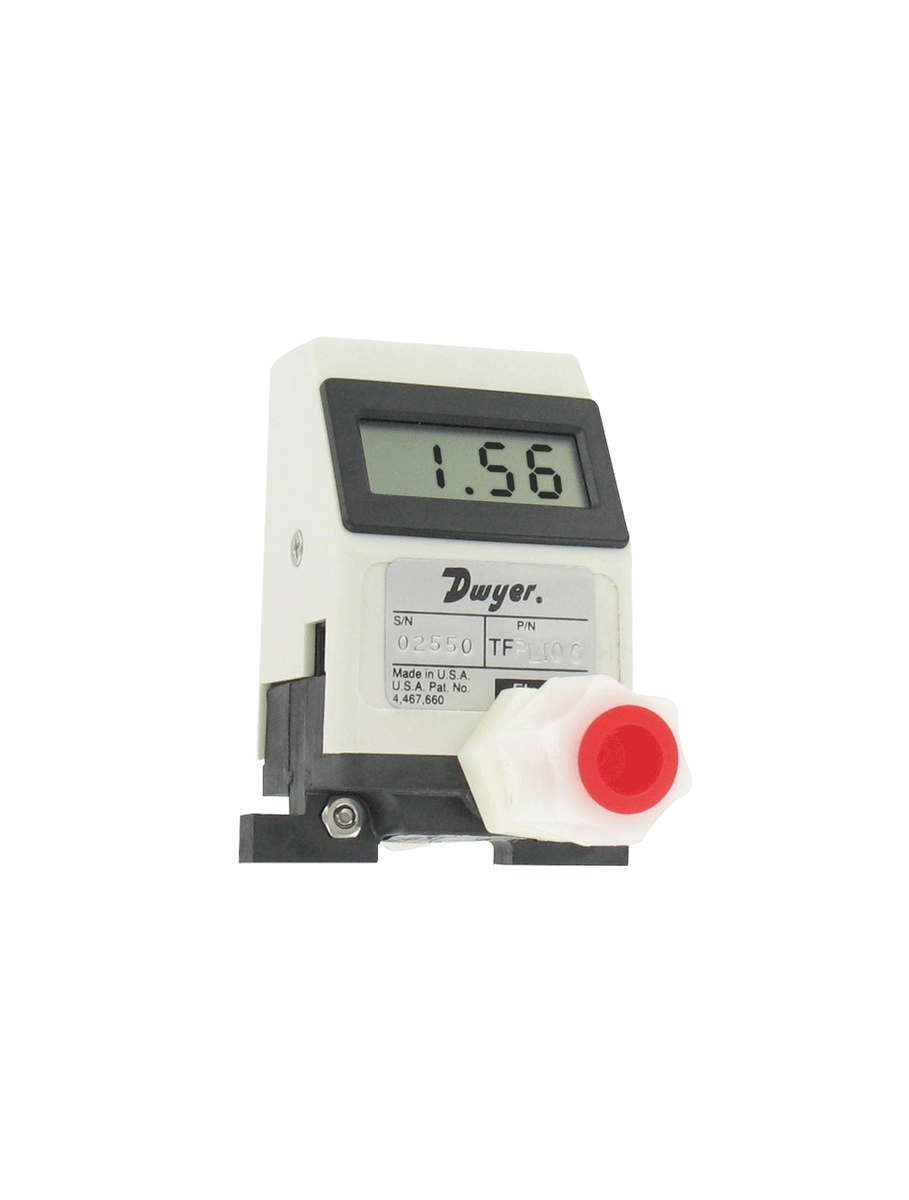

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFP-LI05
Documents and manuals
Dwyer TFP-LI05 Documents
Overview
Details for TFP-LI05
See catalog product page for full listing
Liquid turbine flow meter | range .79 to 7.9 GPH (0.05 to 0.5 LPM) | 1/4" OD connection.
Series TFP-LI Liquid Turbine Flow Meter
PPS Body, 0 to 5 VDC Output, LCD Indication
Series TFP-LI Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.
Specifications
- Series
- TFP-LI Liquid Turbine Flow Meter
- Category/Type
- Flow
- Type
- Flow Transmitters
- Series
- TFP-LI Liquid Turbine Flow Meter
- Service
- Clean liquids compatible with wetted materials.
- Wetted Materials
- PPS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
- Accuracy
- ±1% of full scale.
- Linearity
- ±1% of full scale.
- Repeatability
- ±0.2% of full scale.
- Temperature Limits
- 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of full scale per °C.
- Pressure Limits
- 100 psig (6.8 bar).
- Process Connection
- Compression fitting; see Catalog page.
- Power Requirements
- 11.5 to 15 VDC.
- Power Consumption
- 35 mA @ 12 VDC.
- Output Signal
- 0 to 5 VDC: Minimum 2.5 kΩ load.
- Electrical Connections
- Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page.
- Display
- LCD; 0.39" (10 mm) digits (only in LPM).
- Enclosure Rating
- IP10 (NEMA 1).
- Weight
- 0.27 lb (121 g).
- Agency Approvals
- CE.
