TFP-GV06 | Gas turbine flow meter | range .42 to 2.1 SCFH (0.2 to 1 LPM) | 1/8" OD connection. | Dwyer

Gas turbine flow meter, range .42 to 2.1 SCFH (0.2 to 1 LPM), 1/8" OD connection.

Brand: DwyerSKU: TFP-GV06

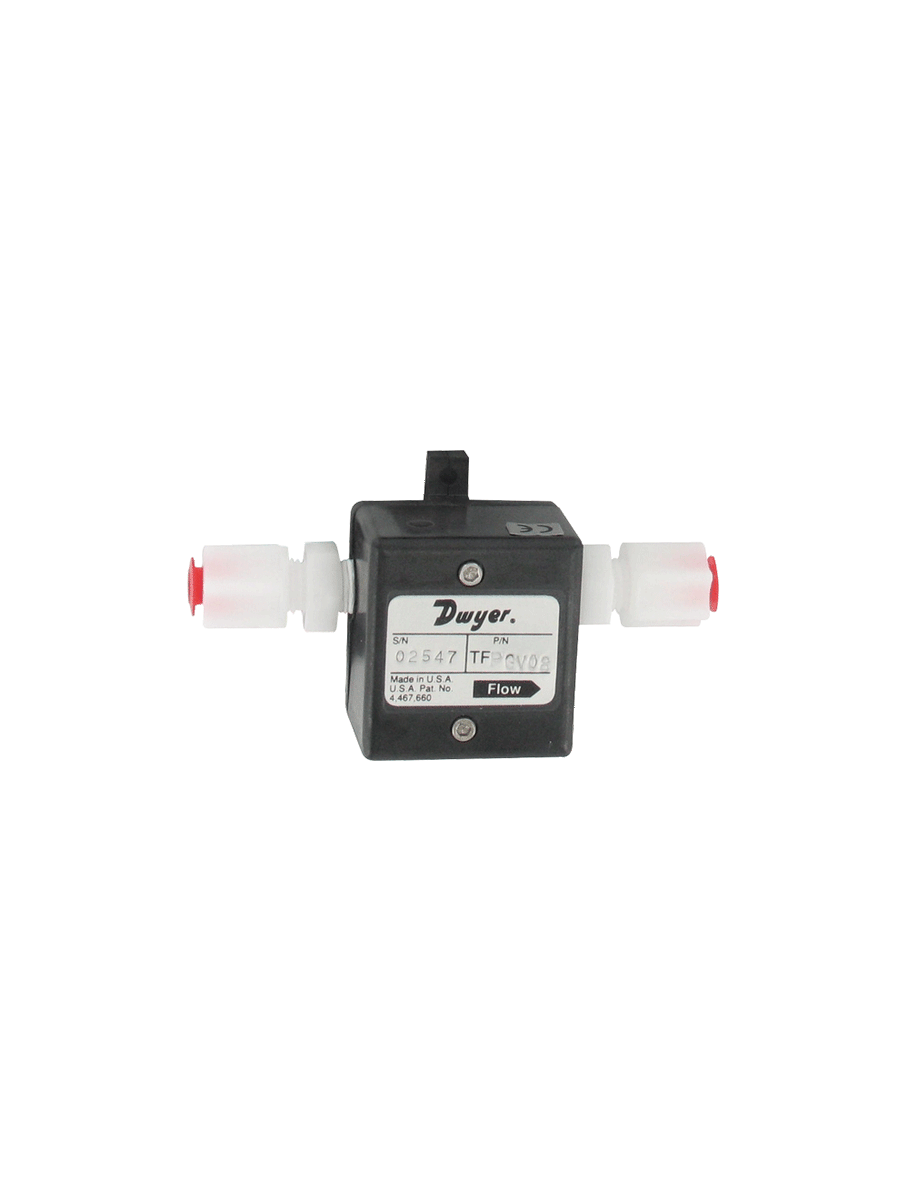

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFP-GV06

Jump to: Overview & Specifications Reviews

Overview Details for TFP-GV06

See catalog product page for full listing

Gas turbine flow meter | range .42 to 2.1 SCFH (0.2 to 1 LPM) | 1/8" OD connection.

Series TFP-GV Gas Turbine Flow Meter

PPS Body, 0 to 5 VDC Output

The Series TFP-GV Gas Flowmeters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A power adapter or mating cable assembly is required for operation.

Product Applications

Industrial flow monitoring
Commercial systems
Laboratory equipment

Corrosion resistant PPS body
High repeatability with patented microturbine design
Design accurately measures flow rates with no zero drift and no required maintenance

Specifications

Series: TFP-GV Gas Turbine Flow Meter
Category/Type: Flow
Type: Flow Transmitters
Series: TFP-GV Gas Turbine Flow Meter
Service: Clean dry gases compatible with wetted materials.
Wetted Materials: PPS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
Accuracy: ±3% of FS.
Linearity: ±3% of FS.
Repeatability: ±0.5% of FS.
Temperature Limits: 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of FS per °C.
Pressure Limits: 40 psig (2.8 bar).
Process Connection: Compression fitting; see model table on Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC; minimum 2.5 kΩ load.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See accessories table.
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.16 lb (75 g).
Agency Approvals: CE.
