TFP-GV05 | Gas turbine flow meter | range .21 to 1.1 SCFH (0.1 to 0.5 LPM) | 1/8" OD connection. | Dwyer
Gas turbine flow meter, range .21 to 1.1 SCFH (0.1 to 0.5 LPM), 1/8" OD connection.

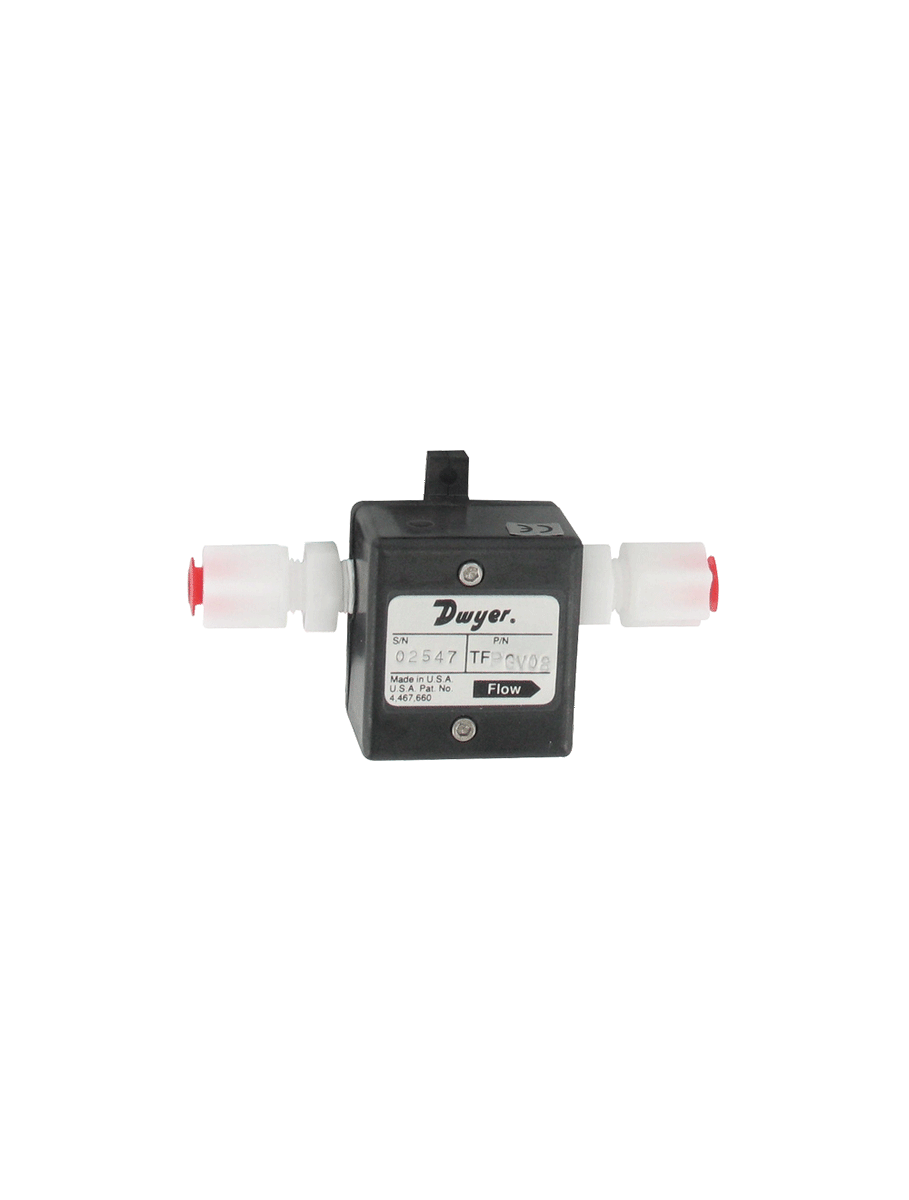

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFP-GV05
Documents and manuals
Dwyer TFP-GV05 Documents
Overview
Details for TFP-GV05
See catalog product page for full listing
Gas turbine flow meter | range .21 to 1.1 SCFH (0.1 to 0.5 LPM) | 1/8" OD connection.
Series TFP-GV Gas Turbine Flow Meter
PPS Body, 0 to 5 VDC Output
The Series TFP-GV Gas Flowmeters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A power adapter or mating cable assembly is required for operation.
Product Applications
- Industrial flow monitoring
- Commercial systems
- Laboratory equipment
- Corrosion resistant PPS body
- High repeatability with patented microturbine design
- Design accurately measures flow rates with no zero drift and no required maintenance
Specifications
- Series
- TFP-GV Gas Turbine Flow Meter
- Category/Type
- Flow
- Type
- Flow Transmitters
- Series
- TFP-GV Gas Turbine Flow Meter
- Service
- Clean dry gases compatible with wetted materials.
- Wetted Materials
- PPS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
- Accuracy
- ±3% of FS.
- Linearity
- ±3% of FS.
- Repeatability
- ±0.5% of FS.
- Temperature Limits
- 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of FS per °C.
- Pressure Limits
- 40 psig (2.8 bar).
- Process Connection
- Compression fitting; see model table on Catalog page.
- Power Requirements
- 11.5 to 15 VDC.
- Power Consumption
- 35 mA @ 12 VDC.
- Output Signal
- 0 to 5 VDC; minimum 2.5 kΩ load.
- Electrical Connections
- Four-pin power and signal connector. A power adapter or mating cable required for operation. See accessories table.
- Enclosure Rating
- IP10 (NEMA 1).
- Weight
- 0.16 lb (75 g).
- Agency Approvals
- CE.
