TE-B-1 | PTFE orifice plate flowmeter | 3/4" line size | 0.250" bore | 0.3 Beta | water capacity: 20" d.p. W/C | 0.97 GPM flow; air capacity: 3.65 SCFM @ 14.7 psia | 5.66 SCFM @ 20 psig | 10.3 SCFM @ 100 psig; 1 lb. | Dwyer

PTFE orifice plate flowmeter, 3/4" line size, 0.250" bore, 0.3 Beta, water capacity: 20" d.p. W/C, 0.97 GPM flow; air capacity: 3.65 SCFM @ 14.7 psia, 5.66 SCFM @ 20 psig, 10.3 SCFM @ 100 psig; 1 lb.

Brand: DwyerSKU: TE-B-1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-B-1

Jump to: Overview & Specifications Reviews

Overview Details for TE-B-1

See catalog product page for full listing

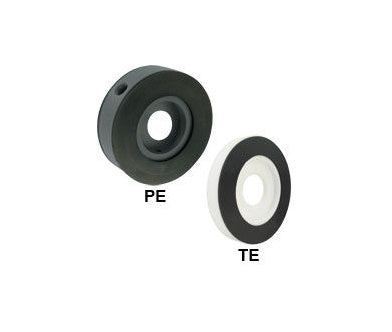

Series PE & TE Orifice Plate Flowmeters

PVC or PTFE Orifice Plate

The Series PE Orifice Plate Flowmeter offers one-piece PVC construction incorporating a unique holder or carrier ring containing metering taps and integral gaskets. Unlike a standard orifice plate, the Series PE is a true primary element including the various components for differential pressure measurement. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. The Series PE is available in line sizes from 1/2" to 24" and used for air and most gases. It meets or exceeds ASME, AGA & ISO standards.

The Series TE Orifice Plate Flowmeter offers one-piece PTFE construction similar to the OP and PE Series orifice plates, which incorporate a unique holder or carrier ring containing metering taps and integral gaskets. Available for line sizes from 1/2" to 24", the Series TE orifice plate can be used with gases, liquids, corrosive, and high temperature fluids. The Series TE can be easily installed by slipping the unit between standard flanges (orifice flanges are not required). The Series TE was designed for use anywhere there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness.

Product Applications

Fluid flow rates in building water lines
Boiler feedwater
Cooling water
Combustion or compressed air
Steam flow

Series PE:
Mounted with standard flanges
Standard "corner tap" configuration
Corrosion free material
Simplified installation
Built in metering taps (1/4" female NPT STD)
Proven through a wide range of applications for accuracy and energy efficiency
Assures long term reliability and accuracy
Series TE:
Excellent chemical resistance
Weather resistant
Flame retardant (without factory gaskets)
Low friction (minimum wear)
Orifice plate thickness 1/4" offering greater stability

Specifications

Series: PE & TE Orifice Plate Flowmeters
Category/Type: Flow
Type: Flowmeters
Series: PE & TE Orifice Plate Flowmeters
Service: PE: Clean air and compatible gases; TE: Compatible gases and liquids.
Wetted Material: Monolithic (single piece) constructed entirely of gray PVC for PEor white PTPE for TE; Buna-N gaskets.
Accuracy: ±0.6% full scale flow. (Beta= .2-.6) ±0.7% for Beta greater than .6.
Temperature Limits: PE: 140°F (60°C) max; TE: -40 to 200°F (-40 to 93.3°C).
Pressure Limits: 150 psi (10 bar) max.
Head Loss: 1 - Beta ratio²; eg: 1 - 07² = 1 - 0.49 = 51% of the d.p.
Line Sizes: 1/2" to 24".
Process Connections: 1/4" female NPT.
Installation: Standard flange 125#/150# rating.
Pipe Requirements: General requirements 10 diameter upstream and 5 diameter downstream.
Weight: Varies with line size. See Catalog page.
