TDS122 | Thermal dispersion flow switch | PP/PPS wetted parts | 4.5" (11.4 cm) length. | Dwyer
Thermal dispersion flow switch, PP/PPS wetted parts, 4.5" (11.4 cm) length.

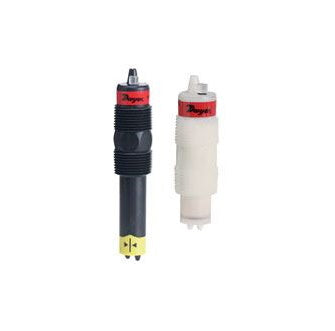

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TDS122
Documents and manuals
Dwyer TDS122 Documents
Overview
Details for TDS122
See catalog product page for full listing
Thermal dispersion flow switch | PP/PPS wetted parts | 4.5" (11.4 cm) length.
Series TDS Thermal Dispersion Flow Switch
Adjustable Switch Point, LED Indication
The Series TDS Thermal Dispersion Flow Switch offers solid state flow detection of non-coating liquids for pump and processprotection. SPDT output allows for interfacing with remote PLC or relay control device. The adjustable switch point is factory calibrated at 0.2 fps with LED indication of flow and calibration status. Units feature selectable NO or NC operation and are not damaged by over-ranging flow velocities.
Specifications
- Series
- TDS Thermal Dispersion Flow Switch
- Category/Type
- Flow
- Type
- Flow Switches
- Series
- TDS Thermal Dispersion Flow Switch
- Service
- Liquids.
- Wetted Materials
- Polypropylene/PPS or Polyvinylidene Fluoride.
- Range
- Range: 0.04 to 10 fps (1.2X10-2 to 3.05 m/s)
- Temperature Limits
- 32 to 140°F (0 to 60°C).
- Pressure Limits
- 150 psi (10 bar) @ 77°F (25°C); derated @ 1.667 psi (.113 bar) per °C above 25°C.
- Repeatability
- ±5% of setpoint.
- Switch Type
- SPDT.
- Electrical Rating
- 60 VAC/60 VDC @ 1 A.
- Electrical Connections
- 22 AWG 3-wire; 10 ft (3 m) length.
- Process Connections
- 3/4" male NPT.
- Mounting Orientation
- Any orientation; for pipe sizes 3/4" to 1-1/2" use 3.0" (7.6 cm) length switch; for 2" to 16" pipe sizes use 4.5" (11.4 cm) length switch.
- Setpoint Adjustment
- 0.04 to 3 fps (1.2X10-2 to .91 m/s).
- Setpoint Drift
- 0.5% of setpoint.
- Response Time
- 1-10 seconds.
- Viscosity Range
- 1 to 200 centipoise.
- Supply Voltage
- 12 to 36 VDC.
- Consumption
- 50 mA (nominal).
- Indication
- LED for flow status.
- Weight
- 3 oz (94 g).
- Agency Approvals
- CE.
