TCS-4041 | Thermocouple temperature switch | type J/K/S Input | 24 VAC/VDC | °C. | Dwyer

Thermocouple temperature switch, type J/K/S Input, 24 VAC/VDC, °C.

Brand: DwyerSKU: TCS-4041

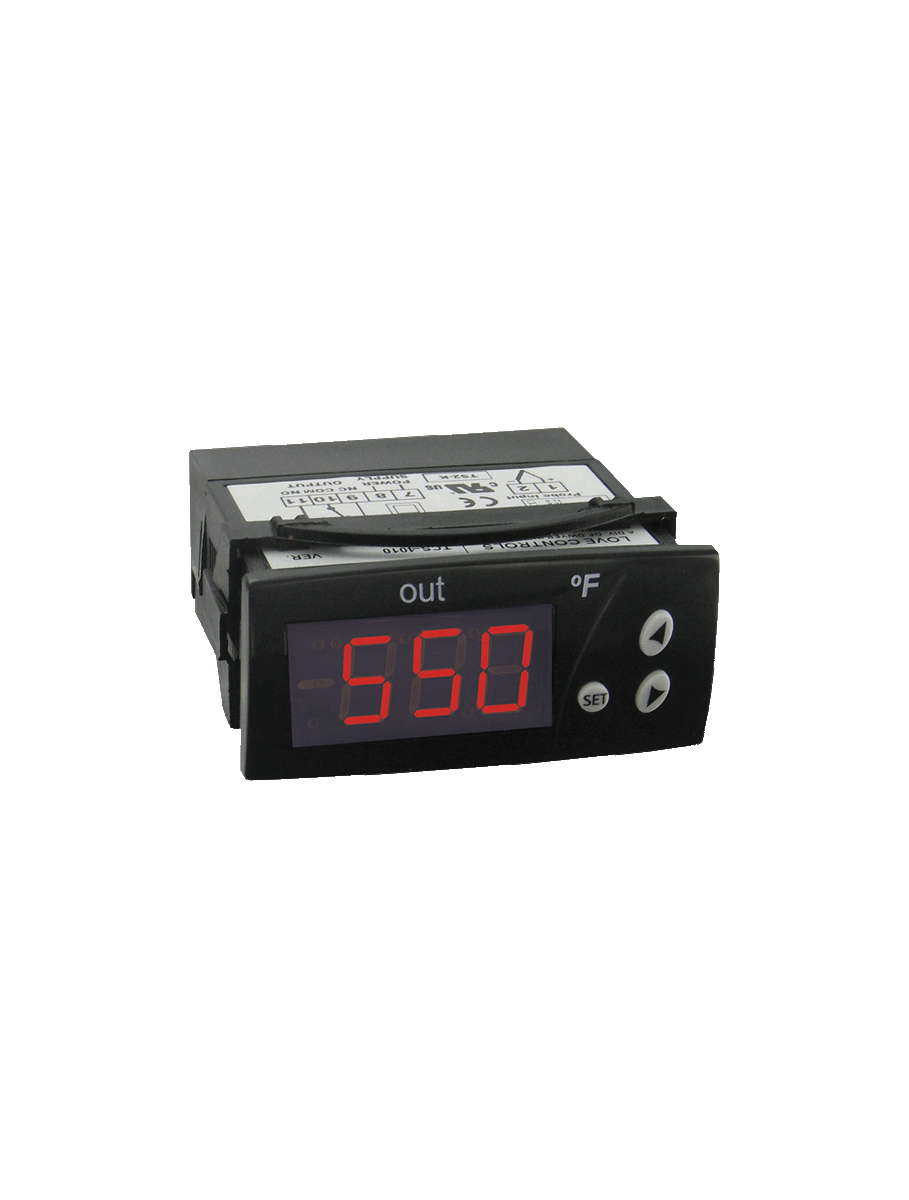

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TCS-4041

Jump to: Overview & Specifications Reviews

Overview Details for TCS-4041

See catalog product page for full listing

Thermocouple temperature switch | type J/K/S Input | 24 VAC/VDC | °C.

SERIES TCS THERMOCOUPLE TEMPERATURE SWITCH

Heating and Cooling Control, 16 Amp Rating, Two Alarms

The Series TCS Thermocouple Temperature Switch monitors and controlstemperature while offering a wide temperature range, two selectable alarm sets, andan internal buzzer indicating alarm condition or error.

Product Applications

Food service equipment
Industrial process control

Heating or cooling modes
Internal alarm buzzer
Configuration key to quickly load parameters from one unit to another

Specifications

Series: TCS THERMOCOUPLE TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TCS THERMOCOUPLE TEMPERATURE SWITCH
Probe Range: 32 to 999°F (0 to700°C) for Type J thermocouple; 32 to999°F (0 to 999°C) for Type K or Sthermocouples.
Input: Type J or K thermocouple.
Output: SPDT relay rated 16 A @ 240VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF.
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC; or 24 VAC/VDC(depending on model).
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to 70°C); Storage: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE; cURus.
