Documents: SWBV-02

Series DBVL & SWBV Catalog Page DBVL-SWBV More Info

SWBV-02 | Sweat connection brass ball valve | 600 psi | full port | 1/2" | Dwyer

Sweat connection brass ball valve, 600 psi, full port, 1/2"

Brand: DwyerSKU: SWBV-02

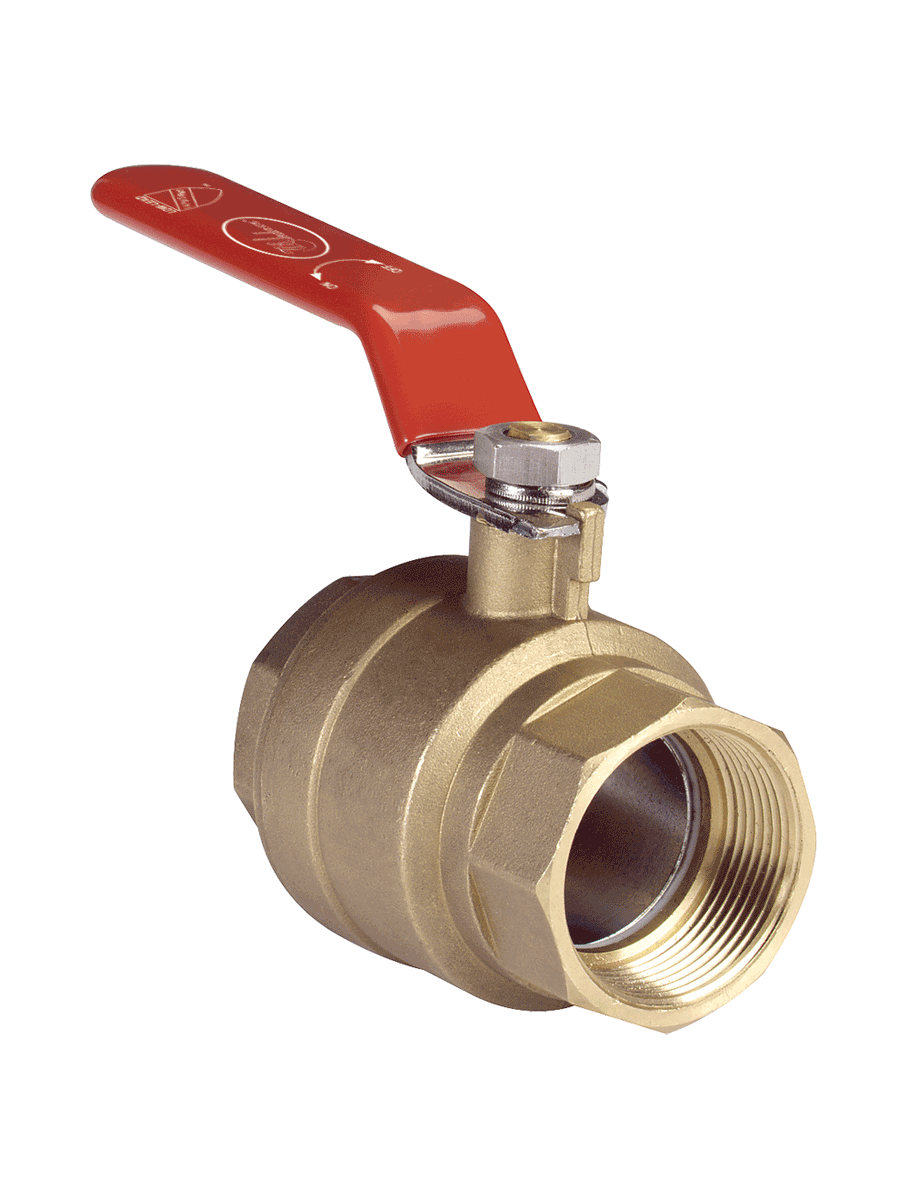

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SWBV-02

Jump to: Overview & Specifications Reviews

Overview Details for SWBV-02

See catalog product page for full listing

Sweat connection brass ball valve | 600 psi | full port | 1/2"

Series DBVL & SWBV NPT Brass Ball Valves

Economical, Easy to Install

The Series DBVL & SWBV Brass Ball Valves are economical hand lever ball valves ideal for commercial or industrial use. The valve body, body cap, and stem are made of a quality brass for great durability and compatibility. The seats and stem packing are constructed of PTFE for long lasting service. A blowout-proof stem provides safety in the event of overpressure, and the full port design allows for the maximum flow coefficient while still retaining minimal pressure drop.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Gas or liquid flow control

Low lead brass
PTFE seats to stem
Blowout-proof stem

Specifications

Series: DBVL & SWBV NPT Brass Ball Valves
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: DBVL & SWBV NPT Brass Ball Valves
Service: Gases and liquids compatible with wetted materials.
End Connections: DBVL: 1/4" to 3" female NPT; SWBV: 1/4" to 3" sweat connections.
Pressure Limits: 1/4" to 2": -29" Hg to 600 psi (-736 mm Hg to 41 bar) WOG; DBVL: 2-1/2" to 3": -29" Hg to 250 psi (-736 mm Hg to 17 bar) WOG; SWBV: 2-1/2" to 3"; -29" Hg to 400 psi (-736 mm Hg to 27 psi) WOG.
Temperature Limits: -40° to 365°F (-40° to 185°C).
Wetted Materials: Body; Body Cap; and Stem: Brass; Seat and Packing: PTFE; Ball: DBVL: 1/4" to 1": Chrome Plated Brass; 1-1/4" to 3": Stainless Steel; SWBV: Stainless Steel.
Other Materials: Other Materials: Body Gland and Stem Nut: Brass; Handle and Handle Nut: Steel; Handle Cover: Rubber.
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
