SG5-G0522N | 4.5" Contractor gage | 0 to 100 psi | 1/4" NPT bottom connection | Dwyer
4.5" Contractor gage, 0 to 100 psi, 1/4" NPT bottom connection
Documents and manuals
Dwyer SG5-G0522N Documents
Overview
Details for SG5-G0522N
4.5" Contractor gage | 0 to 100 psi | 1/4" NPT bottom connection

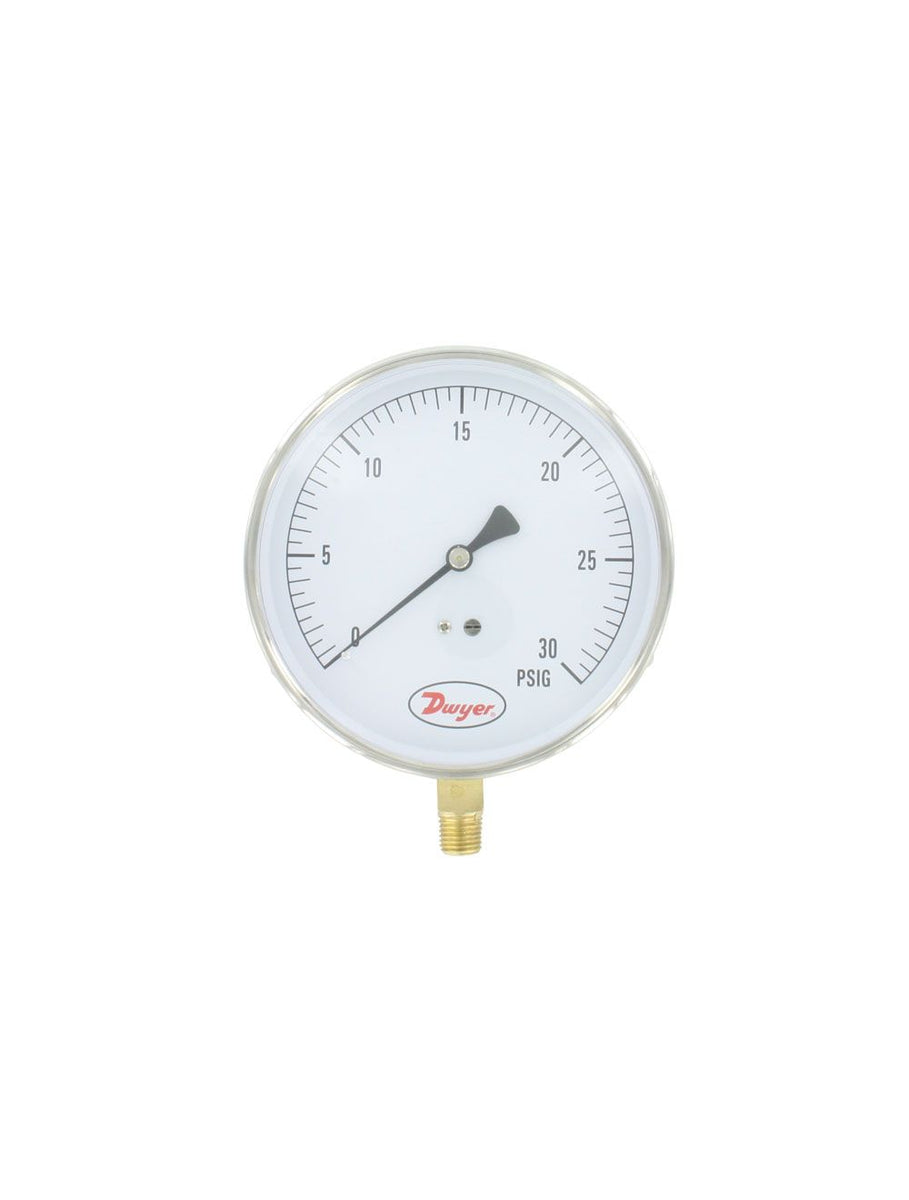

SERIES SG5 CONTRACTOR GAGE
The Series SG5 Contractor Gages are ideally manufactured forcontractors because of their large dial and compact design. Since the gages arelightweight and slim, they are easy to transport. The large 4.5" scale makesthem simple to read. The Series SG5 gages possess psi scales with 1% full-scaleaccuracy. The gages are made with a stainless steel housing and brass wettedparts. Units can withstand temperatures of -4 to 140°F (-20 to 60°C). Thesequalities make the SG5 series perfect for contractors and industrial applications.A wide offering of ranges are available from full vacuum to 300 psi.
Calibration Option available under Accessories.
Product Applications
- Contractor applications
- Industrial applications
- Stainless steel housing resists ambient corrosion for longer service life in harshenvironments
- High accuracy gage for applications requiring more precise measurement
- Lightweight and slim, yet large easy to read gage make them easy to carry and read
- Specified with high ambient temperature rating means more robust uses and longerservice-life
Specifications
- Series
- SG5 CONTRACTOR GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- SG5 CONTRACTOR GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connection; bronze tube.
- Housing
- 304 SS.
- Lens
- Plastic.
- Accuracy
- ±1% FS.
- Pressure Limits
- Full scale range.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Size
- 4.5" (115 mm).
- Process Connections
- 1/4" male NPT.
- Weight
- 10.4 oz (295 g).
