SG1-B10521N | Range 0-100 psi | bottom connection | Dwyer
Range 0-100 psi, bottom connection

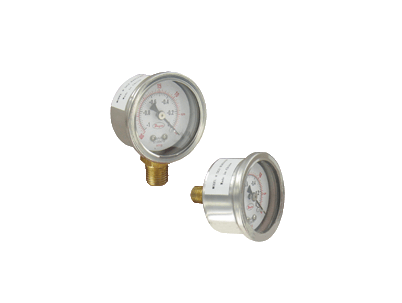

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SG1-B10521N
Documents and manuals
Dwyer SG1-B10521N Documents
Overview
Details for SG1-B10521N
See catalog product page for full listing
Range 0-100 psi | bottom connection
SERIES SG1 1.5" INDUSTRIAL PRESSURE GAGE
2.5% FS Accuracy, 316 SS or Brass Wetted Parts, Dual PSI/Bar x100 kPa Scales
The Series SG1 Industrial Pressure Gages are perfect for applications where resistance to corrosion isnecessary. The stainless steel case and ring offer excellent protection from harsh processes.The SG1 gages are an economical choice where ambient corrosion and vibration are aconcern. Gages are suitable for all fluids that are compatible with brass and bronze, and areavailable with bottom or back connections.
Calibration Option available under Accessories.
Product Applications
- Vacuums in pneumatic conveying lines
- Positive pressure in compressed air headers
- Corrosive ambient environments
- Stainless steel housing to resist ambient corrosion for longer service life in harshenvironments
- Good accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
- Back or bottom mounting and compact size provides for mounting with dimensionallimitations
Specifications
- Series
- SG1 1.5" INDUSTRIAL PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- SG1 1.5" INDUSTRIAL PRESSURE GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connector; bronze tube.
- Housing
- 304 SS.
- Lens
- Polycarbonate.
- Accuracy
- ±2.5% FS.
- Pressure Limit
- FS range.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Size
- 1.5" (40 mm).
- Process Connections
- 1/8" NPT.
- Weight
- 2.2 oz (63 g) bottom; 2.3 oz (65 g) back.
