SFI-550-2 | Sight window | 2" male NPT. | Dwyer

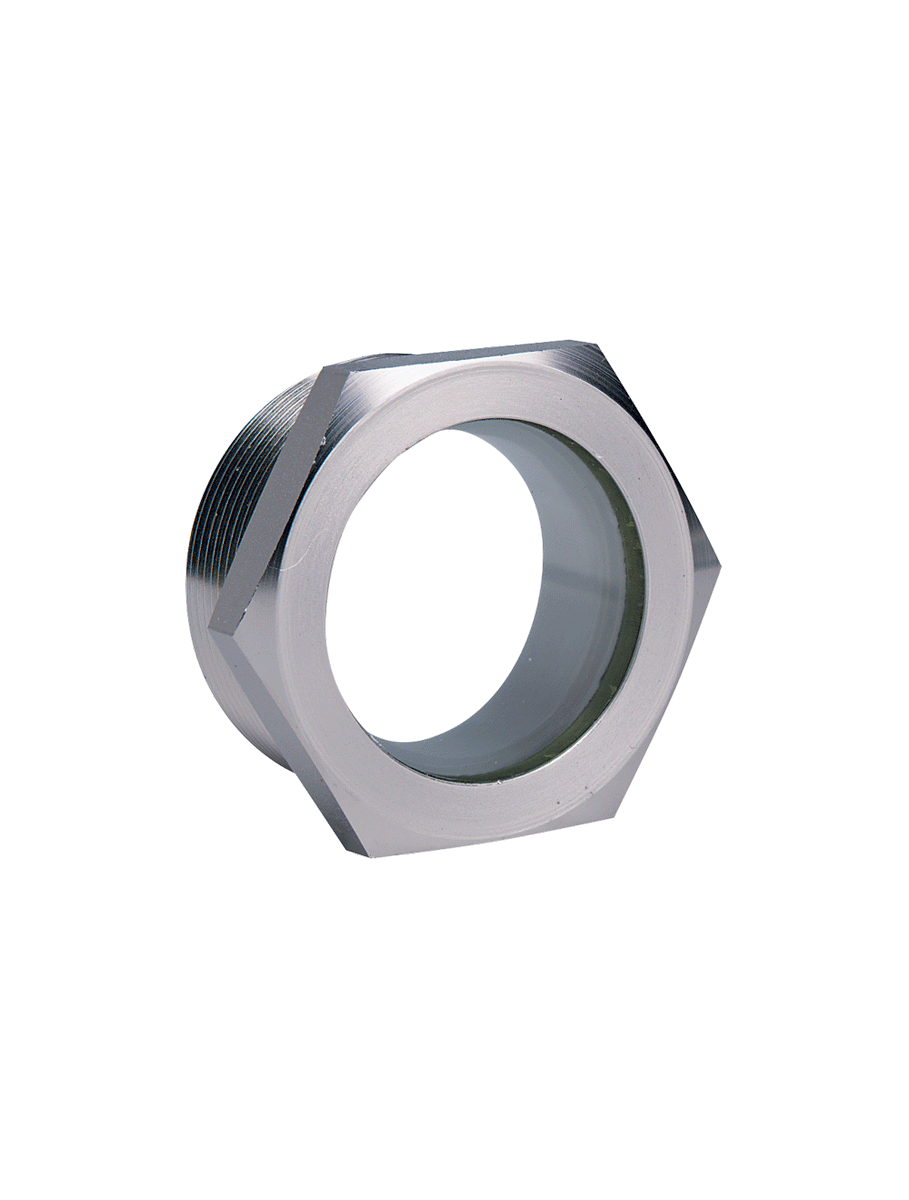

Sight window, 2" male NPT.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SFI-550-2
Documents and manuals
Dwyer SFI-550-2 Documents
Overview
Details for SFI-550-2
See catalog product page for full listing
Sight window | 2" male NPT.
Series 550 Sight Window
Shows Level or Contents of Tanks, Pipelines; Fused Glass and Steel Construction
The Series 550 Sight Window is a range of glass with plated steel body sight windows which display level or contents of tanks or pipelines. Connections are standard NPT in sizes ranging from 1/4 to 2".
Product Applications
- Hydraulic Tanks
- Pressure Vessels
- Coolant Tanks
- Hydraulic Lines
- Oil Reservoirs
- Glass to metal bond for utmost reliability
- Plated steel bodies have convenient hex wrench surfaces for easy installation
- Windows are clear, ripple free, and flush with the front face, with no recess on whichdirt might collect
Specifications
- Series
- 550 Sight Window
- Category/Type
- Flow
- Type
- Sight Flow Indicators
- Series
- 550 Sight Window
- Service
- Compatible gases and liquids.
- Wetted Materials
- Window: glass; Body: plated steel.
- Temperature Limit
- 200°F (93°C).
- Pressure Limit
- 125 psig (8.6 bar).
- Connections
- 1/4" to 2" male NPT.
