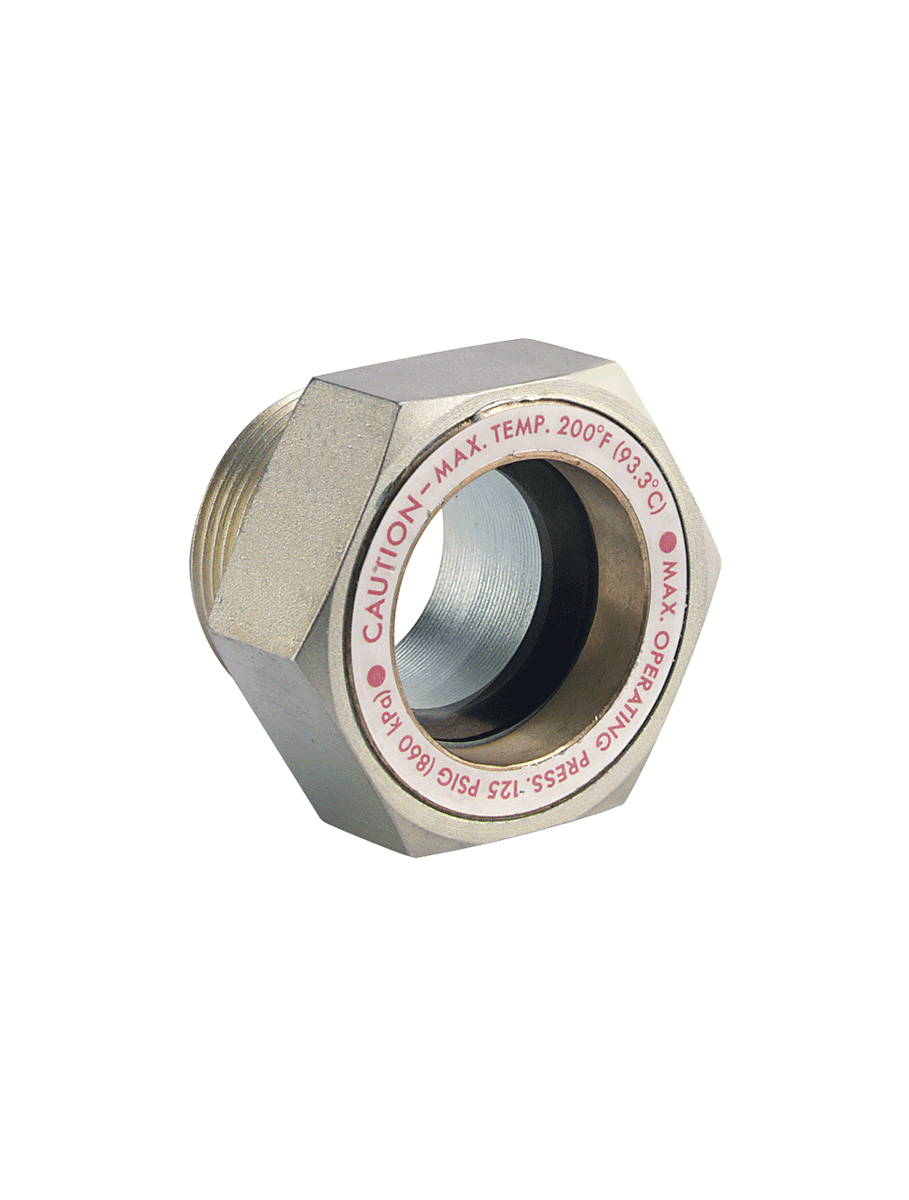

SFI-500B-1 | Sight window | 1" male NPT. | Dwyer

Sight window, 1" male NPT.

Brand: DwyerSKU: SFI-500B-1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-500B-1

Jump to: Overview & Specifications Reviews

Overview Details for SFI-500B-1

See catalog product page for full listing

Sight window | 1" male NPT.

Series 500 Sight Window

Shows Level or Contents of Tanks, Pipelines; Tempered, Replaceable Glass Window

The Series 500 Sight Window is a series of standard tempered glass with brass body sight windows which display level or contents of tanks or pipelines. In addition to the standard brass body, the Series 500 sight windows are also available in carbon steel or 316 SS.

Product Applications

Hydraulic Tanks
Pressure Vessels
Coolant Tanks
Hydraulic Lines
Oil Reservoirs

Tough, tempered glass window resists chemical attach and abrasion
Seamless, replaceable gasket assures perfect seal
Field replaceable glass window
Range of wetted materials to suit a wide range of chemical compatibility

Specifications

Series: 500 Sight Window
Category/Type: Flow
Type: Sight Flow Indicators
Series: 500 Sight Window
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: brass; carbon steel; or 316 SS; Gasket: Buna-N on brass and carbon steel body; PTFE on 316 SS body.
Temperature Limit: 200°F (93°C).
Pressure Limit: 125 psig (8.6 bar).
Connections: 3/4" to 2" male NPT.
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
