SFI-350FSS-6 | Sight flow indicator | 6" body | 12.500" (318 mm) length | 11.000" (279 mm) flange dia. | 6.000" (152 mm) viewing dia. | 120 lb (55 kg). | Dwyer
Sight flow indicator, 6" body, 12.500" (318 mm) length, 11.000" (279 mm) flange dia., 6.000" (152 mm) viewing dia., 120 lb (55 kg).

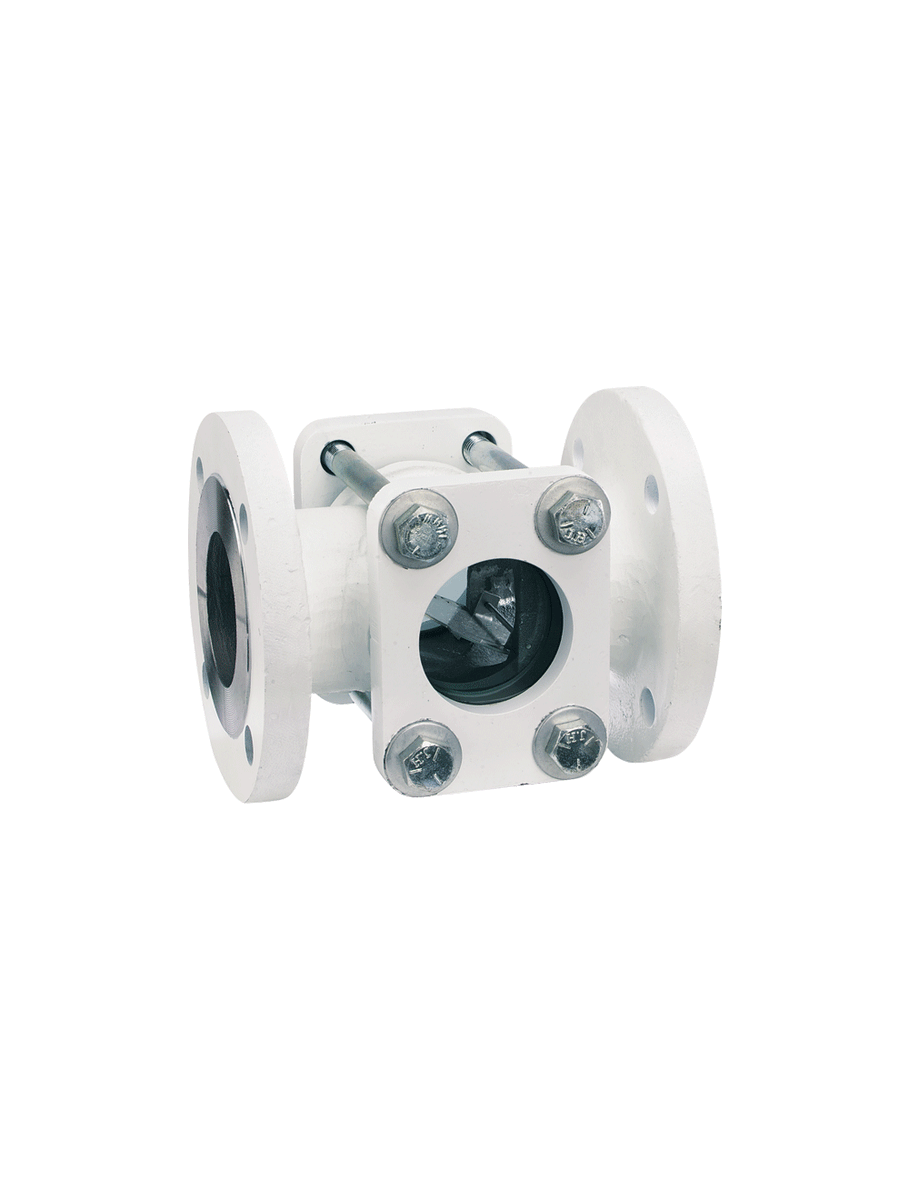

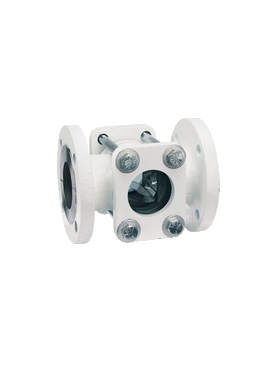

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SFI-350FSS-6
Documents and manuals
Dwyer SFI-350FSS-6 Documents
Overview
Details for SFI-350FSS-6
See catalog product page for full listing
Sight flow indicator | 6" body | 12.500" (318 mm) length | 11.000" (279 mm) flange dia. | 6.000" (152 mm) viewing dia. | 120 lb (55 kg).
Series SFI-300F MIDWEST Sight Flow Indicator
Inexpensive Protection for Expensive Equipment and Systems
Series 300°F Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 300°F Series offer ANSI flange process connections, double viewing windows, and bodies of carbon steel or 316 SS. The 350F type has a double window with no moving indicator and the 360F type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.
Product Applications
- Hydraulic tanks
- Pressure vessels
- Coolant tanks
- Hydraulic lines
- Oil reservoirs
Specifications
- Series
- SFI-300F MIDWEST Sight Flow Indicator
- Category/Type
- Flow
- Type
- Sight Flow Indicators
- Series
- SFI-300F MIDWEST Sight Flow Indicator
- Service
- Compatible gases and liquids.
- Wetted Materials
- Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: 316 SS flapper (360).
- Temperature Limit
- 200°F (93°C).
- Pressure Limit
- 150 psig (10.34 bar).
- Connections
- Flanged.
