RTI2-M | Rate/Total Indicator | meter mounted | Dwyer

Rate/Total Indicator, meter mounted

Brand: DwyerSKU: RTI2-M

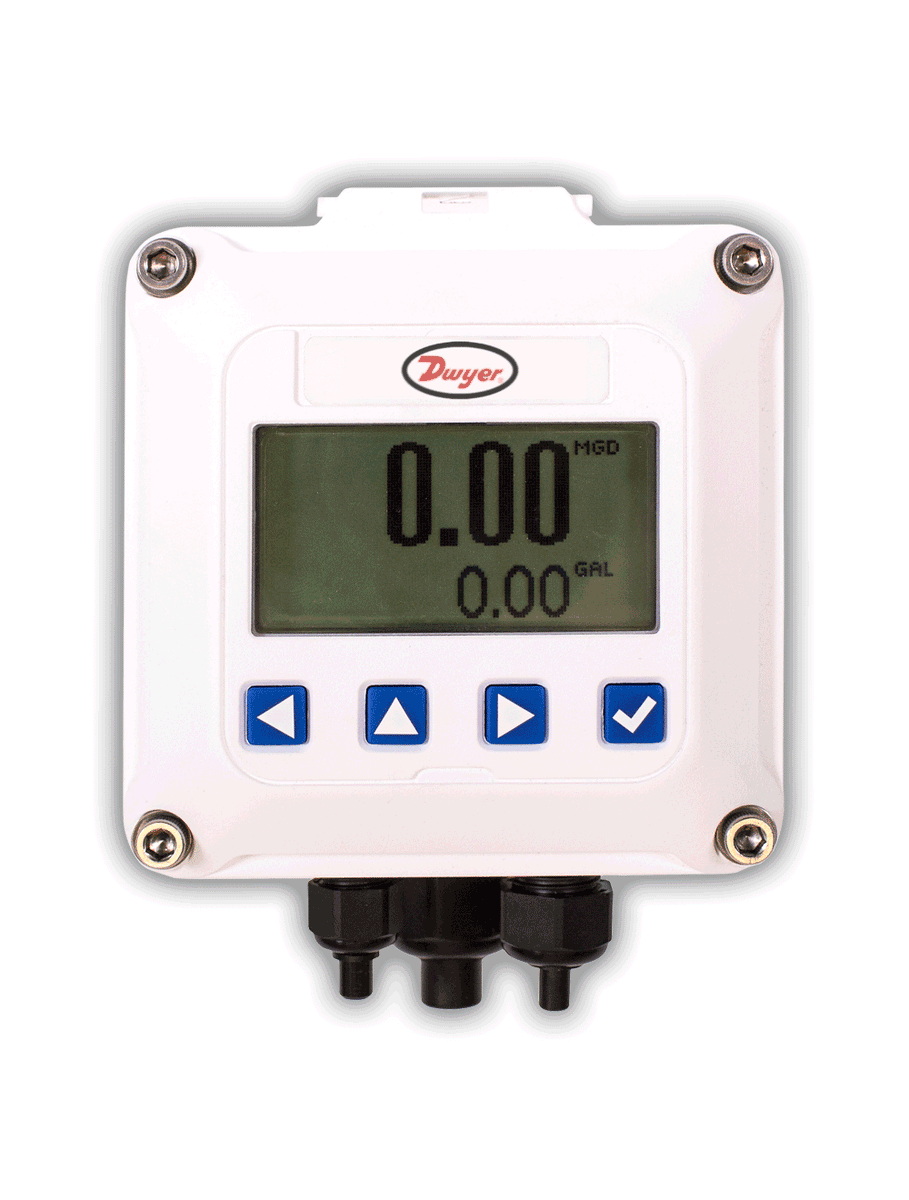

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RTI2-M

Jump to: Overview & Specifications Reviews

Overview Details for RTI2-M

See catalog product page for full listing

Rate/Total Indicator | meter mounted

Series RTI2 Rate/Total Indicator

Loop Powered, Converts Pulse Frequency to 4 to 20 mA, High/Low Flow Alarm

The Series RTI2 Rate & Total Indicator is an indicator/transmitter that takes the pulse output signal from compatible flowmeters, displays flow rate and total, and provides output signals. It is compatible with the Series IEF and PFT.

Product Applications

Water treatment
Water utilities
Industrial chemical handling

Can be mounted on a wall or mounted on the flowmeter for added flexibility
Accessory mounting kits make it easy to change the mounting orientation
High environmental protection with semi-flexible urethane potted electrical components
Provides a pulse, 4 to 20 mA, and dual-relay output

Specifications

Series: RTI2 Rate/Total Indicator
Category/Type: Flow
Type: Flowmeters
Series: RTI2 Rate/Total Indicator
Input: 5 V pulse or contact closure; 1 to 15 pulses/s.
Temperature Limits: Process: -32 to 131°F (0 to 55°C); Storage: -40 to 158°F (-40 to 75°C).
Output: Current sinking square wave pulse: Scaled pulse output (0.1 s duration 6.1 Hz max. or high alarm output or low alarm output); sensor pass-through pulse output (un-scaled); Pulse output range: 0.1 to 9999999.9 units/pulse; Analog: 4 to 20 mA; 24 to 30 VDC.
Power Requirements: 7 to 30 VDC @ 4 mA (4 to 20 mA when loop-powered).
Display: Rate: 8 digits; 1/2" H LCD; Total: 8 digitis; 5/16" character height.
K-Factor Range: 0.001 to 999999.999.
Flow Alarm Output Range: 0.1 to 99999.99.
Enclosure Material Housing: Die-cast powder-coated aluminum; Faceplate #HP92W Lexan.
Enclosure Rating: NEMA 4X (IP67).
Electrical Connection: Terminal blocks; #22 AWG; 3 conductor 18' (5.5 m) cable (2000' max).
Mounting: See model chart on catalog page.
Weight: 3 lb (1361 g).
