RSF015V | Rotatable scale flowmeter | max. flow rate 30 SCFM (900 SLPM) air | 5 GPM (20 LPM) water. | Dwyer

Rotatable scale flowmeter, max. flow rate 30 SCFM (900 SLPM) air, 5 GPM (20 LPM) water.

Brand: DwyerSKU: RSF015V

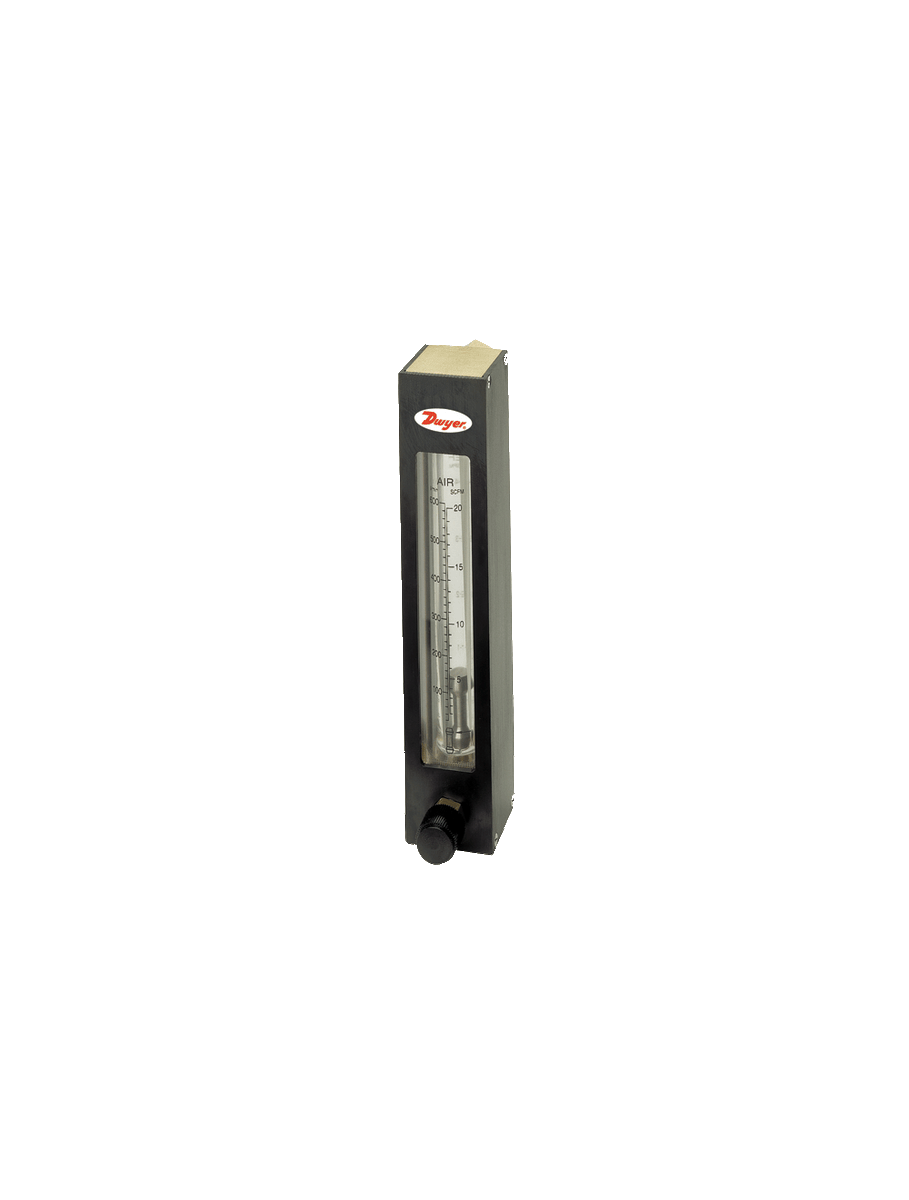

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSF015V

Jump to: Overview & Specifications Reviews

Overview Details for RSF015V

See catalog product page for full listing

Rotatable scale flowmeter | max. flow rate 30 SCFM (900 SLPM) air | 5 GPM (20 LPM) water.

Series RSF Rotatable Scale Flowmeters

Dual, Rotatable Direct Reading Scales for Air and Water

The Series RSF Rotatable Scale Flowmeters are ideal for the direct flow measurement of air, water, and other commonly used gases. These flowmeters are designed with direct read scales with no need for correlation charts and graduations are marked on a rotating, polycarbonate tube shield. They feature borosilicate glass tubes with brass and SS metering valve options.

Calibration Options are available in the Accessory tab. For PTFE Models contact the factory.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Water and air pollution analysis equipment
Water and air pollution analysis systems

Reflective lens background and 1.5 X magnification lens reduces parallax and eye fatigue saving time and allowing for a more accurate reading
Long operating life with thick polycarbonate front shield that protects tube from breakage and serves as a magnifying lens to enhance reading resolution
Increased protection with included safety blow-out back panel for added safety in the event of breakage

Specifications

Series: RSF Rotatable Scale Flowmeters
Category/Type: Flow
Type: Flowmeters
Series: RSF Rotatable Scale Flowmeters
Service: Compatible gases or liquids.
Wetted Materials: Flowtube: Borosilicate glass; Float: Brass/SS models: 316 SS; PTFE models: PTFE; Float stops: Brass/SS models: 316 SS; PTFE models: PTFE; End fittings: Brass/SS models: Brass or 316 SS; PTFE models: PTFE; O-rings: Brass/SS models: Fluoroelastomer; PTFE models: PTFE.
Temperature Limits: 250°F (121°C). PTFE models: 150°F (65°C).
Pressure Limits: 150 psig (10.34 bar) @ 200°F (93°C); PTFE models: 100 psig (6.7 bar).
Accuracy: ±7% FS.
Repeatability: ±0.25% FS.
Scale: Direct Reading 127 mm scales for air and water.
Turn-Down Ratio: 10:1.
Connections: Two 3/8" female NPT.
Mounting: Vertical or panel mount.
Panel Cutout: Drill two 7/8" diameter holes 9.469" (240.5 mm) apart (for panel mount meters only).
Valve: 6-turn needle (standard on models indicating "with valve").
