RHP-2O1D | OSA mount 2% RH/temperature transmitter with 4-20 mA RH output and Pt100 RTD temperature output. | Dwyer

OSA mount 2% RH/temperature transmitter with 4-20 mA RH output and Pt100 RTD temperature output.

Brand: DwyerSKU: RHP-2O1D
Dwyer | RHP-2O1D

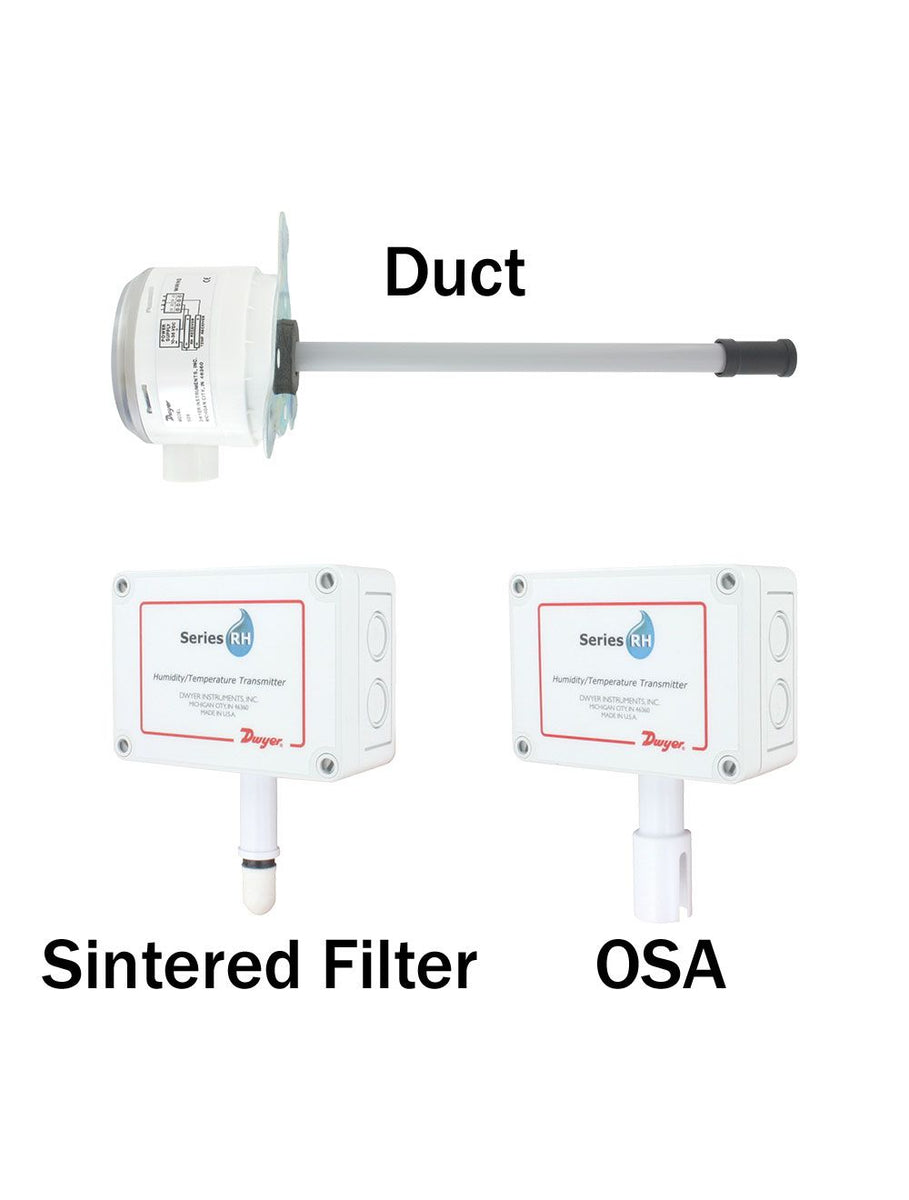

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RHP-2O1D

Overview Details for RHP-2O1D

See catalog product page for full listing

OSA mount 2% RH/temperature transmitter with 4-20 mA RH output and Pt100 RTD temperature output.

SERIES RHP HUMIDITY/TEMPERATURE TRANSMITTER

Passive Temperature Outputs, Sintered Filter Options

The Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. Featuring polymer capacitance humidity sensors, models are available in 2%, 3% or 5% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

NIST CALIBRATION available in Product Configurator.

Product Applications

  • Air economizers
  • Outdoor temperature and relative humidity reference
  • Pool room humidity monitoring
  • 2%, 3%, or 5% accuracy models
  • Optional LCD display on duct mount models
  • Radiation shield option for outdoor installation in direct sunlight

Specifications

Series
RHP HUMIDITY/TEMPERATURE TRANSMITTER
Category/Type
Air Quality
Type
Humidity / Temperature Transmitters
Series
RHP HUMIDITY/TEMPERATURE TRANSMITTER
Relative Humidity Range
0 to 100% RH.
Temperature Range
-40 to 140°F (-40 to 60°C).
Accuracy; RH
RHP-2XXX ±2% 10 to 90% RH @ 25°C;RHP-3XXX ±3% 20 to 80% RH @ 25°C;RHP-5XXX ±5% 20 to 80% RH @ 25°C.
Accuracy; Thermistor Temp Sensor
±0.2°C @ 25°C (±0.36°F @ 77°F).
Accuracy; RTD Temp Sensor
DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 32°F).
Accuracy; Solid State Band Gap
±0.9°F @ 77°F (±0.5°C @ 25°C).
Hysteresis
±1%.
Repeatability
±0.1% typical.
Temperature Limits
-40 to 140°F (-40 to 60°C).
Storage Temperature
-40 to 176°F (-40 to 80°C).
Compensated Temperature Range
-4 to 140°F (-20 to 60°C).
Power Requirements
4-20 mA loop powered models: 10-35 VDC; 0-5/10 V outputmodels: 15-35 VDC or 15-29 VAC.
Output Signal (Model Dependent)
4-20 mA; 0-5/10V @ 5 mA max.
Response Time
15 s.
Electrical Connections
Removable screw terminal block.
Conduit Connection
Duct Mount: 1/2" NPS; OSA: 1/2" (22.3 mm).
Drift
<1% RH/year.
RH Sensor
Capacitance polymer.
Temperature Sensor
>Types 1; 2; 3: Solid state band gap;Curves A;B;C; Thermistor; Curves D;E; Platinum RTD DIN 385. (See R-T Lookup Table).
Enclosure Material
Duct mount sensor tube: PVC-UL 94 V-0; Duct mount sensorcap: Polycarbonate ABS blend-greater than UL 94 V-0; Duct mount electronicshousing and cover: Makrolon® polycarbonate-UL 94V-HB; OSA: Polycarbonate.
Enclosure Rating
Duct mount: NEMA 4X (IP66) for housing only; OSA: NEMA 4X (IP66).
Display
Duct Mount only; optional 2-line alpha numeric; 8 characters/line.
Display Resolution
RH: 0.1%; 0.1°F (0.1°C).
Weight
Duct Mount: .616 lb (.3 kg) OSA: 1 lb (.45 kg).
Agency Approvals
CE.
