PTGD-AA04A | Differential piston gage | in-line connections | range 0-20 psid. | Dwyer

Differential piston gage, in-line connections, range 0-20 psid.

Brand: DwyerSKU: PTGD-AA04A

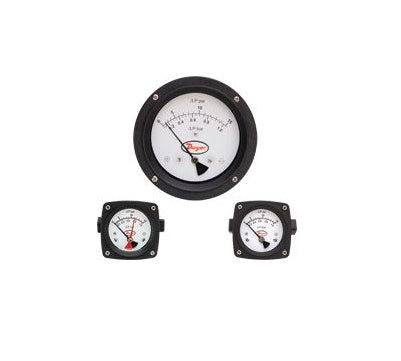

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PTGD-AA04A

Jump to: Overview & Specifications Reviews

Overview Details for PTGD-AA04A

See catalog product page for full listing

Differential piston gage | in-line connections | range 0-20 psid.

SERIES PTGD DIFFERENTIAL PRESSURE PISTON-TYPE GAGE

Excellent Accuracy and Over-Pressure Ratings

The Series PTGD Differential Pressure Piston-Type Gage can be used to measure the pressure drop across filters, strainers, pump performance testing, and heat exchanger pressure drop monitoring. Its simple, rugged design possesses weather and corrosion resistant gage front with a shatter resistant lens. The Series PTGD contains a piston-sensing element which provides different differential pressure ranges with full-scale accuracies of ±2%. Constructed with aluminum or 316SS and available with two 1/4" female NPT end connections, the Series PTGD provides over-range protection rated to 3000 psig (200 bar) or 6000 psig (400 bar) depending on model. Standard models come with in-line connections. Back or bottom connections are also available.

Calibration Option available under Accessories.

Product Applications

Filter pressure drop
Strainers
Pump performance testing
Heat exchanger pressure drop

Rugged, weather and corrosion proof design supports use in harsh environments
Over-protection range depending on model, up to 6000 psig (400 bar) allows high-pressure applications
Flexibility of connection selection fits the most sophisticated designs

Specifications

Series: PTGD DIFFERENTIAL PRESSURE PISTON-TYPE GAGE
Category/Type: Pressure
Type: Differential Pressure
Series: PTGD DIFFERENTIAL PRESSURE PISTON-TYPE GAGE
Service: Compatible gases and liquids.
Wetted Materials: Gage Body: Aluminum or 316 SS; Piston: Aluminum or 316 SS; Spring: 302 SS; Seals: Buna-N (standard); PTFE; Ceramic Magnet; Dial Case: Nylon 6 30% glass filled gage case.
Window: Acrylic.
Accuracy: ±2% FS.
Pressure Limits: 3000 psi (206 bar) for aluminum body; 6000 psi (413 bar) for SS body.
Size: 2.5" (63 mm) or 4.5" (115 mm).
Mounting Orientation: Mount in any position.
Process Connections: 1/4" female NPT end connections standard; 1/4" female NPT back or bottom connections available. All styles available with 1/4" BSP.
Weight: Aluminum: 2.5" 0.88 lb (399 g); 4.5" 1.35 lbs (612 g); Stainless Steel: 2.5" 1.75 lbs (794 g); 4.5" 2.3 lbs (1.04 kg).1-9/32
