PGV-SD32 | Plug valve | 3/8" fractional tube connection | 4.4 mm orifice. | Dwyer
Plug valve, 3/8" fractional tube connection, 4.4 mm orifice.

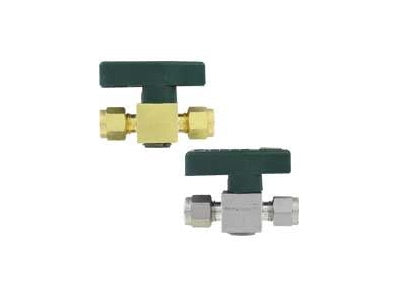

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PGV-SD32
Documents and manuals
Dwyer PGV-SD32 Documents
Overview
Details for PGV-SD32
See catalog product page for full listing
Plug valve | 3/8" fractional tube connection | 4.4 mm orifice.
Series PGV Compact Plug Valve
One Piece Body, Low Operating Torque
The Series PGV Compact Plug Valves are designed to stop forward flow of up to 3000 psig with ease. The combination of 1/4 turn operation and low operating torque allows for quick opening and closing providing positive shut off to instrumentation and process systems. The PGV series comes in either fractional tube fitting or female NPT connections. Available in either 316 stainless steel or brass, the one-piece body makes this valve an economical choice for your application.
California Residents: Click Here for Proposition 65 WARNING.
Specifications
- Series
- PGV Compact Plug Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Globe
- Series
- PGV Compact Plug Valve
- Service
- Gases and liquids compatible with wetted materials.
- Body
- 1-piece.
- Wetted Materials
- Body: 316 stainless steel or brass; O-Rings: PTFE coated fluorocarbon FKM; Plug: PTFE coated 316 SS or PTFE coated brass.
- Pressure Limits
- Stainless Steel: 3000 psig (207 bar). Brass: 3000 psig (207 bar): 2.3 mm or 4.4 mm orifice; 2000 psig (138 bar): 7.2 mm orifice.
- Temperature Limit
- -10 to 400°F (-23 to 240°C).
- Connections
- Female NPT; fractional tube fitting.
