PFG2-02 | Process filter gage | range 0-5 psid | green zone 0-2.5 psid | yellow zone 2.5-3.75 psid | red zone 3.75-5 psid. | Dwyer

Process filter gage, range 0-5 psid, green zone 0-2.5 psid, yellow zone 2.5-3.75 psid, red zone 3.75-5 psid.

Brand: DwyerSKU: PFG2-02

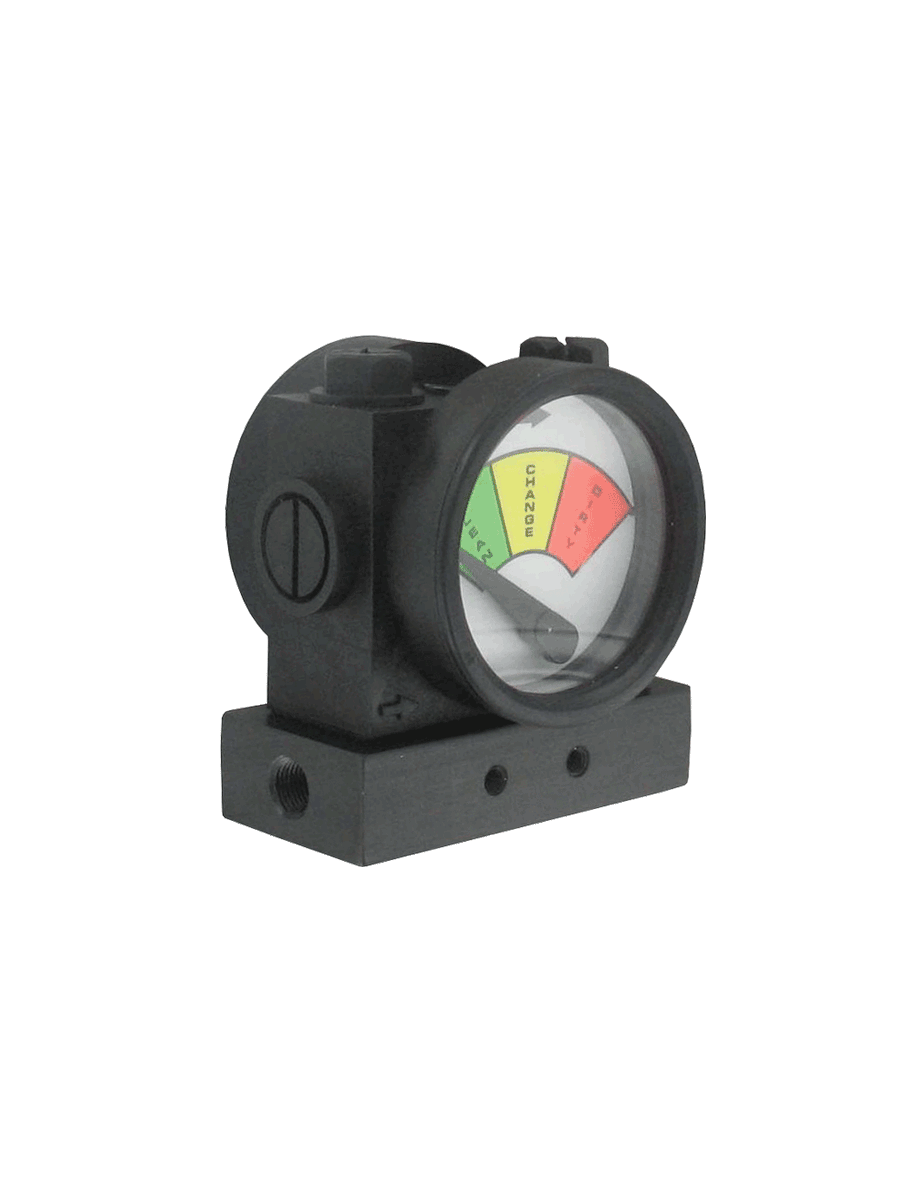

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PFG2-02

Jump to: Overview & Specifications Reviews

Overview Details for PFG2-02

See catalog product page for full listing

Process filter gage | range 0-5 psid | green zone 0-2.5 psid | yellow zone 2.5-3.75 psid | red zone 3.75-5 psid.

SERIES PFG2 PROCESS FILTER GAGE

Indicates Process Filter Status, In-Line or Bottom Connect Mounting

The Series PFG2 Process Filter Gage is designed for determining the state of an inline filter. The differential pressure indicator determines the pressure drop on either side of a filter through its 1/8" female NPT pressure connections, and relates the value to one of three zones: clean (green), change (yellow), or dirty (red). The Series PFG2 is perfectly suited for filter applications, line loss, valve drop, and many other differential pressure applications where a simple indicator is needed. The direction of process flow is indicated on the dial, with the arrow pointing to the low pressure port. The PFG2 can be connected in-line through the side process connections, but can also be directly mounted through the outlet/inlet.

Product Applications

Filter pressure drop
Filter status
Valve drop
Line loss

Simple easy to understand indicator means no guessing filter status
Removable mounting block provides direct mounting options especially in difficult filter access locations
Quick installation reduces time to operation

Specifications

Series: PFG2 PROCESS FILTER GAGE
Category/Type: Pressure
Type: Differential Pressure
Series: PFG2 PROCESS FILTER GAGE
Service: Liquids/gases compatible with SS; GFN; and fluoropolymer.
Wetted Materials: Aluminum; SS; glass filled nylon; and fluoropolymer.
Accuracy: ±5% F.S.
Temperature Limit: 200°F (93°C).
Pressure Limit: 300 psig (20.7 bar).
Materials: Body: Glass filled nylon; Mounting Block: Aluminum; Lens: Polyester; Elastomers: Fluoroelastomer.
Process Connection: 1/8" female NPT.
Mounting Orientation: Any orientation with 10-32 threaded holes 3/4" apart.
Weight: 9.6 oz (272.2 g).
