PBLT2-5-50 | Submersible level transmitter | range 5 psi (11.54 ft wc) [3.52 m wc] | 50 ft (15.2 m) ETFE cable. | Dwyer

Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 50 ft (15.2 m) ETFE cable.

Brand: DwyerSKU: PBLT2-5-50

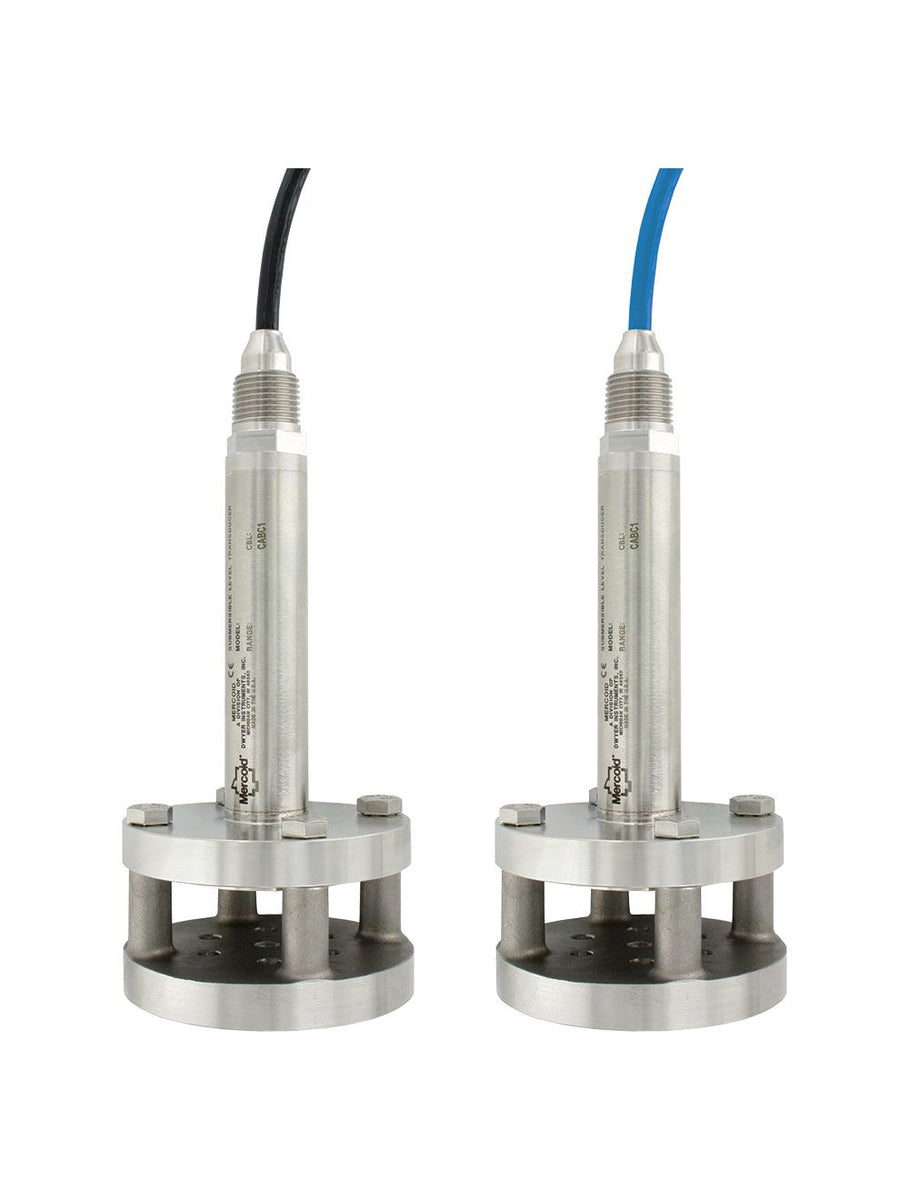

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PBLT2-5-50

Jump to: Overview & Specifications Reviews

Overview Details for PBLT2-5-50

See catalog product page for full listing

Submersible level transmitter | range 5 psi (11.54 ft wc) [3.52 m wc] | 50 ft (15.2 m) ETFE cable.

SERIES PBLT2 & PBLTX SUBMERSIBLE LEVEL TRANSMITTER

Perfect for Sludge and Slurries, Lightning Protected, Intrinsically Safe

PBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.

The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightningground strike transients (surge protection is not guaranteed and is not covered by warranty). The PBLTX is UL approved intrinsically safe for use in hazardous locations when used with proper barrier.

Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmosphericpressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

If you don't see the exact model you need below, please use our product configurator Series PBLT2 (Not UL Approved) or Series PBLTX (UL Approved).

Product Applications

Wastewater

Sludge pits, clarifiers, digesters

Alum tanks

Chemical storage tanks

Oil tanks

Lime slurry

Sumps

Reservoirs

Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids

Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models

Eliminates particulate or water droplets from entering the transducer using maintenance-free filter

Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier

Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility

Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation

Minimal downtime with standard 72 hour lead time

Specifications

Series: PBLT2 & PBLTX SUBMERSIBLE LEVEL TRANSMITTER
Category/Type: Level
Type: Level Transmitters
Series: PBLT2 & PBLTX SUBMERSIBLE LEVEL TRANSMITTER
Service: Compatible liquids.
Wetted Materials: Body: 316 SS; 316L SS; Cable: Polyether polyurethane or ETFE; Seals: Fluoroelastomer.
Accuracy: ±0.25% FS (includes linearity; hysteresis; and repeatability).
Temperature Limit: PBLT2: 0 to 200°F (-18 to 93°C); PBLTX: ETFE -4 to 176°F(-20 to 80°C); Polyurethane: -4 to 149°F (-20 to 65°C)
Compensated Temperature Range: PBLT2: 0 to 180°F (-18 to 82°C); PBLTX: 0 to 176°F (-18 to 80°C).
Thermal Effect: ±0.02% FS/°F.
Pressure Limit: 2X FS.
Power Requirement: PBLT2: 13 to 30 VDC; PBLTX: 10 to 28 VDC.
Output Signal: 4 to 20 mA DC; two wire.
Response Time: 50 msec.
Loop Resistance: 900 Ω.
Electrical Connection: Wire pigtail.
Mounting Orientation: Suspended in tank below level being measured.
Electrical Protection: PBLT2: Lightning and surge protection; PBLTX: none.
Weight: 4.3 lb (2.0 kg).
Compliance: PBLT2: CE; PBLTX: CE; cULus intrinsically safe for Class I;Div. 1; Groups A; B; C; D; Class II; Div. 1; Groups E; F; G; Class III; Div. 1; ATEX: II1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (According to control drawing001833-44)**.
: **Up to 275' (83.8 m) for ETFE cable; Up to 470' (143.3 m) for polyurethane cable.
