OP-G-3 | Orifice plate flowmeter | 2.5" line size | 1.750" bore | 0.70 Beta | water capacity: 320" d.p. W/C | 216.30 GPM flow; air capacity: 200" d.p. W/C | 543.99 SCFM @ 14.7 psia | 936.56 SCFM @ 20 psig | 1798.86 SCFM @ 100 psig; 4 lb. | Dwyer

Orifice plate flowmeter, 2.5" line size, 1.750" bore, 0.70 Beta, water capacity: 320" d.p. W/C, 216.30 GPM flow; air capacity: 200" d.p. W/C, 543.99 SCFM @ 14.7 psia, 936.56 SCFM @ 20 psig, 1798.86 SCFM @ 100 psig; 4 lb.

Brand: DwyerSKU: OP-G-3

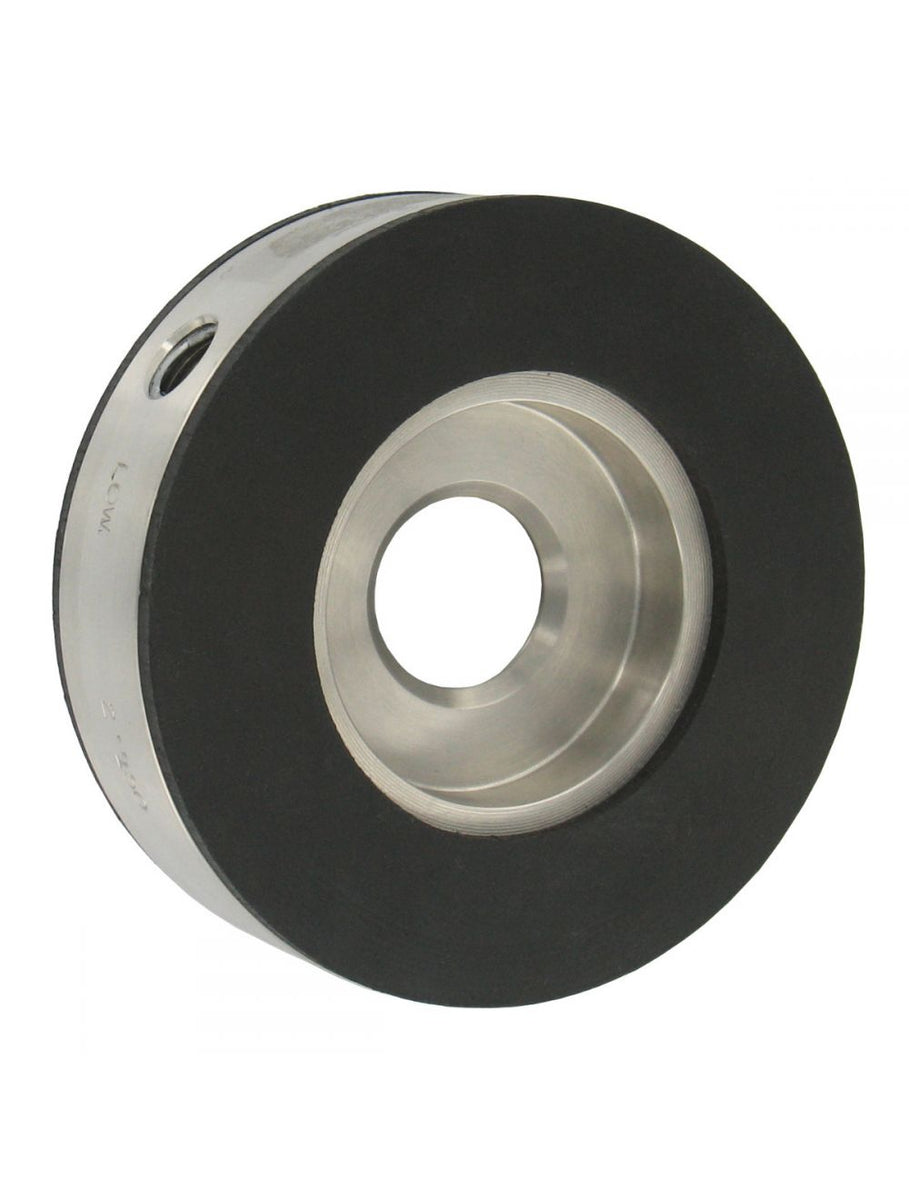

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to OP-G-3

Jump to: Overview & Specifications Reviews

Overview Details for OP-G-3

See catalog product page for full listing

Series OP Orifice Plate Flowmeter

Stainless Steel for Use with Compatible Liquids and Gases

The Series OP Orifice Plate Flowmeter is a complete orifice plate flow metering package. It incorporates a stainless steel orifice plate with a unique holder or carrier ring containing metering taps and integral gaskets. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. Installation is accomplished simply by slipping the unit between standard flanges (orifice flanges are not required). The Series OP is available in line sizes from 1/2" to 24" and can be used with compatible liquids and gases.

Product Applications

Fluid flow rates in building water lines
Boiler feedwater
Cooling water
Combustion or compressed air
Steam flow

Mounted with standard flanges
Standard "corner tap" configuration
Corrosion free material
Simplified installation
Built in metering taps (1/4" female NPT STD)
Proven through a wide range of applications for accuracy and energy efficiency
Assures long term reliability and accuracy

Specifications

Series: OP Orifice Plate Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: OP Orifice Plate Flowmeter
Service: Compatible liquids and gases.
Wetted Material: 304 SS; Buna-N gaskets.
Accuracy: ±0.6% full scale flow. (Beta= .2-.6) ±0.7% for Beta greater than .6.
Temperature Limits: -50 to 200°F (-45 to 93°C).
Pressure Limits: 150 psi max.
Head Loss: 1 - Beta ratio²; eg: 1 - 07² = 1 - 0.49 = 51% of the d.p.
Line Sizes: 1/2" to 24".
Process Connections: 1/4" female NPT.
Installation: Standard flange 125#/150# rating.
Pipe Requirements: General requirements 10 diameter upstream and 5 diameter downstream.
Weight: Varies with line size. See Catalog page.
