MVB-LM3 | Mini Brass Ball Valve | lever handle | 450 psi | 3/8" | Dwyer (OBSOLETE)

Mini Brass Ball Valve, lever handle, 450 psi, 3/8"

Brand: DwyerSKU: MVB-LM3

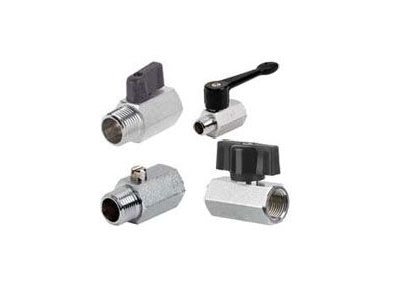

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVB-LM3

Jump to: Overview & Specifications Reviews

Overview Details for MVB-LM3

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS See catalog product page for full listing

Mini Brass Ball Valve | lever handle | 450 psi | 3/8"

SERIES MV MINI BRASS BALL VALVE

Economical, Compact Design

Series MV Mini Brass Ball Valves are ideal for use in small, confined spaces, where larger valves are of no use. Installation is made easy with a choice of female x female or male x female process connections. Pure PTFE ball seats provide broad media compatibility and bubble tight shutoff. Double seal system allows valve to be operated in both directions.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Gas or liquid flow control
Ideal for small, confined spaces

Bubble tight shut off
Economical
Valve can be operated in both directions

Specifications

Series: MV MINI BRASS BALL VALVE
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: MV MINI BRASS BALL VALVE
Service: Gases and liquids compatible with wetted materials. Not rated for steam use.
End Connections: NPT; see Catalog page.
Pressure Limits: -29" Hg to 450 psi (-736 mm Hg to 31 bar) (CWP).
Temperature Limits: -4 to 250ºF (-20 to 121ºC).
Wetted Materials: Valve Body: Chrome-plated brass;Valve Ball: Chrome-plated brass;O-Ring Stem Seal: Fluoroelastomer;Series MV Mini Brass Ball Valve Ball Seats: PTFE.
