MPR2-3 | Miniature pressure regulator | range 0-60 psi. | Dwyer

Miniature pressure regulator, range 0-60 psi.

Brand: DwyerSKU: MPR2-3

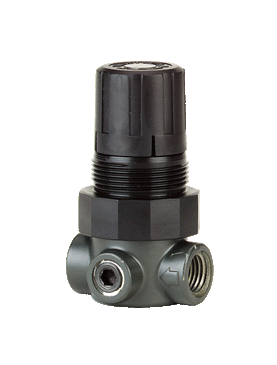

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MPR2-3

Jump to: Overview & Specifications Reviews

Overview Details for MPR2-3

See catalog product page for full listing

Miniature pressure regulator | range 0-60 psi.

Series MPR Miniature Pressure Regulator

Air or Water Regulator, Compact and Lightweight, Low Cost

The Series MPR Miniature Pressure Regulator is a compact unit that provides low cost, high performance pressure regulation of compressed air or air/water. The low torque, non-rising adjustment knob with locking capability provides easy and precise adjustment. Models for use with air are self relieving. Models for air/water are non-relieving.

Product Applications

Any industrial application that requires water or air pressure regulations and low cost

Low cost
Easy and precise adjustment
Compact

Specifications

Series: MPR Miniature Pressure Regulator
Category/Type: Valves
Type: Air Filters / Regulators
Series: MPR Miniature Pressure Regulator
Service: Compressed air or water.
Wetted Materials: Body: zinc; Bonnet: acetal; Diaphragm/Seals: nitrile; Internals: aluminum; brass; acetal; steel; music wire (MPR2 is plated with electroless nickel for water use).
Maximum Supply Pressure: MPR1: 250 psig (17.2 bar); MPR2: 150 psig (10.3 bar).
Temperature Limits: 0 to 150°F (-18 to 60°C).
Flow Capacity: 24 SCFM (48 m³/hr) at 100 psig (6.9 bar) supply; 60 psig (4.1 bar) output.
Process Connection: Inlet and Outlet: two 1/4" female NPT; two 1/8" female NPT gage ports.
Weight: 4 oz (113 g).
