MMA-24 | Flowmeter | range 2.5-25 LPM air. | Dwyer

Flowmeter, range 2.5-25 LPM air.

Brand: DwyerSKU: MMA-24

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MMA-24

Jump to: Overview & Specifications Reviews

Overview Details for MMA-24

See catalog product page for full listing

Flowmeter | range 2.5-25 LPM air.

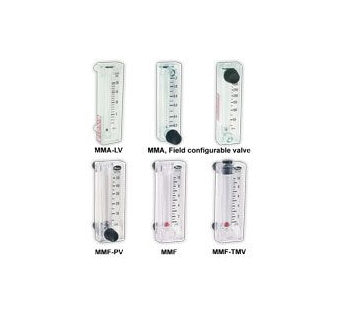

Series MM Mini-Master® Flowmeter

2" or 1-1/2" Scale, Configurable Valve Option

The Series MM Mini-Master® Flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. The Series MMA is a 2" (51 mm) scale flowmeter that is user configurable with or without non-removable top or bottom front mounted metering valves. It is constructed from transparent nylon material providing high chemical resistance and is easily disassembled via the provided key for cleaning or reconfiguration. The Series MMF is a 1-1/2" (38 mm) scale compact flowmeter ideal for measuring small volume air. It features bezel type mounting that can be quickly installed from the front of the instrument panel.

Note: Only the MMA is available in the Product Configurator.

Product Applications

Medical equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Low installation costs with easy mounting
Long operation life with durable construction
Precision molding enables high repeatability
White back on the flow tube allows for better visibility of the float increasing reading accuracy
Side printed scale graduations allows for instantaneous flow reading saving time
Compact bodies require minimal panel space freeing valuable space

Specifications

Series: MM Mini-Master® Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: MM Mini-Master® Flowmeter
: MMA
Service: Compatible gases and liquids.
Wetted Materials: Body: Nylon 12; O-rings: Buna-N (optional materials available); Float: Black glass; K monel; stainless steel; tungsten carbide.
Temperature Limit: 130°F (54°C).
Pressure Limit: 100 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp.
Accuracy: ±4% FS.
Process Connection: 5/16" OD for push on rubber or plastic tubing with provided spring tubing clamp. Connect to rigid tubing with double compression fitting.
Weight: 1 oz (28.35 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: MMF
Service: Compatible gases and liquids.
Wetted Materials: Body: Styrene acrylonitrile; Float: SS; black glass; nylon; Valve: Polyurethane.
Temperature Limit: 125°F (51°C).
Pressure Limit: 50 psi (3.4 bar); Valve option: 10 psi (0.6 bar).
Accuracy: ±10% FS.
Process Connection: 1/4" OD for push on rubber or plastic tubing. Connect to rigid tubing with double compression fittings.
Weight: 0.5 oz (14.17 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
