Documents: MHS-5

Series MHS Catalog Page More Info

MHS-5 | Miniature high sensitivity pressure switch | min. set point 416" w.c. (1034 mbar) | max. set point 1664" w.c. (4137 mbar). | Dwyer

Miniature high sensitivity pressure switch, min. set point 416" w.c. (1034 mbar), max. set point 1664" w.c. (4137 mbar).

Brand: DwyerSKU: MHS-5

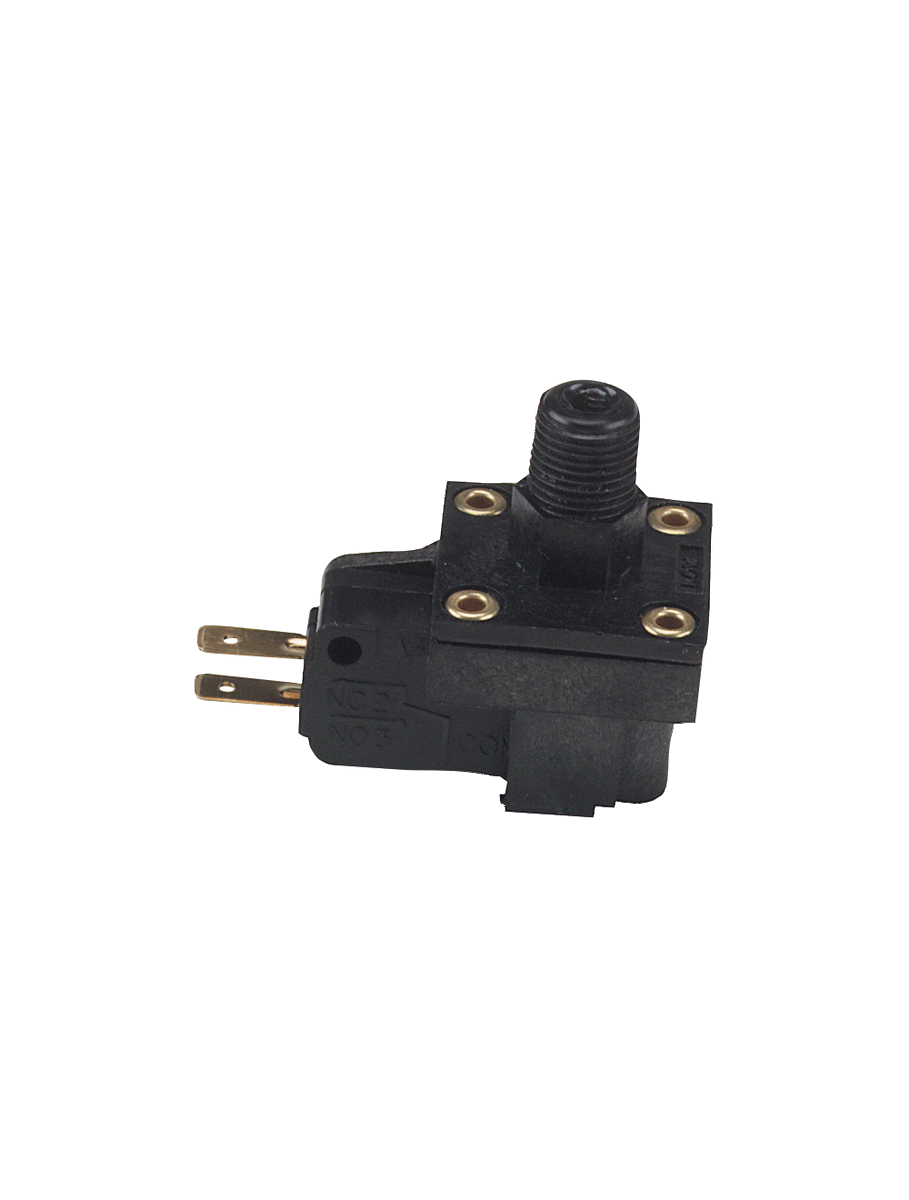

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MHS-5

Jump to: Overview & Specifications Reviews

Overview Details for MHS-5

See catalog product page for full listing

Miniature high sensitivity pressure switch | min. set point 416" w.c. (1034 mbar) | max. set point 1664" w.c. (4137 mbar).

SERIES MHS MINIATURE HIGH SENSITIVITY PRESSURE SWITCH

SPDT N/O or N/C Switch, Adjustable Set Points from 3 in. H20 to 60 PSI

The Series MHS Miniature High Sensitivity Pressure Switch offers a wide range of field adjustable pressure set point options. The compact switch can be used with air orother compatible fluids. Ideal application is for turning pumps and compressors on and off when levelschange. The Series MHS models offer a variety of electrical ratings to suit application needs. The switch is easy to install and easy to adjust, with a long mechanical life of over 10 million cycles.

NOTE: 50 PIECE MINIMUM ORDER.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: MHS MINIATURE HIGH SENSITIVITY PRESSURE SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: MHS MINIATURE HIGH SENSITIVITY PRESSURE SWITCH
Service: Air or compatible fluids.
Wetted Materials: Housing: polycarbonate; Diaphragm: polyurethane.
Temperature Limits: 40 to 150°F (4 to 66°C).
Pressure Limits: Up to maximum range.
Repeatability: ±20%.
Switch Type: SPDT normally open or normally closed.
Electrical Rating: MHS-1: 3A; MHS-2: 10A; MHS-3; -4; -5: 15A; 125/250 VAC.
Contacts: Silver with brass terminals.
Electrical Connections: Terminals 0.187" x 0.20" spade for use with quick disconnects.
Process Connections: All models 1/8" NPT port.
Mounting: Use #2 screws through eyelets.
Weight: 0.71 oz (20 g).
Agency Approvals: cUL; UL.
