MHS-3 | Miniature high sensitivity pressure switch | min. set point 28" w.c. (69 mbar) | max. set point 111" w.c. (276 mbar). | Dwyer
Miniature high sensitivity pressure switch, min. set point 28" w.c. (69 mbar), max. set point 111" w.c. (276 mbar).
Documents and manuals
Dwyer MHS-3 Documents
Overview
Details for MHS-3
Miniature high sensitivity pressure switch | min. set point 28" w.c. (69 mbar) | max. set point 111" w.c. (276 mbar).

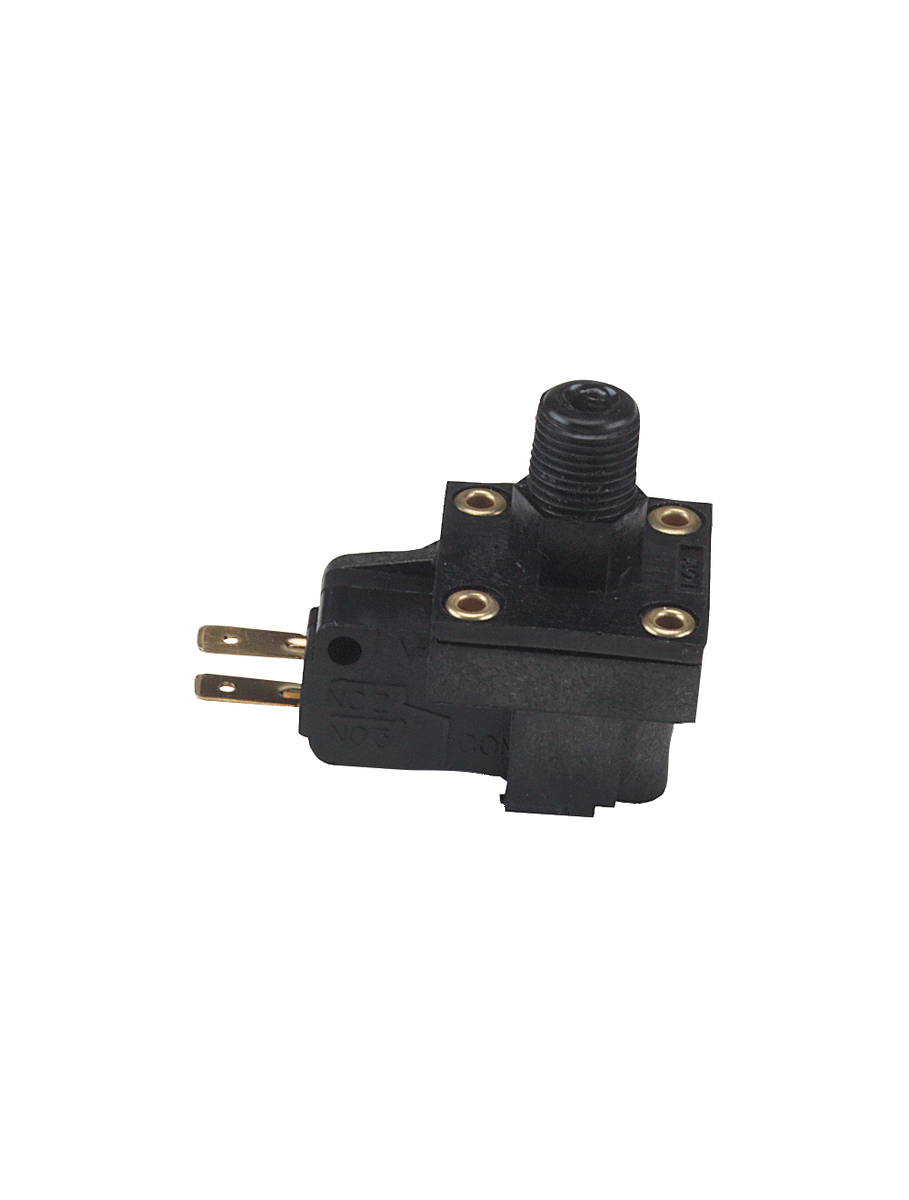

SERIES MHS MINIATURE HIGH SENSITIVITY PRESSURE SWITCH
The Series MHS Miniature High Sensitivity Pressure Switch offers a wide range of field adjustable pressure set point options. The compact switch can be used with air orother compatible fluids. Ideal application is for turning pumps and compressors on and off when levelschange. The Series MHS models offer a variety of electrical ratings to suit application needs. The switch is easy to install and easy to adjust, with a long mechanical life of over 10 million cycles.
NOTE: 50 PIECE MINIMUM ORDER.
Specifications
- Series
- MHS MINIATURE HIGH SENSITIVITY PRESSURE SWITCH
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- MHS MINIATURE HIGH SENSITIVITY PRESSURE SWITCH
- Service
- Air or compatible fluids.
- Wetted Materials
- Housing: polycarbonate; Diaphragm: polyurethane.
- Temperature Limits
- 40 to 150°F (4 to 66°C).
- Pressure Limits
- Up to maximum range.
- Repeatability
- ±20%.
- Switch Type
- SPDT normally open or normally closed.
- Electrical Rating
- MHS-1: 3A; MHS-2: 10A; MHS-3; -4; -5: 15A; 125/250 VAC.
- Contacts
- Silver with brass terminals.
- Electrical Connections
- Terminals 0.187" x 0.20" spade for use with quick disconnects.
- Process Connections
- All models 1/8" NPT port.
- Mounting
- Use #2 screws through eyelets.
- Weight
- 0.71 oz (20 g).
- Agency Approvals
- cUL; UL.
