MFS-11 | Magnetic flow sensor | range 0.25 to 5.3 GPM (1 to 20 LPM) | 1/4 I.D. | 1/2" NPT process connection | frequency output signal. | Dwyer

Magnetic flow sensor, range 0.25 to 5.3 GPM (1 to 20 LPM), 1/4 I.D., 1/2" NPT process connection, frequency output signal.

Dwyer | MFS-11

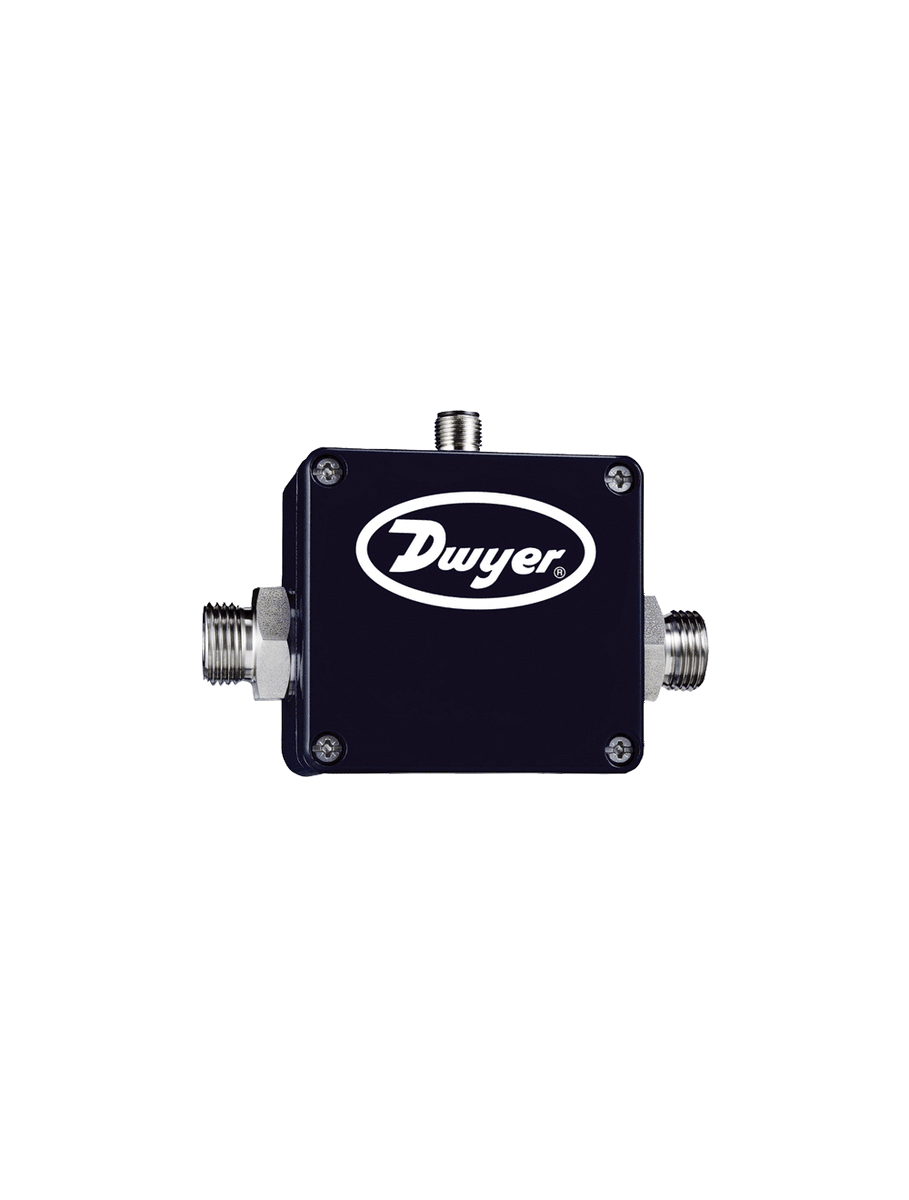

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MFS-11

Documents and manuals

Overview

Details for MFS-11

See catalog product page for full listing

Magnetic flow sensor | range 0.25 to 5.3 GPM (1 to 20 LPM) | 1/4 I.D. | 1/2" NPT process connection | frequency output signal.

Series MFS Magnetic Inductive Flow Sensor

No Moving Parts, Frequency and 4 to 20 mA Output, Maintenance-Free

The Series MFS Magnetic Inductive Flow Sensor is a compact, low cost alternative topaddle wheel sensors. Unlike sensors with moving parts, the MFS can be applied inapplications dealing with contaminated media. This series provides a reliable measuringtechnique, an obstruction free pipe cross-section, as well as a quick response time, makingthis series ideal for interference free operation. Any change in temperature, density,viscosity, concentration or electrical conductivity of the liquid, does not affect the outputsignal of this Magnetic Inductive Flow Sensor. This, in addition to its long-life cycle, makesthis series perfect for accurate reversible gauging of volume flow of conductive liquids inclosed piping.

Principles of Operation
The measuring pipe is in a magnetic field. If an electrically conductive medium witha certain flow passes through the pipe, it passes at a right-angle to the magneticfield, creating a voltage which is proportional to the average flow velocity and pickedup by two electrodes within the MFS. A frequency output signal is obtained that isproportional to the flow (analog output option available).

Product Applications

  • Contaminated liquid flow monitoring
  • Flow of conductive liquids
  • Water & wastewater treatment
  • Industrial systems
  • Irrigation applications
  • Long life cycle with no moving parts to wear or break
  • Can be applied in applications dealing with contaminated media with no mechanicalcomponent in the flow
  • Obstruction free pipe cross-section yields low pressure drop
  • Unaffected by change in temperature, density, viscosity or concentration

Specifications

Series
MFS Magnetic Inductive Flow Sensor
Category/Type
Flow
Type
Flow Transmitters
Series
MFS Magnetic Inductive Flow Sensor
Service
Water and other conductive liquids.
Wetted Materials
Electrodes: 316 TI SS;Process Connections: 316 TI SS;Measuring Pipe: PEEK-GF30;Gasket: EPDM.
Accuracy
±2% of reading.
Repeatability
1%.
Temperature Limits
Process: 32 to 194°F (0 to 90°C);Ambient: 41 to 158°F (5 to 70°C).
Pressure Limits
232 psi (16 bar).
Response Time
< 500 ms.
Power Requirements
24 VDC ±10%.
Output
Frequency: Square-wave; NPN;Analog: 4 to 20 mA.
Loop Resistance
250 Ω.
Current Consumption
Max 80 mA.
Minimum Conductivity of Medium
50 µS/cm.
Flow Indication
LED green; flow proportional blinking.
Enclosure Rating
NEMA 4 (IP65).
Process Connection
See model chart on catalog page.
Electrical Connection
Plug connector M12x1.
Weight
MFS-1X: 1.5 lb (0.68 kg);MFS-2X: 1.7 lb (0.77 kg);MFS-3X: 1.9 lb (0.87 kg).
Agency Approval
CE.
